B3U Series

Catalog

TACTILE SWITCH, SIDE ACTUATED, SMD

Part	Mechanical Life	Switch Travel	Actuator Orientation	Ingress Protection	Circuit	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Outline [x]	Outline [y]	Actuator Type	Operating Force	Switch Function	Illumination	Termination Style	Contact Rating @ Voltage	Features

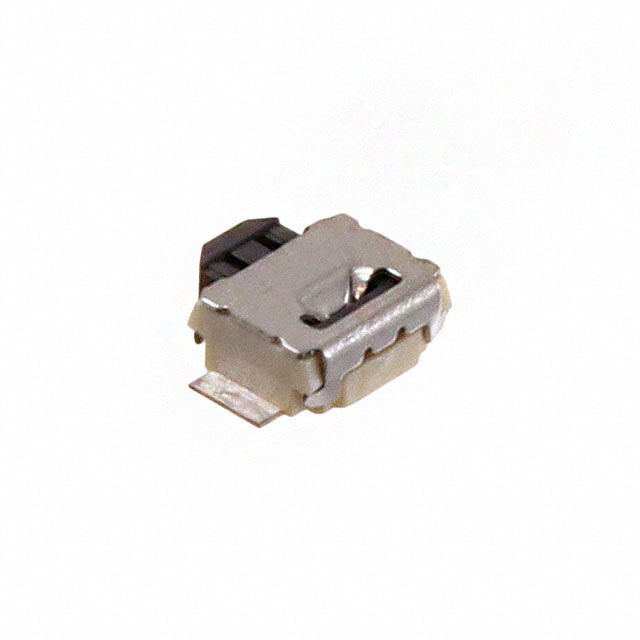

Omron Electronics Inc-EMC Div B3U-3000P-B	100000 Cycles	0.2 mm	Side Actuated	Dust Proof	SPST-NO	-25 °C	70 °C	Right Angle Surface Mount	4 mm	2.5 mm	Rectangular Button	162 gf	Off-Mom	Non-Illuminated	SMD (SMT) Tab	0.05 A 12 VDC
Omron Electronics Inc-EMC Div B3U-1000P-B	200000 Cycles	0.15 mm	Top Actuated	Dust Proof	SPST-NO	-25 °C	70 °C	Surface Mount	3 mm	2.5 mm	Standard	153 gf	Off-Mom	Non-Illuminated	SMD (SMT) Tab	0.05 A 12 VDC

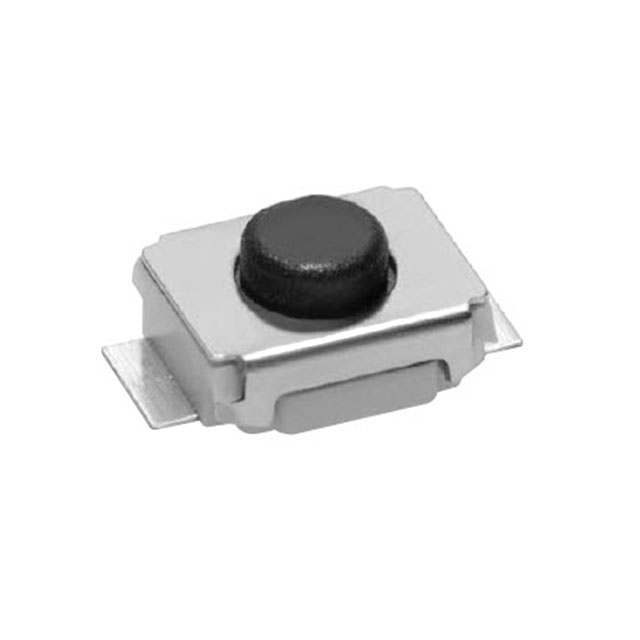

Omron Electronics Inc-EMC Div B3U-1100P	200000 Cycles	0.15 mm	Top Actuated	Dust Proof	SPST-NO	-25 °C	70 °C	Surface Mount	3 mm	2.5 mm	Standard	153 gf	Off-Mom	Non-Illuminated	SMD (SMT) Tab	0.05 A 12 VDC	Grounding Pin
Omron Electronics Inc-EMC Div B3U-3100P-B	100000 Cycles	0.2 mm	Side Actuated	Dust Proof	SPST-NO	-25 °C	70 °C	Right Angle Surface Mount	4 mm	2.5 mm	Rectangular Button	162 gf	Off-Mom	Non-Illuminated	SMD (SMT) Tab	0.05 A 12 VDC	Grounding Pin
