337-009 Series
Manufacturer: EDAC Inc.
Beta
⌘K

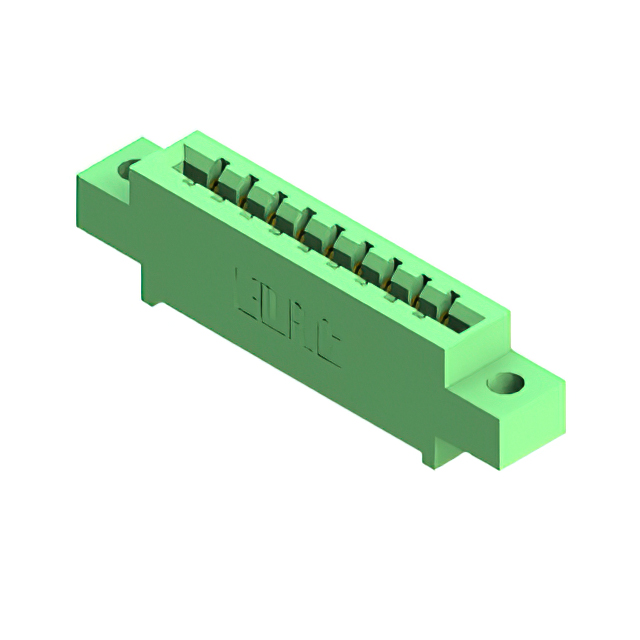

CONN EDGE SGL FMALE 9POS 0.156
| Part | Termination Rows | Material - Insulation | Read Out | Number of Positions | Number of Rows | Contact Type | Pitch | Pitch | Contact Material | Mounting Type | Gender | Number of Positions/Bay/Row | Termination | Contact Finish Thickness | Contact Finish Thickness | Card Thickness [Max] | Card Thickness [Min] | Contact Finish | Color | Operating Temperature [Min] | Operating Temperature [Max] | Card Type | Flange Feature | Features | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 1 | Polyester Thermoplastic | Single | 9 | 1 | Cantilever | 3.96 mm | 0.156 in | Copper Alloy | Through Hole | Female | 9 | Wire Wrap | 0.25 Ám | 10 Áin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | Green | -40 C | 105 ░C | Non Specified - Single Edge | M3 Threaded Insert Top Mount Opening | |||
 EDAC Inc. | 1 | Polyester Thermoplastic | Single | 9 | 1 | Cantilever | 3.96 mm | 0.156 in | Copper Alloy | Right Angle Through Hole | Female | 9 | Wire Wrap | 0.25 Ám | 10 Áin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | Green | -40 C | 105 ░C | Non Specified - Single Edge | Flush Mount M3 Threaded Insert Top Opening | |||
 EDAC Inc. | 1 | Polyester Thermoplastic | Single | 9 | 1 | Cantilever | 3.96 mm | 0.156 in | Copper Alloy | Through Hole | Female | 9 | Wire Wrap | 0.25 Ám | 10 Áin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | Green | -40 C | 105 ░C | Non Specified - Single Edge | 4-40 Threaded Insert Top Mount Opening | |||
 EDAC Inc. | 1 | Polyester Thermoplastic | Single | 9 | 1 | Cantilever | 3.96 mm | 0.156 in | Copper Alloy | Through Hole | Female | 9 | Solder | 0.25 Ám | 10 Áin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | Green | -40 C | 105 ░C | Non Specified - Single Edge | 4-40 Flush Mount Threaded Insert Top Opening | Card Guides | ||
 EDAC Inc. | 1 | Polyester Thermoplastic | Single | 9 | 1 | Cantilever | 3.96 mm | 0.156 in | Copper Alloy | Through Hole | Female | 9 | Solder | 0.25 Ám | 10 Áin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | Green | -40 C | 105 ░C | Non Specified - Single Edge | 4-40 Threaded Insert Top Mount Opening | Card Guides | ||
 EDAC Inc. | 1 | Polyester Thermoplastic | Single | 9 | 1 | Cantilever | 3.96 mm | 0.156 in | Copper Alloy | Through Hole | Female | 9 | Solder | 0.25 Ám | 10 Áin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | Green | -40 C | 105 ░C | Non Specified - Single Edge | M3 Threaded Insert Top Mount Opening | |||
 EDAC Inc. | 1 | Polyester Thermoplastic | Single | 9 | 1 | Cantilever | 3.96 mm | 0.156 in | Copper Alloy | Right Angle Through Hole | Female | 9 | Wire Wrap | 0.25 Ám | 10 Áin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | Green | -40 C | 105 ░C | Non Specified - Single Edge | 4-40 Threaded Insert Top Mount Opening | |||
 EDAC Inc. | 1 | Polyester Thermoplastic | Single | 9 | 1 | Cantilever | 3.96 mm | 0.156 in | Copper Alloy | Through Hole | Female | 9 | Wire Wrap | 0.25 Ám | 10 Áin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | Green | -40 C | 105 ░C | Non Specified - Single Edge | 4-40 Flush Mount Threaded Insert Top Opening | |||
 EDAC Inc. | 1 | Polyester Thermoplastic | Single | 9 | 1 | Cantilever | 3.96 mm | 0.156 in | Copper Alloy | Through Hole | Female | 9 | Solder | 0.25 Ám | 10 Áin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | Green | -40 C | 105 ░C | Non Specified - Single Edge | Flush Mount Side Opening Unthreaded | 0.128 " | 3.25 mm | |
 EDAC Inc. | 1 | Polyester Thermoplastic | Single | 9 | 1 | Cantilever | 3.96 mm | 0.156 in | Copper Alloy | Through Hole | Female | 9 | Solder | 0.25 Ám | 10 Áin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | Green | -40 C | 105 ░C | Non Specified - Single Edge | 0.156 " | 3.96 mm |
