GBC12S Series

Catalog

CONN HEADER SMD 12POS 2.54MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish - Post	Current Rating (Amps)	Contact Material	Fastening Type	Material Flammability Rating	Number of Positions	Number of Positions Loaded	Termination	Contact Finish - Mating	Number of Rows	Pitch - Mating	Pitch - Mating	Contact Type	Insulation Height	Insulation Height	Mounting Type	Contact Length - Mating	Contact Length - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Shrouding	Contact Shape	Insulation Material	Style	Connector Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Color
Sullins Connector Solutions GBC12SFBN-M30	2.54 µm	100 µin	Tin	3 A	Phosphor Bronze	Push-Pull	UL94 V-0	12	All	Solder	Gold	1	0.1 "	2.54 mm	Male Pin	0.1 in	2.54 mm	Surface Mount	8.08 mm	0.318 in	150 °C	-65 ░C	Unshrouded	Square	Nylon 9T Polyamide (PA9T)	Board to Board Cable	Header Breakaway	0.25 µm	10 µin	Black
Sullins Connector Solutions GBC12SABN-M30	2.54 µm	100 µin	Tin	3 A	Phosphor Bronze	Push-Pull	UL94 V-0	12	All	Solder	Gold	1	0.1 "	2.54 mm	Male Pin	0.1 in	2.54 mm	Surface Mount	5.84 mm	0.23 in	150 °C	-65 ░C	Unshrouded	Square	Nylon 9T Polyamide (PA9T)	Board to Board Cable	Header Breakaway	0.25 µm	10 µin	Black

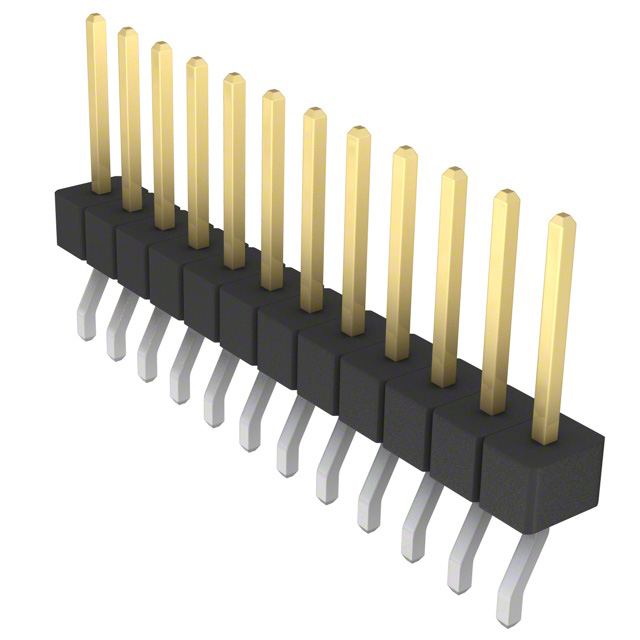

Sullins Connector Solutions GBC12SGSN-M89	2.54 µm	100 µin	Tin	3 A	Phosphor Bronze	Push-Pull	UL94 V-0	12	All	Solder	Gold	1	0.1 "	2.54 mm	Male Pin	0.14 in	3.56 mm	Right Angle Surface Mount	8.08 mm	0.318 in	150 °C	-65 ░C	Unshrouded	Square	Nylon 9T Polyamide (PA9T)	Board to Board Cable	Header Breakaway	0.25 µm	10 µin	Black
