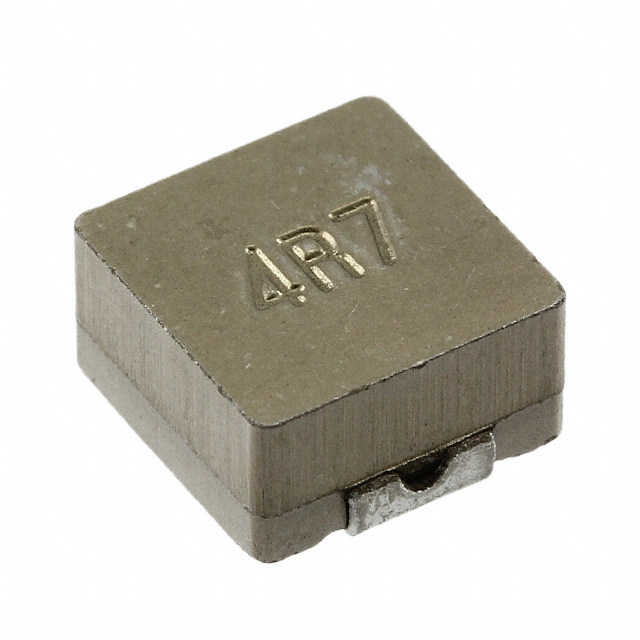

SRP6540 Series
Manufacturer: Bourns Inc.
Beta
⌘K
SURFACE MOUNT POWER INDUCTOR, SRP6540 SERIES, 10 H, 20%, SHIELDED, 0.0785 OHM, 4 A ROHS COMPLIANT: YES
| Part | Inductance Frequency - Test | Operating Temperature [Min] | Operating Temperature [Max] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Material - Core | Type | Current Rating (Amps) | Height - Seated (Max) | Height - Seated (Max) [Max] | Shielding | Package / Case | Mounting Type | DC Resistance (DCR) | Inductance | Tolerance | Current - Saturation (Isat) | DC Resistance (DCR) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | 100 kHz | -55 C | 125 °C | 0.256 " | 7.2 mm | 6.5 mm | 0.283 " | Iron Powder | Drum Core Wirewound | 4 A | 4 mm | 0.157 in | Shielded | Nonstandard | Surface Mount | 78.5 mOhm | 10 µH | 20 % | 4 A | |
 Bourns Inc. | 100 kHz | -55 C | 125 °C | 0.256 " | 7.2 mm | 6.5 mm | 0.283 " | Iron Powder | Drum Core Wirewound | 12 Amps | 4 mm | 0.157 in | Shielded | Nonstandard | Surface Mount | 1 µH | 20 % | 13.5 A | 7.2 mOhm | |
Bourns Inc. | 100 kHz | -55 C | 125 °C | 0.256 " | 7.2 mm | 6.5 mm | 0.283 " | Iron Powder | Drum Core Wirewound | 6 A | 4 mm | 0.157 in | Shielded | Nonstandard | Surface Mount | 4.7 ÁH | 20 % | 6.5 A | ||
Bourns Inc. | 100 kHz | -55 C | 125 °C | 0.256 " | 7.2 mm | 6.5 mm | 0.283 " | Iron Powder | Drum Core Wirewound | 1.6 A | 4 mm | 0.157 in | Shielded | Nonstandard | Surface Mount | 47 µH | 20 % | 1.6 A | 366 mOhm | |
 Bourns Inc. | 100 kHz | -55 C | 125 °C | 0.256 " | 7.2 mm | 6.5 mm | 0.283 " | Iron Powder | Drum Core Wirewound | 4.5 A | 4 mm | 0.157 in | Shielded | Nonstandard | Surface Mount | 8.2 µH | 20 % | 5 A | 50.5 mOhm |
