MAX40200 Series

Catalog

IC DIODE CURRENT SWITCH 4WLP

Part	Delay Time - OFF	Type	FET Type	Current - Supply	Delay Time - ON	Voltage - Supply [Max]	Voltage - Supply [Min]	Ratio - Input:Output [custom]	Mounting Type	Current - Output (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Supplier Device Package	Package / Case	Function	Supplied Contents	Secondary Attributes	Utilized IC / Part

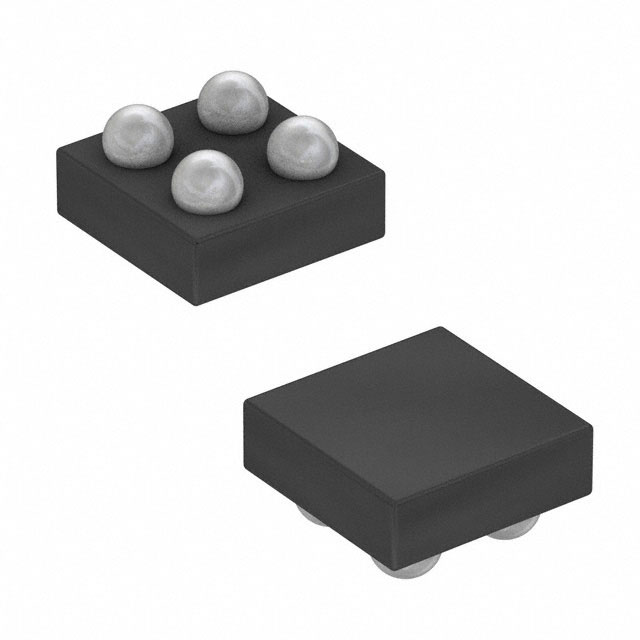

Analog Devices Inc./Maxim Integrated MAX40200ANS+T	1.6 ms	Source Selector Switch	P-Channel	7 µA	65 µs	5.5 V	1.5 V	1:1	Surface Mount	1.2 A	125 °C	-40 °C	Handheld/Mobile Devices	4-WLP (0.73x0.73)	4-XFBGA WLBGA
Analog Devices Inc./Maxim Integrated MAX40200ANS+	1.6 ms	Source Selector Switch	P-Channel	7 µA	65 µs	5.5 V	1.5 V	1:1	Surface Mount	1.2 A	125 °C	-40 °C	Handheld/Mobile Devices	4-WLP (0.73x0.73)	4-XFBGA WLBGA

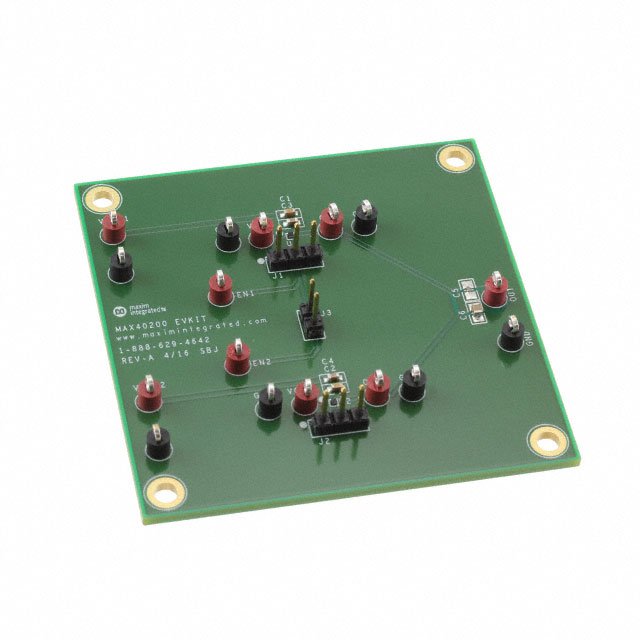

Analog Devices Inc./Maxim Integrated MAX40200EVKIT#		Power Management														ORing Controller / Ideal Diode	Board(s)	Temperature Protection	MAX40200
Analog Devices Inc./Maxim Integrated MAX40200AUK+	1.6 ms	Source Selector Switch	P-Channel	7 µA	65 µs	5.5 V	1.5 V	1:1	Surface Mount	1.2 A	125 °C	-40 °C	Handheld/Mobile Devices	SOT-23-5	SC-74A SOT-753
Analog Devices Inc./Maxim Integrated MAX40200AUK+T	1.6 ms	Source Selector Switch	P-Channel	7 µA	65 µs	5.5 V	1.5 V	1:1	Surface Mount	1.2 A	125 °C	-40 °C	Handheld/Mobile Devices	SOT-23-5	SC-74A SOT-753
