AR0820AT Series

CMOS Image Sensor, Digital, 8.3 MP, 1/2-inch, High-Resolution

Catalog

CMOS Image Sensor, Digital, 8.3 MP, 1/2-inch, High-Resolution

Part	Pixel Size [y]	Pixel Size [x]	Active Pixel Array [y]	Active Pixel Array [x]	Frames per Second	Type	Package / Case	Supplier Device Package	Interface	Sensor Type	Sensing Range	Utilized IC / Part	Supplied Contents	Sensitivity
ON Semiconductor AR0820ATSC18XMEA0-DPBR	2.1 µm	2.1 µm	2168	3848	40	CMOS	95-FBGA	95-IBGA (11x8)

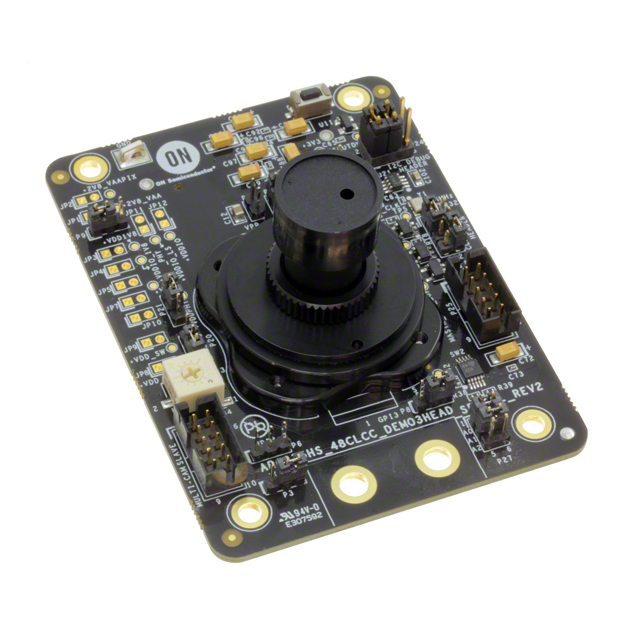

ON Semiconductor AR0820AT3B18XMEAH3-GEVB									I2C	CMOS Imaging Color (RGB)	8.3 Megapixel	AR0820AT	Board(s)	40 fps
ON Semiconductor AR0820ATSC18XMEA0-DPBR1	2.1 µm	2.1 µm	2168	3848	40	CMOS	95-FBGA	95-IBGA (11x8)
ON Semiconductor AR0820ATSP00XMEA0-TPBM	2.1 µm	2.1 µm	2168	3848	40	CMOS	95-FBGA	95-IBGA (11x8)
ON Semiconductor AR0820AT3P00XMEAH3-GEVB									I2C	CMOS Imaging Color (RGB)	8.3 Megapixel	AR0820AT	Board(s)	40 fps

CMOS Image Sensor, Digital, 8.3 MP, 1/2-inch, High-Resolution

• High Performance 2.1 µm Automotive Grade Backside Illuminated (BSI) Pixel with DR−Pix ™ Technology

• Advanced On−Sensor HDR Reconstruct with Flexible Exposure Ratio Control

• Fast Full Resolution Video Capture of 3840 x 2160 at up to 40 fps in 3−exposure HDR and 30 fps in 4−exposure HDR

• Line interleaved T1/T2/T3/T4 output

• Sensor Fault Detection for ASIL−B Compliance Support

• 2 x 2 In−pixel Binning Mode and Color Binning Mode

• Data Interface: 1.8 Gbps/Lane, 4−lane MIPI CSI−2

• Selectable Automatic or User Controlled Black Level Control

• Frame to Frame Switching Among up to 4 Contexts to Enable Multi−function Systems

• Multi−Camera Synchronization Support

• Multiple CFA Options including RGB, and RCCC, RCCB

• Pb−Free Device
