ACPL-5161 Series

Catalog

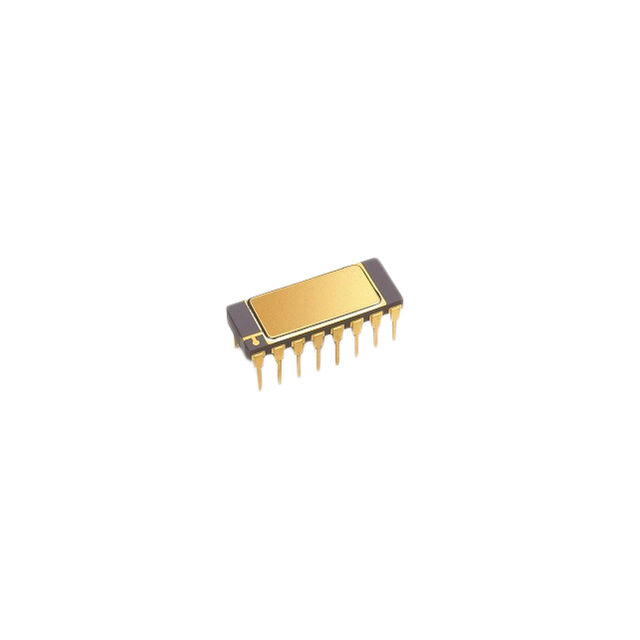

OPTOISO 1.5KV GATE DRVR 16SMDGW

Part	Operating Temperature [Min]	Operating Temperature [Max]	Current - Peak Output	Rise / Fall Time (Typ)	Rise / Fall Time (Typ)	Propagation Delay tpLH / tpHL (Max) [custom]	Propagation Delay tpLH / tpHL (Max) [custom]	Voltage - Isolation	Mounting Type	Supplier Device Package	Technology	Package / Case	Common Mode Transient Immunity (Min) [Min]	Current - Output High, Low [custom]	Current - Output High, Low [custom]	Voltage - Output Supply [Min]	Voltage - Output Supply [Max]	Number of Channels [custom]	Pulse Width Distortion (Max) [Max]	Package / Case [y]	Package / Case [x]
Broadcom Limited ACPL-5161-300	-55 C	125 °C	2.5 A	100 ns	100 ns	500 ns	500 ns	1.5 kV	Surface Mount	16-SMD Gull Wing	Optical Coupling	16-SMD Gull Wing	9 kV/µs	2 A	2 A	15 V	30 V	1	300 ns
Broadcom Limited ACPL-5161	-55 C	125 °C	2.5 A	100 ns	100 ns	500 ns	500 ns	1.5 kV	Through Hole	16-DIP	Optical Coupling	16-DIP	9 kV/µs	2 A	2 A	15 V	30 V	1	300 ns	7.9 mm	0.311 "
