RBEF0300 Series
Manufacturer: Vishay General Semiconductor - Diodes Division
Beta
⌘K

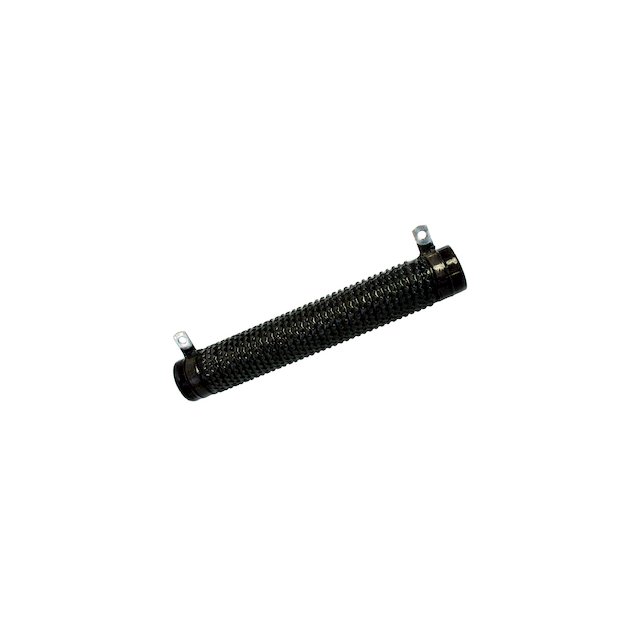

RES CHAS MNT 2 OHM 10% 300W
| Part | Package / Case | Operating Temperature [Max] | Operating Temperature [Min] | Tolerance | Coating, Housing Type | Composition | Lead Style | Size / Dimension [diameter] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [diameter] | Resistance | Power (Watts) | Features | Mounting Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Vishay General Semiconductor - Diodes Division | Radial Tubular | 415 °C | -55 °C | 10 % | Vitreous Enamel Coated | Wirewound | Solder Lugs | 28.58 mm | 215.9 mm | 8.5 in | 1.125 " | 2 Ohms | 300 W | Pulse Withstanding | Brackets (not included) |
Vishay General Semiconductor - Diodes Division | Radial Tubular | 415 °C | -55 °C | 10 % | Vitreous Enamel Coated | Wirewound | Solder Lugs | 28.58 mm | 215.9 mm | 8.5 in | 1.125 " | 18 Ohms | 300 W | Pulse Withstanding | Brackets (not included) |
Vishay General Semiconductor - Diodes Division | Radial Tubular | 415 °C | -55 °C | 10 % | Vitreous Enamel Coated | Wirewound | Solder Lugs | 28.58 mm | 215.9 mm | 8.5 in | 1.125 " | 75 Ohms | 300 W | Pulse Withstanding | Brackets (not included) |
Vishay General Semiconductor - Diodes Division | Radial Tubular | 415 °C | -55 °C | 10 % | Vitreous Enamel Coated | Wirewound | Solder Lugs | 28.58 mm | 215.9 mm | 8.5 in | 1.125 " | 3 Ohms | 300 W | Pulse Withstanding | Brackets (not included) |
Vishay General Semiconductor - Diodes Division | Radial Tubular | 415 °C | -55 °C | 10 % | Vitreous Enamel Coated | Wirewound | Solder Lugs | 28.58 mm | 215.9 mm | 8.5 in | 1.125 " | 410 mOhms | 300 W | Pulse Withstanding | Brackets (not included) |
Vishay General Semiconductor - Diodes Division | Radial Tubular | 415 °C | -55 °C | 10 % | Vitreous Enamel Coated | Wirewound | Solder Lugs | 28.58 mm | 215.9 mm | 8.5 in | 1.125 " | 160 mOhms | 300 W | Pulse Withstanding | Brackets (not included) |
Vishay General Semiconductor - Diodes Division | Radial Tubular | 415 °C | -55 °C | 10 % | Vitreous Enamel Coated | Wirewound | Solder Lugs | 28.58 mm | 215.9 mm | 8.5 in | 1.125 " | 200 mOhms | 300 W | Pulse Withstanding | Brackets (not included) |
 Vishay General Semiconductor - Diodes Division | Radial Tubular | 415 °C | -55 °C | 10 % | Vitreous Enamel Coated | Wirewound | Solder Lugs | 28.58 mm | 215.9 mm | 8.5 in | 1.125 " | 5 Ohms | 300 W | Pulse Withstanding | Brackets (not included) |
Vishay General Semiconductor - Diodes Division | Radial Tubular | 415 °C | -55 °C | 10 % | Vitreous Enamel Coated | Wirewound | Solder Lugs | 28.58 mm | 215.9 mm | 8.5 in | 1.125 " | 33 Ohms | 300 W | Pulse Withstanding | Brackets (not included) |
Vishay General Semiconductor - Diodes Division | Radial Tubular | 415 °C | -55 °C | 10 % | Vitreous Enamel Coated | Wirewound | Solder Lugs | 28.58 mm | 215.9 mm | 8.5 in | 1.125 " | 6.3 Ohms | 300 W | Pulse Withstanding | Brackets (not included) |
