M80-868 Series

Catalog

HEADER CONNECTOR,PCB MNT,RECEPT,16 CONTACTS,PIN,0.079 PITCH,R ANGLE PC TAIL TERMINAL,LOCKING ROHS COMPLIANT: NO

Part	Contact Finish Thickness - Post [custom]	Contact Finish Thickness - Post [custom]	Shrouding	Termination	Contact Material	Connector Type	Features	Number of Positions	Contact Finish - Post	Fastening Type	Contact Type	Insulation Material	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Row Spacing - Mating	Row Spacing - Mating	Number of Rows [custom]	Voltage Rating	Style	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]	Pitch - Mating	Pitch - Mating	Insulation Height [z]	Insulation Height [z]	Number of Positions Loaded	Contact Length - Post	Contact Length - Post	Contact Shape	Current Rating (Amps)	Contact Finish - Mating	Insulation Color	Mounting Type	Number of Positions [custom]
Harwin Inc. M80-8681622	118.1 µin	3 µm	Shrouded - 4 Wall	Solder	Phosphor Bronze	Header	Strain Relief Clips	16	Tin-Lead	Latch Holder	Male Pin	Polybutylene Terephthalate (PBT) Glass Filled	UL94 V-0	-55 C	125 °C	2 mm	0.079 in	2	120 VDC	Board to Board Cable	29.5 µin	0.75 µm	0.079 "	2 mm	0.235 in	5.97 mm	All	0.118 in	3 mm	Circular	2.2 A	Gold	Black	Right Angle Through Hole
Harwin Inc. M80-8683422	118.1 µin	3 µm	Shrouded - 4 Wall	Solder	Phosphor Bronze	Header	Strain Relief Clips		Tin-Lead	Latch Holder	Male Pin	Polybutylene Terephthalate (PBT) Glass Filled	UL94 V-0	-55 C	125 °C	2 mm	0.079 in	2	120 VDC	Board to Board Cable	29.5 µin	0.75 µm	0.079 "	2 mm	0.235 in	5.97 mm	All	0.118 in	3 mm	Circular	2.2 A	Gold	Black	Right Angle Through Hole	34
Harwin Inc. M80-8680822	118.1 µin	3 µm	Shrouded - 4 Wall	Solder	Phosphor Bronze	Header	Strain Relief Clips	8	Tin-Lead	Latch Holder	Male Pin	Polybutylene Terephthalate (PBT) Glass Filled	UL94 V-0	-55 C	125 °C	2 mm	0.079 in	2	120 VDC	Board to Board Cable	29.5 µin	0.75 µm	0.079 "	2 mm	0.235 in	5.97 mm	All	0.118 in	3 mm	Circular	2.2 A	Gold	Black	Right Angle Through Hole
Harwin Inc. M80-8684422	118.1 µin	3 µm	Shrouded - 4 Wall	Solder	Phosphor Bronze	Header	Strain Relief Clips	44	Tin-Lead	Latch Holder	Male Pin	Polybutylene Terephthalate (PBT) Glass Filled	UL94 V-0	-55 C	125 °C	2 mm	0.079 in	2	120 VDC	Board to Board Cable	29.5 µin	0.75 µm	0.079 "	2 mm	0.235 in	5.97 mm	All	0.118 in	3 mm	Circular	2.2 A	Gold	Black	Right Angle Through Hole

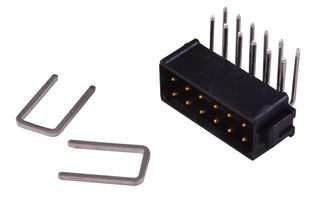

Harwin Inc. M80-8681222	118.1 µin	3 µm	Shrouded - 4 Wall	Solder	Phosphor Bronze	Header	Strain Relief Clips	12	Tin-Lead	Latch Holder	Male Pin	Polybutylene Terephthalate (PBT) Glass Filled	UL94 V-0	-55 C	125 °C	2 mm	0.079 in	2	120 VDC	Board to Board Cable	29.5 µin	0.75 µm	0.079 "	2 mm	0.235 in	5.97 mm	All	0.118 in	3 mm	Circular	2.2 A	Gold	Black	Right Angle Through Hole
Harwin Inc. M80-8682622	118.1 µin	3 µm	Shrouded - 4 Wall	Solder	Phosphor Bronze	Header	Strain Relief Clips	26	Tin-Lead	Latch Holder	Male Pin	Polybutylene Terephthalate (PBT) Glass Filled	UL94 V-0	-55 C	125 °C	2 mm	0.079 in	2	120 VDC	Board to Board Cable	29.5 µin	0.75 µm	0.079 "	2 mm	0.235 in	5.97 mm	All	0.118 in	3 mm	Circular	2.2 A	Gold	Black	Right Angle Through Hole
Harwin Inc. M80-8680622	118.1 µin	3 µm	Shrouded - 4 Wall	Solder	Phosphor Bronze	Header	Strain Relief Clips	6	Tin-Lead	Latch Holder	Male Pin	Polybutylene Terephthalate (PBT) Glass Filled	UL94 V-0	-55 C	125 °C	2 mm	0.079 in	2	120 VDC	Board to Board Cable	29.5 µin	0.75 µm	0.079 "	2 mm	0.235 in	5.97 mm	All	0.118 in	3 mm	Circular	2.2 A	Gold	Black	Right Angle Through Hole
Harwin Inc. M80-8681822	118.1 µin	3 µm	Shrouded - 4 Wall	Solder	Phosphor Bronze	Header	Strain Relief Clips	18	Tin-Lead	Latch Holder	Male Pin	Polybutylene Terephthalate (PBT) Glass Filled	UL94 V-0	-55 C	125 °C	2 mm	0.079 in	2	120 VDC	Board to Board Cable	29.5 µin	0.75 µm	0.079 "	2 mm	0.235 in	5.97 mm	All	0.118 in	3 mm	Circular	2.2 A	Gold	Black	Right Angle Through Hole
