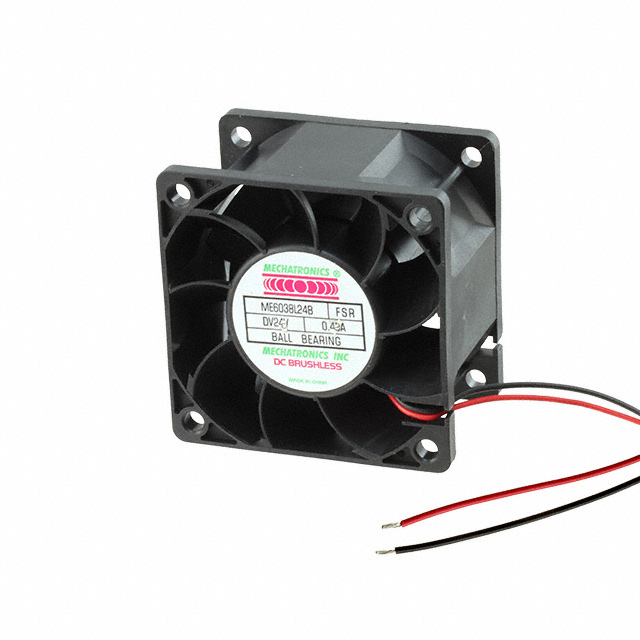

ME6038 Series

Catalog

FAN AXIAL 60X38MM 24VDC WIRE

Part	Material - Blade	Voltage - Rated	Bearing Type	Size / Dimension [z]	Size / Dimension [x]	Fan Type	Noise	Weight	Weight	RPM	Approval Agency	Air Flow	Air Flow	Termination	Static Pressure	Static Pressure	Features	Width [y]	Current Rating (Amps)	Voltage Range [Min]	Voltage Range [Max]
Mechatronics Fan Group ME6038X24B-FSR	Polybutylene Terephthalate (PBT)	12 VDC 24 VDC	Ball	60 mm	60 mm	Tubeaxial	63 dB	104.33 g	0.23 lb	9400 RPM	cUL UL	1.61 m³/min	57.5 CFM	2 Wire Leads	1.241 in H2O	309.1 Pa	Thermal Overload Protector (TOP)	38 mm

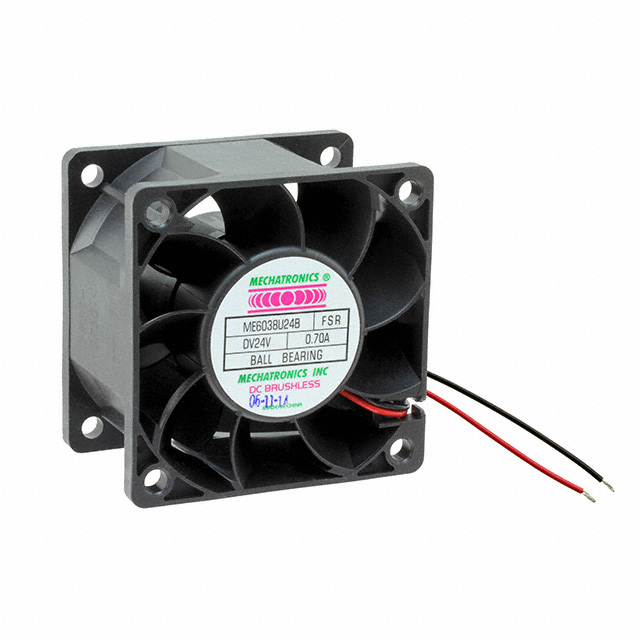

Mechatronics Fan Group ME6038U24B-FSR	Polybutylene Terephthalate (PBT)	12 VDC 24 VDC	Ball	60 mm	60 mm	Tubeaxial	65 dB	104.33 g	0.23 lb	10000 RPM	cUL UL	1.71 m³/min	61.1 CFM	2 Wire Leads	1.412 in H2O	351.7 Pa	Thermal Overload Protector (TOP)	38 mm
Mechatronics Fan Group ME6038H24B-FSR	Polybutylene Terephthalate (PBT)	12 VDC 24 VDC	Ball	60 mm	60 mm	Tubeaxial	58 dB(A)	104.33 g	0.23 lb	8000 RPM	cUL UL	1.32 m³/min	47.3 CFM	2 Wire Leads	0.93 in H2O	231.7 Pa	Thermal Overload Protector (TOP)	38 mm
Mechatronics Fan Group ME6038L24B-FSR	Polybutylene Terephthalate (PBT)	12 VDC 24 VDC	Ball	60 mm	60 mm	Tubeaxial	48.5 dB(A)	104.33 g	0.23 lb	6000 RPM	cUL UL	0.994 m³/min	35.5 CFM	2 Wire Leads	0.52 in H2O	129.5 Pa	Thermal Overload Protector (TOP)	38 mm
Mechatronics Fan Group ME6038E24B-FSR	Polybutylene Terephthalate (PBT)	12 VDC 24 VDC	Ball	60 mm	60 mm	Tubeaxial	60 dB(A)	104.33 g	0.23 lb	8800 RPM	cUL UL	1.51 m³/min	53.9 CFM	2 Wire Leads	1.09 in H2O	271.5 Pa	Thermal Overload Protector (TOP)	38 mm

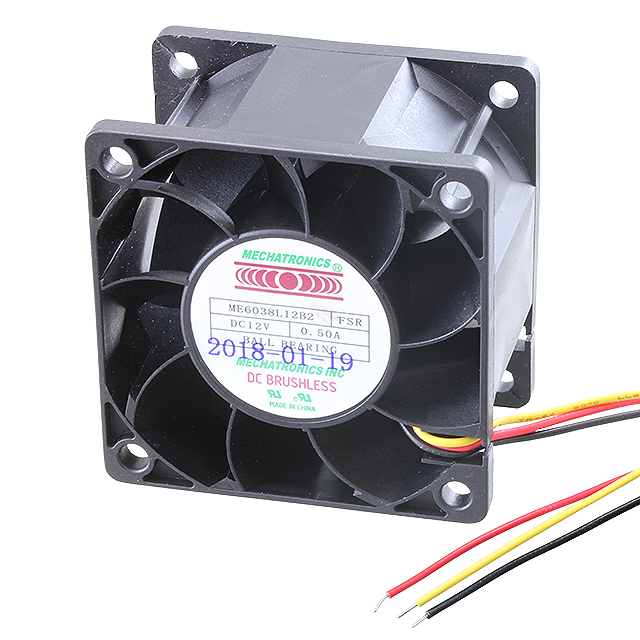

Mechatronics Fan Group ME6038L12B2-FSR	Polybutylene Terephthalate (PBT)	12 VDC	Ball	60 mm	60 mm	Tubeaxial	48.5 dB(A)	104.33 g	0.23 lb	6000 RPM	cUL UL	0.994 m³/min	35.5 CFM	3 Wire Leads	0.52 in H2O	129.5 Pa	Locked Rotor Sensor Thermal Overload Protector (TOP)	38 mm	0.5 A	7 V	13.2 VDC
Mechatronics Fan Group ME6038U24B1-FSR	Polybutylene Terephthalate (PBT)	12 VDC	Ball	60 mm	60 mm	Tubeaxial	65 dB	104.33 g	0.23 lb	10000 RPM	cUL UL	1.71 m³/min	61.1 CFM	3 Wire Leads	1.412 in H2O	351.7 Pa	Speed Sensor (Tach) Thermal Overload Protector (TOP)	38 mm

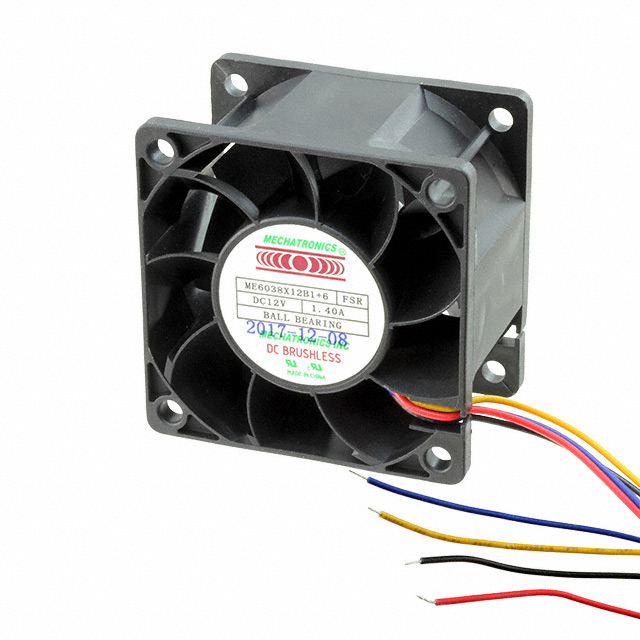

Mechatronics Fan Group ME6038X12B1+6-FSR	Polybutylene Terephthalate (PBT)	12 VDC	Ball	60 mm	60 mm	Tubeaxial	63 dB	104.33 g	0.23 lb	9400 RPM	cUL UL	1.61 m³/min	57.5 CFM	4 Wire Leads	1.241 in H2O	309.1 Pa	PWM Control Speed Sensor (Tach) Thermal Overload Protector (TOP)	38 mm	1.4 A	7 V	13.2 VDC
Mechatronics Fan Group ME6038M12B-FSR	Polybutylene Terephthalate (PBT)	12 VDC	Ball	60 mm	60 mm	Tubeaxial	53.2 dB(A)	104.33 g	0.23 lb	7000 RPM	cUL UL	1.16 mł/min	41.6 CFM	2 Wire Leads	0.71 in H2O	176.9 Pa	Thermal Overload Protector (TOP)	38 mm	0.67 A	7 V	13.2 VDC
