09400100 Series

Manufacturer: HARTING

Catalog

CONN HOOD TOP ENTRY SZ10B PG16

Part	Operating Temperature [Max]	Operating Temperature [Min]	Housing Color	Housing Finish	Connector Type	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Housing Material	Lock Location	Size	Thread Size	Style	Features

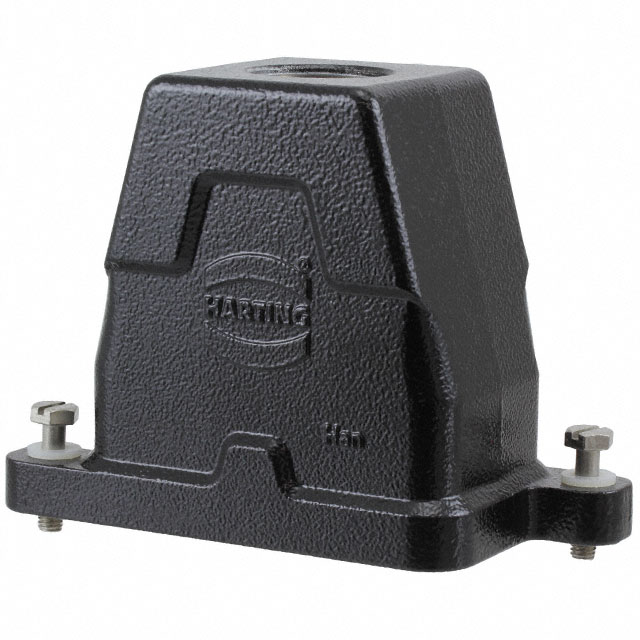

HARTING 09400100411	125 °C	-40 C	Black	Powder Coated	Hood	145 mm	5.709 "	2.283 in	100.5 mm	3.957 in	58 mm	Aluminum Die Cast	Screw Locks on Hood	10B	PG16	Top Entry

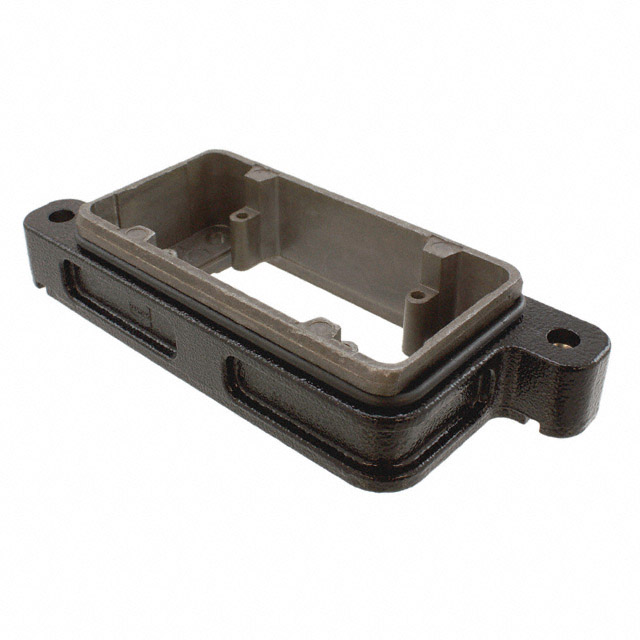

HARTING 09400100311	125 °C	-40 C	Black	Epoxy Powder Paint	Base - Panel Mount	145 mm	5.709 "	2.283 in	28.9 mm	1.138 "	58 mm	Aluminum Die Cast	Screw Locks on Hood	10B		Bottom Entry
HARTING 09400100317	125 °C	-40 C	Black	Powder Coated	Base - Panel Mount	145 mm	5.709 "	2.283 in	28.9 mm	1.138 "	58 mm	Aluminum Die Cast	Screw Locks on Hood	10B		Bottom Entry	Cover
HARTING 09400100502	125 °C	-40 C	Black	Powder Coated	Hood	145 mm	5.709 "	2.283 in	100.5 mm	3.957 in	58 mm	Aluminum Die Cast	Screw Locks on Hood	10B	PG21	Side Entry
HARTING 09400100401	125 °C	-40 C	Black	Powder Coated	Hood	145 mm	5.709 "	2.283 in	100.5 mm	3.957 in	58 mm	Aluminum Die Cast	Screw Locks on Hood	10B	PG16	Top Entry
HARTING 09400100511	125 °C	-40 C	Black	Powder Coated	Hood	145 mm	5.709 "	2.283 in	100.5 mm	3.957 in	58 mm	Aluminum Die Cast	Screw Locks on Hood	10B	PG16	Side Entry
HARTING 09400100412	125 °C	-40 C	Black	Powder Coated	Hood	145 mm	5.709 "	2.283 in	100.5 mm	3.957 in	58 mm	Aluminum Die Cast	Screw Locks on Hood	10B	PG21	Top Entry
HARTING 09400100413	125 °C	-40 C	Black	Powder Coated	Hood	145 mm	5.709 "	2.283 in	100.5 mm	3.957 in	58 mm	Aluminum Die Cast	Screw Locks on Hood	10B	PG29	Top Entry
HARTING 09400100381
