772-E15 Series
Manufacturer: NorComp Inc.
Beta
⌘K
D SUB CONNECTOR, DB15, IP68, STANDARD, RECEPTACLE, SEAL-D 772-E SERIES, 15 CONTACTS, DA, SOLDER
| Part | Color | Dielectric Material | Contact Material | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Shell Size, Connector Layout | Number of Rows [custom] | Contact Finish | Current Rating (Amps) | Material Flammability Rating | Flange Feature | Shell Material, Finish | Termination | Contact Finish Thickness | Connector Style | Number of Positions | Contact Type | Connector Type | Ingress Protection | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

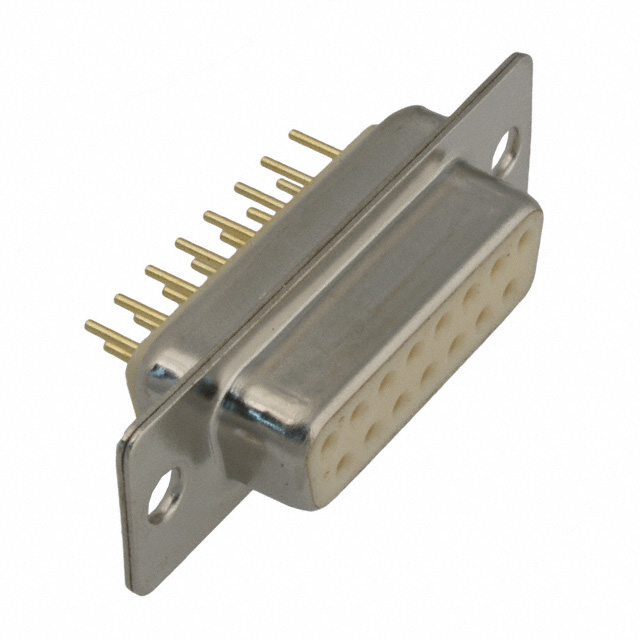

 NorComp Inc. | White | Polyamide (PA6T) Nylon 6T | Brass | 100 °C | -50 °C | Panel Mount Through Hole | 2 | 2 | Gold | 5 A | UL94 V-0 | Housing/Shell (Unthreaded) | Nickel Plated Steel | Solder | Flash | D-Sub | 15 | Signal | Receptacle Female Sockets | IP67 - Dust Tight Waterproof | |
 NorComp Inc. | White | Polyamide (PA6T) Nylon 6T | Brass | 100 °C | -50 °C | Panel Mount Through Hole | 2 | 2 | Gold | 5 A | UL94 V-0 | Board Side (4-40) | Nickel Plated Steel | Solder | Flash | D-Sub | 15 | Signal | Plug Male Pins | IP67 - Dust Tight Waterproof | Board Lock Grounding Indents |

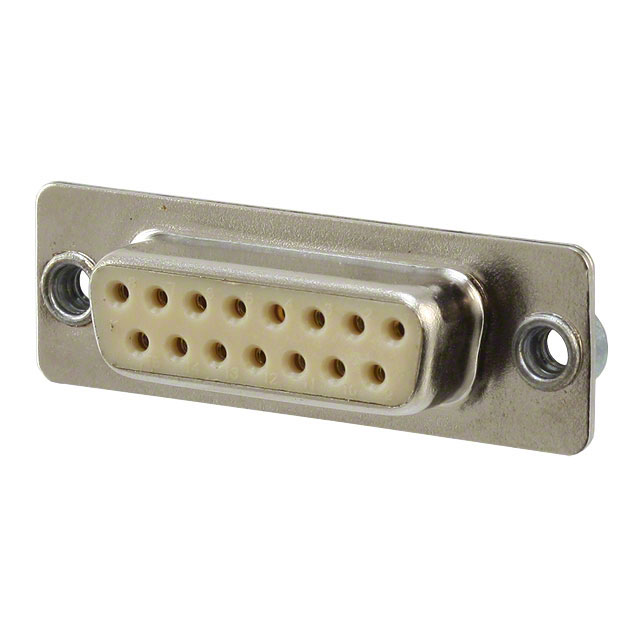

 NorComp Inc. | White | Polyamide (PA6T) Nylon 6T | Brass | 100 °C | -50 °C | Panel Mount Through Hole | 2 | 2 | Gold | 5 A | UL94 V-0 | Board Side | Nickel Plated Steel | Solder | Flash | D-Sub | 15 | Signal | Receptacle Female Sockets | IP67 - Dust Tight Waterproof |
