222KJVA Series

Catalog

SWITCH TACTILE SPST-NO 0.05A 32V

Part	Actuator Material	Mechanical Life	Switch Travel	Switch Function	Contact Rating @ Voltage	Outline [x]	Outline [y]	Operating Force	Circuit	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Actuator Orientation	Features	Actuator Type	Illumination	Ingress Protection	Actuator Height off PCB, Vertical [z]	Mounting Type

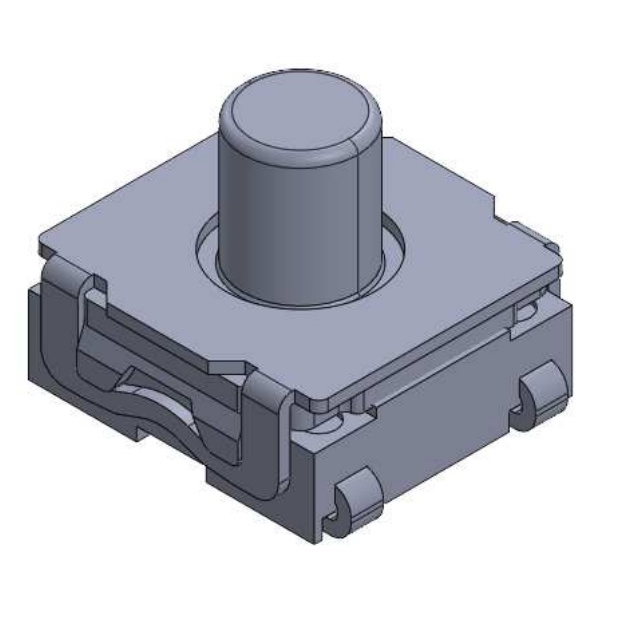

CTS Electrocomponents 222KJVACR	Silicone Rubber	300000 Cycles	0.7 mm	Off-Mom	0.05 A 32 VDC	6.2 mm	6.2 mm	360 gf	SPST-NO	85 °C	-40 C	J Lead	Top Actuated	Tactile Feedback	Standard	Non-Illuminated	IP67 - Dust Tight Waterproof	5.2 mm	Surface Mount

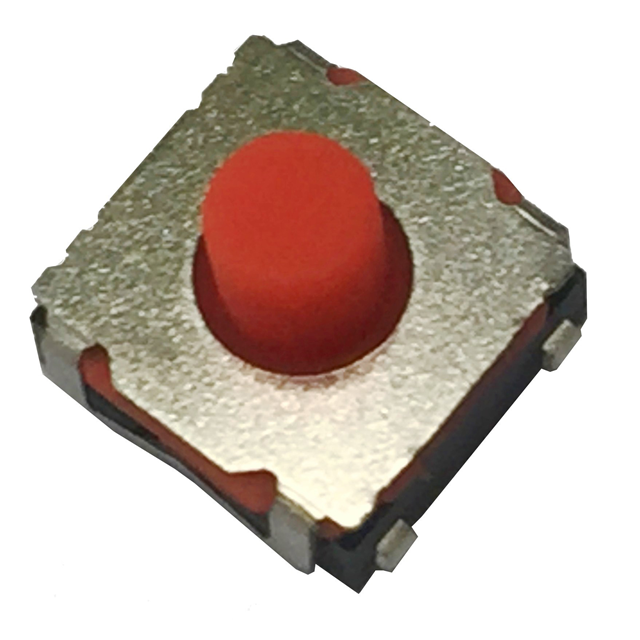

CTS Electrocomponents 222KJVAAR	Silicone Rubber	500000 Cycles	0.6 mm	Off-Mom	0.05 A 32 VDC	6.2 mm	6.2 mm	0.2 kgf	SPST-NO	85 °C	-40 C	J Lead	Top Actuated	Tactile Feedback	Standard	Non-Illuminated	IP67 - Dust Tight Waterproof	5.2 mm	Surface Mount

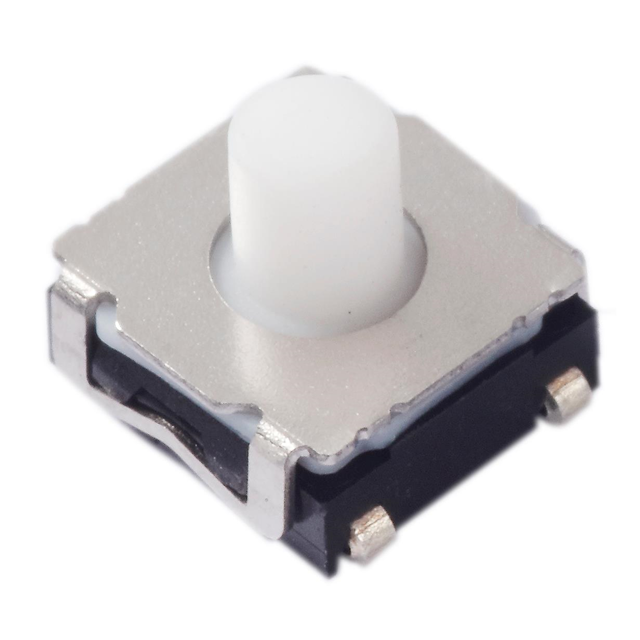

CTS Electrocomponents 222KJVABR	Silicone Rubber	5000000 Cycles	0.5 mm	Off-Mom	0.05 A 32 VDC	6.2 mm	6.2 mm	145 gf	SPST-NO	85 °C	-40 C	J Lead	Top Actuated	Tactile Feedback	Standard	Non-Illuminated	IP67 - Dust Tight Waterproof	5.2 mm	Surface Mount
