151120 Series

Manufacturer: Molex

Catalog

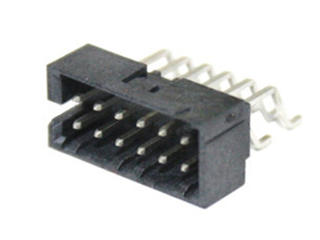

2.00MM PITCH, MILLI-GRID PCB HEADER, DUAL ROW, RIGHT-ANGLE, SURFACE MOUNT, 0.05ΜM GOLD (AU) PLATING, WITHOUT PEG, WITH PICK AND PLACE TAPE, 8 CIRCUITS, GLOW-WIRE CAPABLE, TAPE AND REEL

Part	Features	Contact Shape	Insulation Material	Row Spacing - Mating	Row Spacing - Mating	Contact Finish - Post	Operating Temperature [Max]	Operating Temperature [Min]	Contact Type	Number of Rows	Mounting Type	Contact Length - Mating	Contact Length - Mating	Shrouding	Contact Finish Thickness - Mating	Current Rating (Amps)	Voltage Rating	Contact Material	Contact Finish - Mating	Termination	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Material Flammability Rating	Applications	Insulation Color	Pitch - Mating [x]	Pitch - Mating [x]	Fastening Type	Style	Number of Positions Loaded	Number of Positions	Connector Type	Number of Positions	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating
Molex 1511200508	Glow Wire Compliant Pick and Place	Square	Liquid Crystal Polymer (LCP)	0.079 in	2 mm	Tin	105 ░C	-55 °C	Male Pin	2	Surface Mount Right Angle	0.141 in	3.6 mm	Shrouded - 4 Wall	Flash	2 A	125 VDC	Copper Alloy	Gold	Solder	2 çm	78.7 çin	UL94 V-0	Automotive General Purpose Telecommunications	Black	0.079 in	2 mm	Latch Holder	Board to Board Cable	All	8	Header
Molex 1511200316	Glow Wire Compliant	Square	Liquid Crystal Polymer (LCP)	0.079 in	2 mm	Tin	105 ░C	-55 °C	Male Pin	2	Surface Mount Right Angle	0.141 in	3.6 mm	Shrouded - 4 Wall		2 A	125 VDC	Copper Alloy	Gold	Solder	2 çm	78.7 çin	UL94 V-0	Automotive General Purpose Telecommunications	Black	0.079 in	2 mm	Latch Holder	Board to Board Cable	All		Header	16	29.5 Áin	0.75 Ám
Molex 1511200120	Glow Wire Compliant	Square	Liquid Crystal Polymer (LCP)	0.079 in	2 mm	Tin	105 ░C	-55 °C	Male Pin	2	Surface Mount Right Angle	0.141 in	3.6 mm	Shrouded - 4 Wall	Flash	2 A	125 VDC	Copper Alloy	Gold	Solder	2 çm	78.7 çin	UL94 V-0	Automotive General Purpose Telecommunications	Black	0.079 in	2 mm	Latch Holder	Board to Board Cable	All	20	Header
Molex 1511200218	Glow Wire Compliant	Square	Liquid Crystal Polymer (LCP)	0.079 in	2 mm	Tin	105 ░C	-55 °C	Male Pin	2	Surface Mount Right Angle	0.141 in	3.6 mm	Shrouded - 4 Wall		2 A	125 VDC	Copper Alloy	Gold	Solder	2 çm	78.7 çin	UL94 V-0	Automotive General Purpose Telecommunications	Black	0.079 in	2 mm	Latch Holder	Board to Board Cable	All	18	Header		15 µin	0.38 µm
Molex 1511200020	Glow Wire Compliant	Square	Liquid Crystal Polymer (LCP)	0.079 in	2 mm	Tin	105 ░C	-55 °C	Male Pin	2	Surface Mount Right Angle	0.141 in	3.6 mm	Shrouded - 4 Wall		2 A	125 VDC	Copper Alloy		Solder	2 çm	78.7 çin	UL94 V-0	Automotive General Purpose Telecommunications	Black	0.079 in	2 mm	Latch Holder	Board to Board Cable	All	20	Header		78.7 µin	2 µm
Molex 1511200220	Glow Wire Compliant	Square	Liquid Crystal Polymer (LCP)	0.079 in	2 mm	Tin	105 ░C	-55 °C	Male Pin	2	Surface Mount Right Angle	0.141 in	3.6 mm	Shrouded - 4 Wall		2 A	125 VDC	Copper Alloy	Gold	Solder	2 çm	78.7 çin	UL94 V-0	Automotive General Purpose Telecommunications	Black	0.079 in	2 mm	Latch Holder	Board to Board Cable	All	20	Header		15 µin	0.38 µm
Molex 1511200712	Glow Wire Compliant Pick and Place	Square	Liquid Crystal Polymer (LCP)	0.079 in	2 mm	Tin	105 ░C	-55 °C	Male Pin	2	Surface Mount Right Angle	0.141 in	3.6 mm	Shrouded - 4 Wall		2 A	125 VDC	Copper Alloy	Gold	Solder	2 çm	78.7 çin	UL94 V-0	Automotive General Purpose Telecommunications	Black	0.079 in	2 mm	Latch Holder	Board to Board Cable	All	12	Header		29.5 Áin	0.75 Ám
Molex 1511200608	Glow Wire Compliant Pick and Place	Square	Liquid Crystal Polymer (LCP)	0.079 in	2 mm	Tin	105 ░C	-55 °C	Male Pin	2	Surface Mount Right Angle	0.141 in	3.6 mm	Shrouded - 4 Wall		2 A	125 VDC	Copper Alloy	Gold	Solder	2 çm	78.7 çin	UL94 V-0	Automotive General Purpose Telecommunications	Black	0.079 in	2 mm	Latch Holder	Board to Board Cable	All	8	Header		15 µin	0.38 µm
Molex 1511200612	Glow Wire Compliant Pick and Place	Square	Liquid Crystal Polymer (LCP)	0.079 in	2 mm	Tin	105 ░C	-55 °C	Male Pin	2	Surface Mount Right Angle	0.141 in	3.6 mm	Shrouded - 4 Wall		2 A	125 VDC	Copper Alloy	Gold	Solder	2 çm	78.7 çin	UL94 V-0	Automotive General Purpose Telecommunications	Black	0.079 in	2 mm	Latch Holder	Board to Board Cable	All	12	Header		15 µin	0.38 µm
Molex 1511200412	Glow Wire Compliant Pick and Place	Square	Liquid Crystal Polymer (LCP)	0.079 in	2 mm	Tin	105 ░C	-55 °C	Male Pin	2	Surface Mount Right Angle	0.141 in	3.6 mm	Shrouded - 4 Wall		2 A	125 VDC	Copper Alloy		Solder	2 çm	78.7 çin	UL94 V-0	Automotive General Purpose Telecommunications	Black	0.079 in	2 mm	Latch Holder	Board to Board Cable	All	12	Header		78.7 µin	2 µm
