896-060 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE DUAL FMALE 60POS 0.125

...

Part	Material - Insulation	Termination Rows [custom]	Number of Rows [custom]	Number of Positions/Bay/Row	Contact Finish	Read Out	Color	Contact Type	Number of Positions	Gender	Card Thickness [Max]	Card Thickness [Min]	Pitch	Pitch	Mounting Type	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Termination	Card Type	Flange Feature	Contact Finish Thickness	Contact Finish Thickness	Flange Feature [diameter]	Flange Feature [diameter]	Features
EDAC Inc. 896-060-540-207	Polyphenylene Sulfide (PPS)	2	2	30	Gold	Dual	Black	Cantilever	60	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	3.18 mm	0.125 in	Through Hole	Copper Alloy	125 °C	-40 C	Wire Wrap	Non Specified - Dual Edge	Flush Mount M3 Threaded Insert Top Opening	0.25 Ám	10 Áin
EDAC Inc. 896-060-521-812	Polyphenylene Sulfide (PPS)	2	2	30	Gold	Dual	Black	Cantilever	60	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	3.18 mm	0.125 in	Through Hole	Copper Alloy	125 °C	-40 C	Solder	Non Specified - Dual Edge	Side Mount Opening Unthreaded	0.25 Ám	10 Áin	0.128 "	3.25 mm
EDAC Inc. 896-060-555-208	Polyphenylene Sulfide (PPS)	2	2	30	Gold	Dual	Black	Cantilever	60	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	3.18 mm	0.125 in	Board Edge Straddle Mount	Copper Alloy	125 °C	-40 C	Solder Eyelet(s)	Non Specified - Dual Edge	4-40 Flush Mount Threaded Insert Top Opening	0.25 Ám	10 Áin			Card Extender
EDAC Inc. 896-060-522-203	Polyphenylene Sulfide (PPS)	2	2	30	Gold	Dual	Black	Cantilever	60	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	3.18 mm	0.125 in	Through Hole	Copper Alloy	125 °C	-40 C	Solder	Non Specified - Dual Edge	Floating Bobbin Flush Mount	0.25 Ám	10 Áin	0.116 "	2.95 mm
EDAC Inc. 896-060-522-202	Polyphenylene Sulfide (PPS)	2	2	30	Gold	Dual	Black	Cantilever	60	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	3.18 mm	0.125 in	Through Hole	Copper Alloy	125 °C	-40 C	Solder	Non Specified - Dual Edge	Flush Mount Top Opening Unthreaded	0.25 Ám	10 Áin	0.128 "	3.25 mm

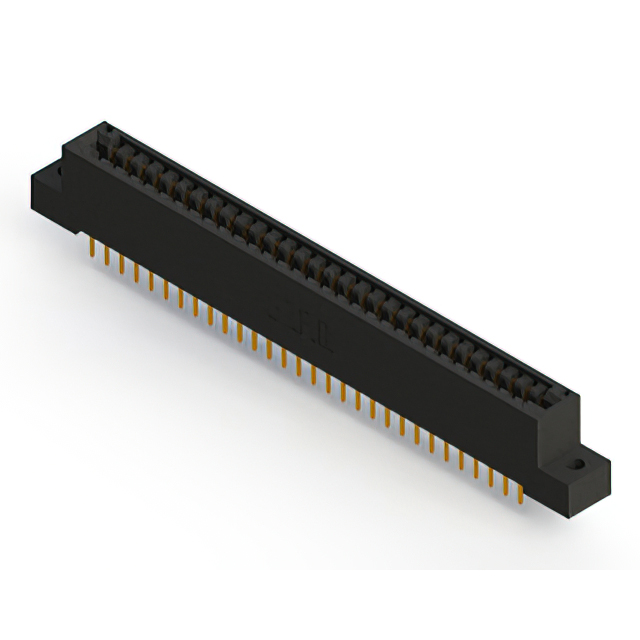

EDAC Inc. 896-060-521-202	Polyphenylene Sulfide (PPS)	2	2	30	Gold	Dual	Black	Cantilever	60	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	3.18 mm	0.125 in	Through Hole	Copper Alloy	125 °C	-40 C	Solder	Non Specified - Dual Edge	Flush Mount Top Opening Unthreaded	0.25 Ám	10 Áin	0.128 "	3.25 mm
EDAC Inc. 896-060-520-202	Polyphenylene Sulfide (PPS)	2	2	30	Gold	Dual	Black	Cantilever	60	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	3.18 mm	0.125 in	Through Hole	Copper Alloy	125 °C	-40 C	Solder	Non Specified - Dual Edge	Flush Mount Top Opening Unthreaded	0.25 Ám	10 Áin	0.128 "	3.25 mm
EDAC Inc. 896-060-520-203	Polyphenylene Sulfide (PPS)	2	2	30	Gold	Dual	Black	Cantilever	60	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	3.18 mm	0.125 in	Through Hole	Copper Alloy	125 °C	-40 C	Solder	Non Specified - Dual Edge	Floating Bobbin Flush Mount	0.25 Ám	10 Áin	0.116 "	2.95 mm

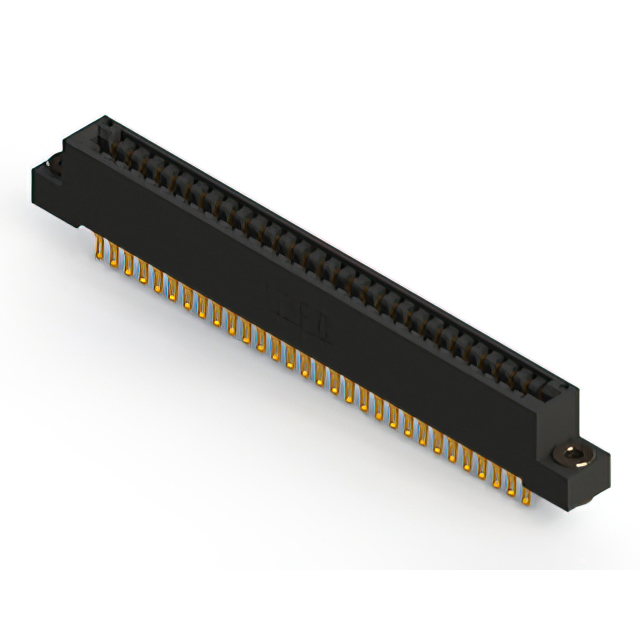

EDAC Inc. 896-060-555-203	Polyphenylene Sulfide (PPS)	2	2	30	Gold	Dual	Black	Cantilever	60	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	3.18 mm	0.125 in	Board Edge Straddle Mount	Copper Alloy	125 °C	-40 C	Solder Eyelet(s)	Non Specified - Dual Edge	Floating Bobbin Flush Mount	0.25 Ám	10 Áin	0.116 "	2.95 mm	Card Extender
EDAC Inc. 896-060-522-802	Polyphenylene Sulfide (PPS)	2	2	30	Gold	Dual	Black	Cantilever	60	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	3.18 mm	0.125 in	Through Hole	Copper Alloy	125 °C	-40 C	Solder	Non Specified - Dual Edge		0.25 Ám	10 Áin	0.128 "	3.25 mm
