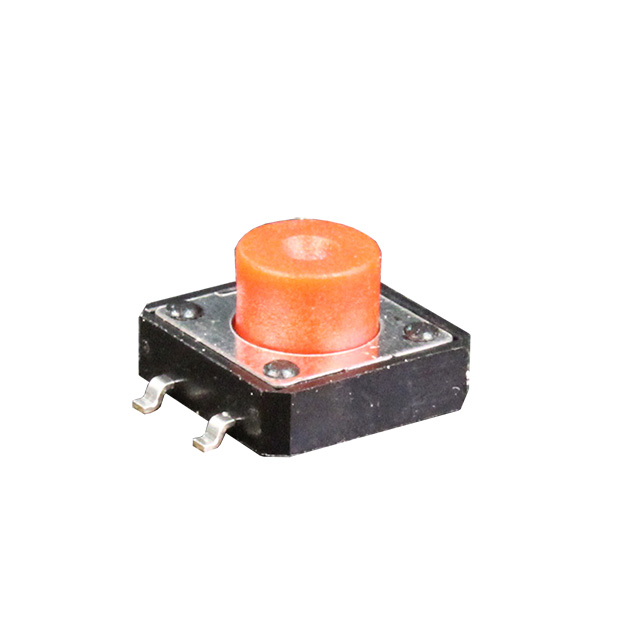

CS11037 Series
Manufacturer: CIT Relay and Switch
Beta
⌘K
SWITCH TACTILE SPST-NO 0.05A 48V
| Part | Switch Travel | Actuator Material | Circuit | Outline [y] | Outline [x] | Termination Style | Actuator Orientation | Switch Function | Contact Rating @ Voltage | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Illumination | Actuator Height off PCB, Vertical | Operating Force | Actuator Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CIT Relay and Switch | 0.3 mm | Polyamide (PA6T) Nylon 6T | SPST-NO | 12 mm | 12 mm | Gull Wing | Top Actuated | Off-Mom | 0.05 A 48 VDC | Surface Mount | 85 °C | -40 C | Non-Illuminated | 7.5 mm | 180 gf | Standard |
CIT Relay and Switch | 0.3 mm | Polyamide (PA6T) Nylon 6T | SPST-NO | 12 mm | 12 mm | Gull Wing | Top Actuated | Off-Mom | 0.05 A 48 VDC | Surface Mount | 85 °C | -40 C | Non-Illuminated | 7.5 mm | 260 gf | Standard |
