PML50 Series

Catalog

.688" DIA (17.5MM) RED LED PANEL

Part	Ratings	Panel Cutout Dimensions	Panel Cutout Dimensions	Type	Lens Style	Current	Termination Style	Voltage [Max]	Voltage [Min]	Lamp Color	Lens Size [diameter]	Ingress Protection	Panel Cutout Shape	Lens Color	Millicandela Rating	Lens Transparency
Visual Communications Company - VCC PML50SRFVW	DC	0.69 in	17.53 mm	LED	Round with Domed Top	20 mA	Wire Leads - 5.5" (139.70mm)	28 V	5 V	Red	17.8 mm	IP67	Round	Red	780 mcd	Clear

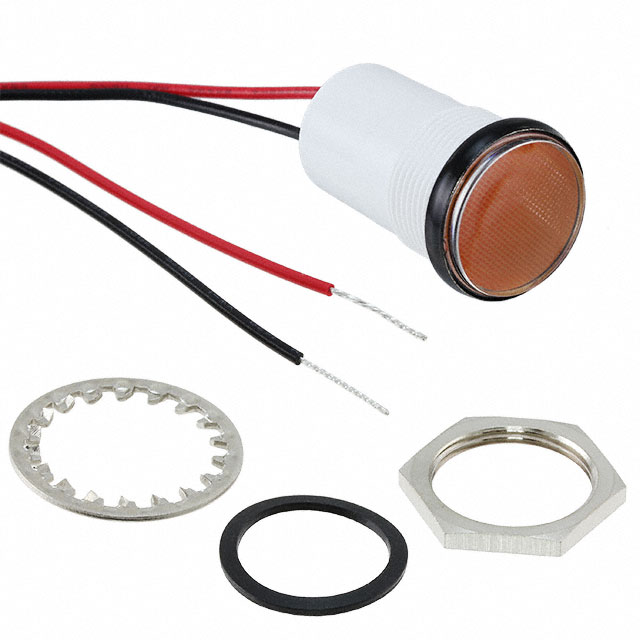

Visual Communications Company - VCC PML50YFVW	DC	0.69 in	17.53 mm	LED	Round with Flat Top	20 mA	Wire Leads - 5.5" (139.70mm)	28 V	5 V	Yellow	17.8 mm	IP67	Round	Yellow	2020 mcd	Clear
Visual Communications Company - VCC PML50BFVW	DC	0.69 in	17.53 mm	LED	Round with Flat Top	20 mA	Wire Leads - 5.5" (139.70mm)	28 V	5 V	Blue	17.8 mm	IP67	Round	Blue	270 mcd	Clear

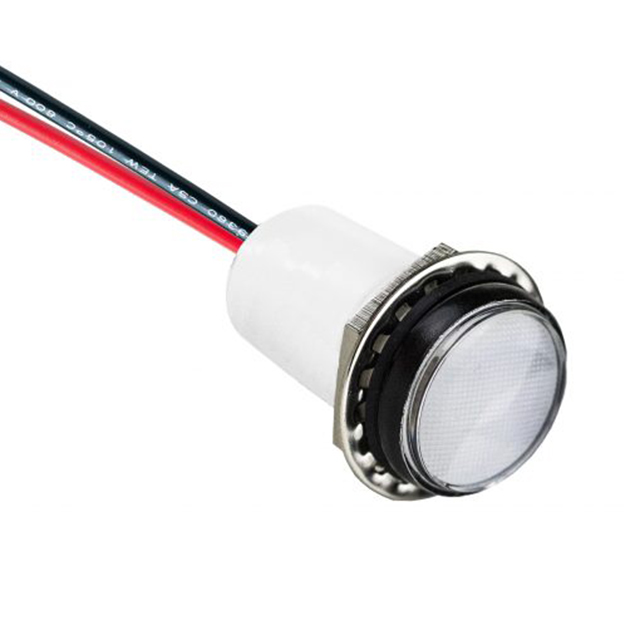

Visual Communications Company - VCC PML50WFVW	DC	0.69 in	17.53 mm	LED	Round with Flat Top	20 mA	Wire Leads - 5.5" (139.70mm)	28 V	5 V	White	17.8 mm	IP67	Round	White		Clear

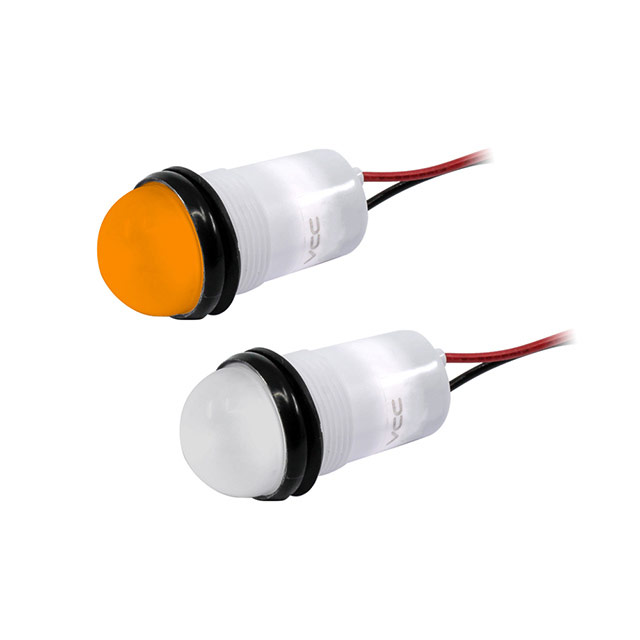

Visual Communications Company - VCC PML50SYFVW	DC	0.69 in	17.53 mm	LED	Round with Domed Top	20 mA	Wire Leads - 5.5" (139.70mm)	28 V	5 V	Yellow	17.8 mm	IP67	Round	Yellow	970 mcd	Clear

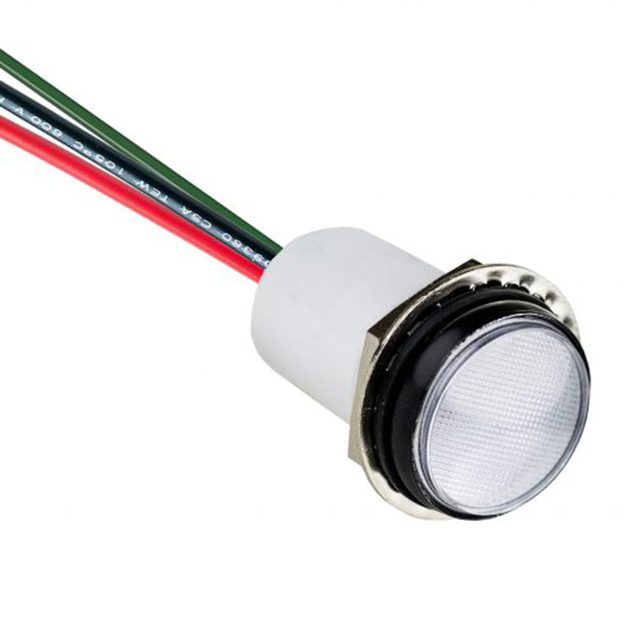

Visual Communications Company - VCC PML50RGFVW	DC	0.69 in	17.53 mm	LED	Round with Flat Top	20 mA	Wire Leads - 5.5" (139.70mm)	28 V	5 V	Green Red	17.8 mm	IP67	Round		1130 mcd 2380 mcd	Clear
