19302061 Series

Manufacturer: HARTING

Catalog

6B SURFACE MOUNT HOUSING, SINGLE LEVER, LOW CONSTRUCTION, 2XM20 - HIGH MATING CYCLE VERSION

Part	Housing Color	Lock Location	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Size	Style	Housing Finish	Connector Type	Thread Size	Features	Housing Material
HARTING 19302061290	Gray	Locking Clip (1) on Base Bottom	51.5 mm	2.028 in	82 mm	2.047 in	52 mm	3.228 in	125 °C	-40 C	IP65 - Dust Tight Water Resistant	6B	Side Entry Dual	Powder Coated	Base - Box Mount	M20	Feed Through	Aluminum Die Cast

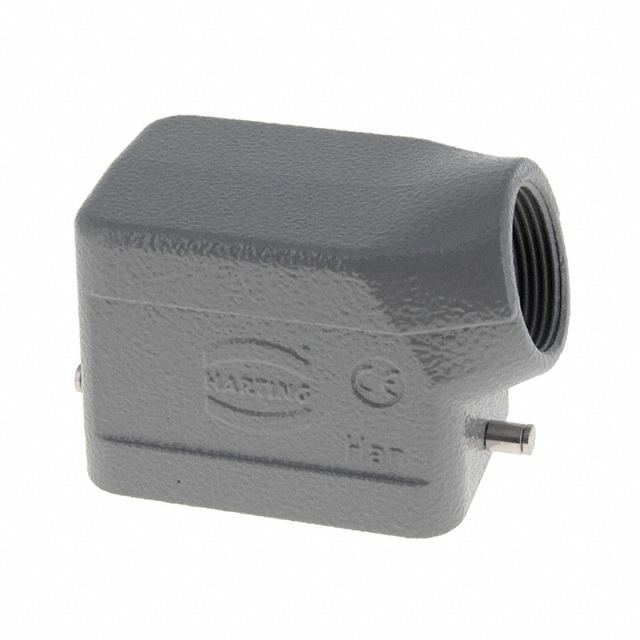

HARTING 19302061541	Gray	Locking Clip (1) on Base Bottom	46 mm	1.811 "	59.3 mm	1.693 "	43 mm	2.335 "	125 °C	-40 C	IP65 - Dust Tight Water Resistant	6B	Side Entry	Powder Coated	Hood	M25		Aluminum Die Cast

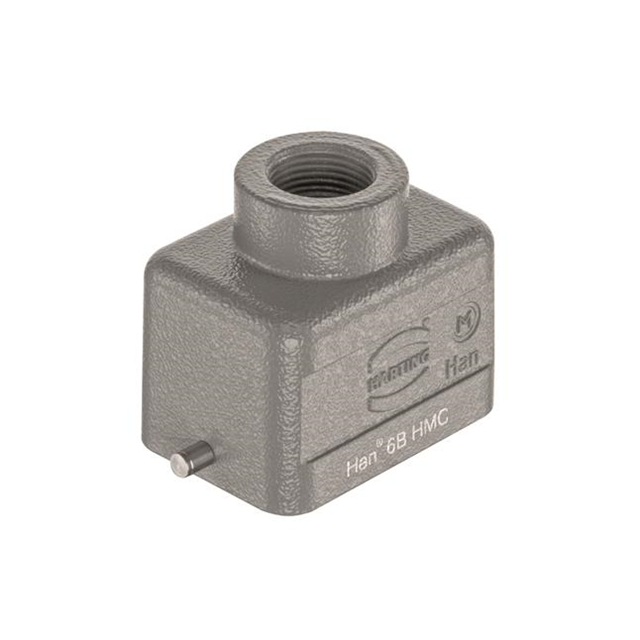

HARTING 19302061440	Gray	Locking Clip (1) on Base Bottom	40 mm	1.575 in	59.5 mm	1.693 "	43 mm	2.343 "	125 °C	-40 C	IP65 - Dust Tight Water Resistant	6B	Top Entry	Powder Coated	Hood	M20		Aluminum Die Cast
