10SVPC Series

Catalog

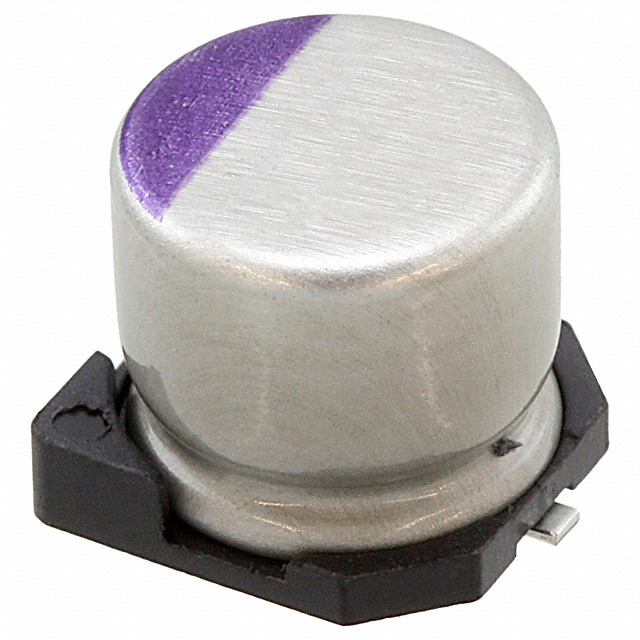

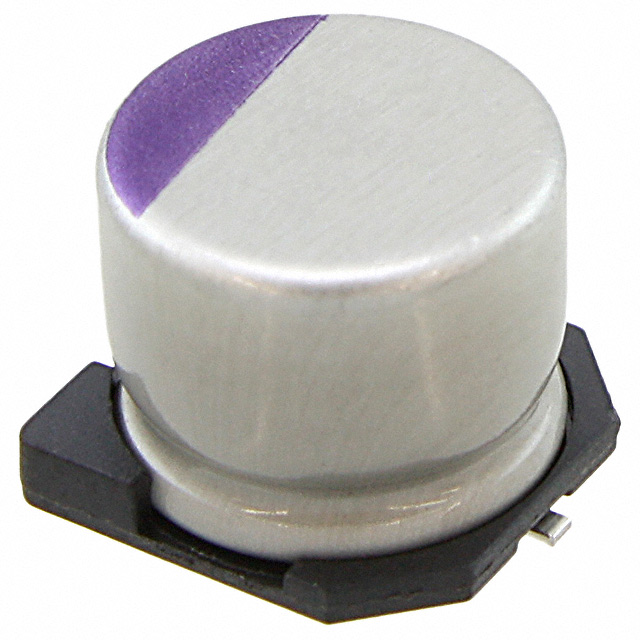

OSCON,SVPC SERIES ROHS COMPLIANT: YES

Part	Ripple Current @ Low Frequency	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Package / Case	Size / Dimension [diameter]	Size / Dimension [diameter]	Tolerance	Type	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Surface Mount Land Size [x]	Surface Mount Land Size [y]	ESR (Equivalent Series Resistance)	Capacitance	Ripple Current @ High Frequency	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Lifetime @ Temp.	Mounting Type	Voltage - Rated	Height - Seated (Max)
Panasonic Electronic Components 10SVPC270M	161 mA	-55 C	105 ░C	General Purpose	Radial Can - SMD	0.315 in	8 mm	20 %	Polymer	8.3 mm	8.3 mm	0.327 in	0.327 in	22 mOhms	270 µF	3.22 A	0.276 in	7 mm	2000 Hrs	Surface Mount	10 V
Panasonic Electronic Components 10SVPC120MV	130 mA	-55 C	105 ░C	General Purpose	Radial Can - SMD	0.248 "	6.3 mm	20 %	Polymer	6.6 mm	6.6 mm	0.26 in	0.26 in	22 mOhms	120 µF	2.6 A	0.236 "		2000 Hrs	Surface Mount	10 V	6 mm
Panasonic Electronic Components 10SVPC120M	116 mA	-55 C	105 ░C	General Purpose	Radial Can - SMD	0.248 "	6.3 mm	20 %	Polymer	6.6 mm	6.6 mm	0.26 in	0.26 in	27 mOhms	120 µF	2.32 A	0.236 "		2000 Hrs	Surface Mount	10 V	6 mm
Panasonic Electronic Components 10SVPC330M	173 mA	-55 C	105 ░C	General Purpose	Radial Can - SMD	0.315 in	8 mm	20 %	Polymer	8.3 mm	8.3 mm	0.327 in	0.327 in	19 mOhm	330 µF	3.46 A	0.276 in	7 mm	2000 Hrs	Surface Mount	10 V
