1742718 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

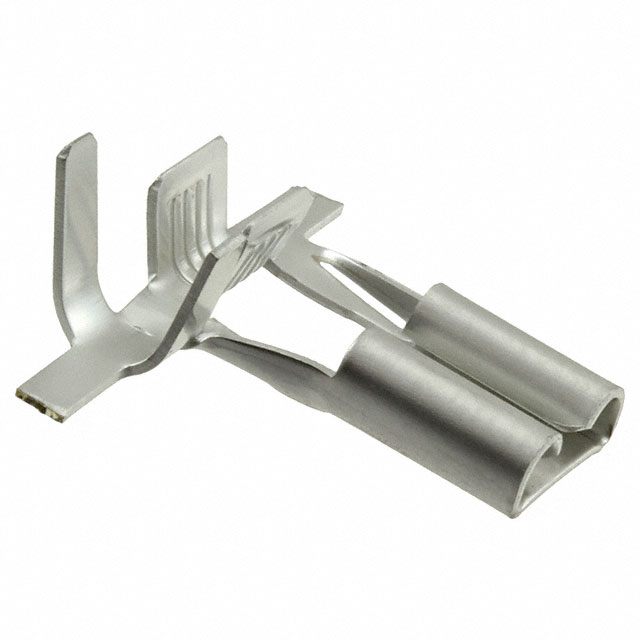

CONN QC RCPT 12-16AWG 0.250
| Part | Termination | Terminal Type | Tab Width | Tab Width | Tab Length | Tab Length | Insulation | Wire Gauge [Min] | Wire Gauge [Max] | Contact Material | Tab Thickness | Tab Thickness | Mounting Type | Insulation Diameter [Min] | Insulation Diameter [Max] | Insulation Diameter [Max] | Insulation Diameter [Min] | Contact Finish | Gender |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Crimp | Angled - 90° Flag | 6.35 mm | 0.25 in | 7.75 mm | 0.305 in | Non-Insulated | 12 AWG | 16 AWG | Brass | 0.032 in | 0.81 mm | Free Hanging (In-Line) | 0.12 in | 0.17 in | 4.32 mm | 3.05 mm | Tin | Female |
