57202 Series

Catalog

CONN HEADER SMD 18POS 2MM

...

Part	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Connector Type	Number of Rows	Material Flammability Rating	Insulation Color	Contact Finish - Post	Contact Type	Pitch - Mating [x]	Pitch - Mating [x]	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Termination	Mounting Type	Features	Contact Length - Mating	Contact Length - Mating	Number of Positions Loaded	Contact Finish - Mating	Row Spacing - Mating	Row Spacing - Mating	Insulation Material	Shrouding	Number of Positions	Contact Shape	Fastening Type	Contact Material	Current Rating (Amps)	Voltage Rating	Contact Length - Mating	Contact Finish Thickness - Mating
Amphenol ICC (FCI) 57202-G51-09ALF	30 Áin	0.76 Ám	Header	2	UL94 V-0	Black	Tin	Male Pin	0.079 in	2 mm	2 çm	78.7 çin	Solder	Surface Mount	Pick and Place	0.079 in	2 mm	All	Gold GXT™	0.079 in	2 mm	Thermoplastic	Unshrouded	18	Square	Push-Pull	Copper Alloy	2 A	200 V

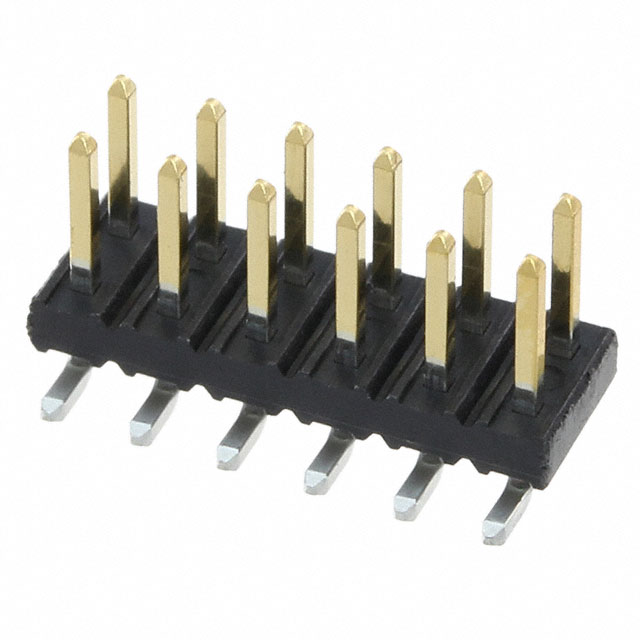

Amphenol ICC (FCI) 57202-G52-06ALF	30 Áin	0.76 Ám	Header	2	UL94 V-0	Black	Tin	Male Pin	0.079 in	2 mm	2 çm	78.7 çin	Solder	Surface Mount	Pick and Place	4 mm		All	Gold GXT™	0.079 in	2 mm	Thermoplastic	Unshrouded	12	Square	Push-Pull	Copper Alloy	2 A	200 V	0.157 in
Amphenol ICC (FCI) 57202-G52-20ULF	30 Áin	0.76 Ám	Header	2	UL94 V-0	Black	Tin	Male Pin	0.079 in	2 mm	2 çm	78.7 çin	Solder	Surface Mount		4 mm		All	Gold GXT™	0.079 in	2 mm	Thermoplastic	Unshrouded	40	Square	Push-Pull	Copper Alloy	2 A	200 V	0.157 in
Amphenol ICC (FCI) 57202-F51-25ULF			Header	2	UL94 V-0	Black	Tin	Male Pin	0.079 in	2 mm	2 çm	78.7 çin	Solder	Surface Mount		0.079 in	2 mm	All	Gold	0.079 in	2 mm	Thermoplastic	Unshrouded	50	Square	Push-Pull	Copper Alloy	2 A	200 V		Flash
Amphenol ICC (FCI) 57202-G51-05	30 Áin	0.76 Ám	Header	2	UL94 V-0	Black	Tin	Male Pin	0.079 in	2 mm	2 çm	78.7 çin	Solder	Surface Mount		0.079 in	2 mm	All	Gold GXT™	0.079 in	2 mm	Thermoplastic	Unshrouded	10	Square	Push-Pull	Copper Alloy	2 A	200 V
Amphenol ICC (FCI) 57202-G51-15LF	30 Áin	0.76 Ám	Header	2	UL94 V-0	Black	Tin	Male Pin	0.079 in	2 mm	2 çm	78.7 çin	Solder	Surface Mount		0.079 in	2 mm	All	Gold GXT™	0.079 in	2 mm	Thermoplastic	Unshrouded	30	Square	Push-Pull	Copper Alloy	2 A	200 V

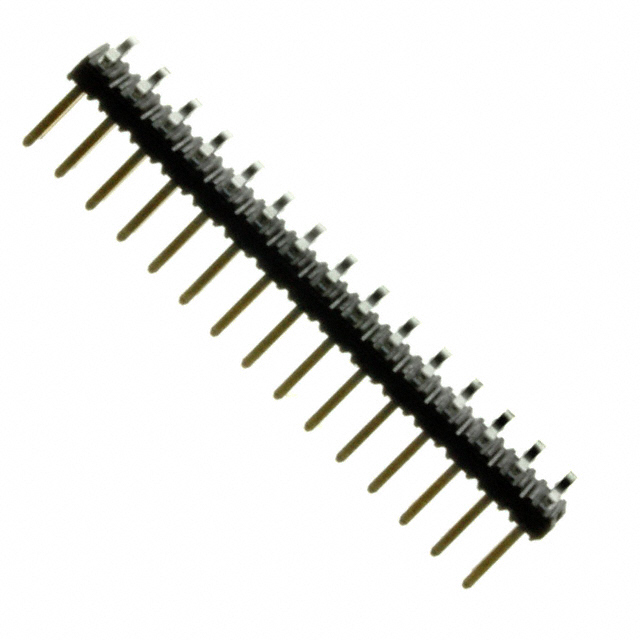

Amphenol ICC (FCI) 57202-G52-15LF	30 Áin	0.76 Ám	Header	2	UL94 V-0	Black	Tin	Male Pin	0.079 in	2 mm	2 çm	78.7 çin	Solder	Surface Mount		4 mm		All	Gold GXT™	0.079 in	2 mm	Thermoplastic	Unshrouded	30	Square	Push-Pull	Copper Alloy	2 A	200 V	0.157 in
Amphenol ICC (FCI) 57202-G52-11ALF	30 Áin	0.76 Ám	Header	2	UL94 V-0	Black	Tin	Male Pin	0.079 in	2 mm	2 çm	78.7 çin	Solder	Surface Mount		4 mm		All	Gold GXT™	0.079 in	2 mm	Thermoplastic	Unshrouded	22 positions	Square	Push-Pull	Copper Alloy	2 A	200 V	0.157 in
Amphenol ICC (FCI) 57202-S53-07ALF	15 µin	0.38 µm	Header	2	UL94 V-0	Black	Tin	Male Pin	0.079 in	2 mm	2 çm	78.7 çin	Solder	Surface Mount	Pick and Place	3.5 mm		All	Gold GXT™	0.079 in	2 mm	Thermoplastic	Unshrouded	14	Square	Push-Pull	Copper Alloy	2 A	200 V	0.138 in
Amphenol ICC (FCI) 57202-G51-19LF	30 Áin	0.76 Ám	Header	2	UL94 V-0	Black	Tin	Male Pin	0.079 in	2 mm	2 çm	78.7 çin	Solder	Surface Mount		0.079 in	2 mm	All	Gold GXT™	0.079 in	2 mm	Thermoplastic	Unshrouded	38	Square	Push-Pull	Copper Alloy	2 A	200 V
