0895050 Series

Fuse - LP JCase 58VDC, 50A 2000 pc

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

Fuse - LP JCase 58VDC, 50A 2000 pc

Part	Approval Agency	Fuse Type	Current Rating (Amps)	DC Cold Resistance	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Breaking Capacity @ Rated Voltage	Voltage Rating - DC	Color	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Melting I²t	Mounting Type
Littelfuse/Commercial Vehicle Products 0895050.TXN	UL	Automotive	50 A	0.00108 Ohms	Auto Link	125 °C	-40 °C	1 kA	58 VDC	Red	0.63 in	12 mm	0.472 "	0.571 in	16 mm	14.5 mm	4880	Requires Holder

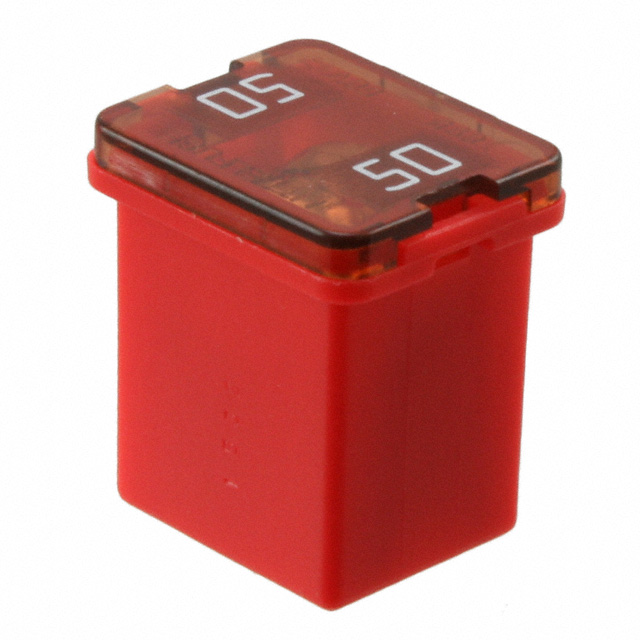

Littelfuse/Commercial Vehicle Products 0895050.Z	UL	Automotive	50 A	0.00108 Ohms	Auto Link	125 °C	-40 °C	1 kA	58 VDC	Red	0.63 in	12 mm	0.472 "	0.571 in	16 mm	14.5 mm	4880	Requires Holder

Catalog

Fuse - LP JCase 58VDC, 50A 2000 pc

Description

The Low Profile JCASE fuse has similar performance characteristics as the standard JCASE fuse. The lower overall height reduction allows for more space and weight savings and also allows for a shorter male blade terminal, saving additional weight and material savings in fuse box diagram.
