EVQ-PJ Series

Manufacturer: Panasonic Industrial Automation Sales

Catalog

SWITCH TACTILE SPST-NO 0.05A 12V

Part	Operating Force	Circuit	Actuator Height off PCB, Vertical [z]	Illumination	Mounting Type	Actuator Orientation	Actuator Type	Outline [y]	Outline [x]	Features	Contact Rating @ Voltage	Switch Function	Operating Temperature [Min]	Operating Temperature [Max]	Switch Travel	Termination Style	Actuator Height off PCB, Vertical	Mechanical Life

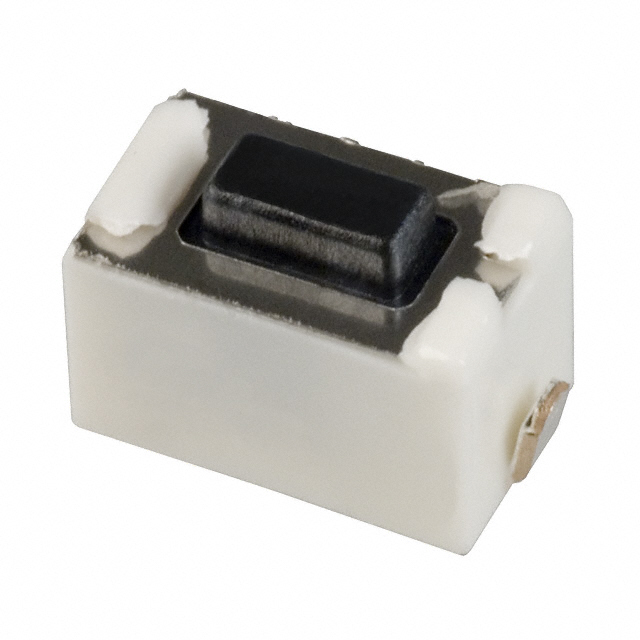

Panasonic Industrial Automation Sales EVQ-PJS04K	100 gf	SPST-NO	4.3 mm	Non-Illuminated	Surface Mount	Top Actuated	Standard	3.5 mm	6 mm	Tactile Feedback	0.05 A 12 VDC	Off-Mom	-30 ░C	85 °C	0.25 mm	J Lead

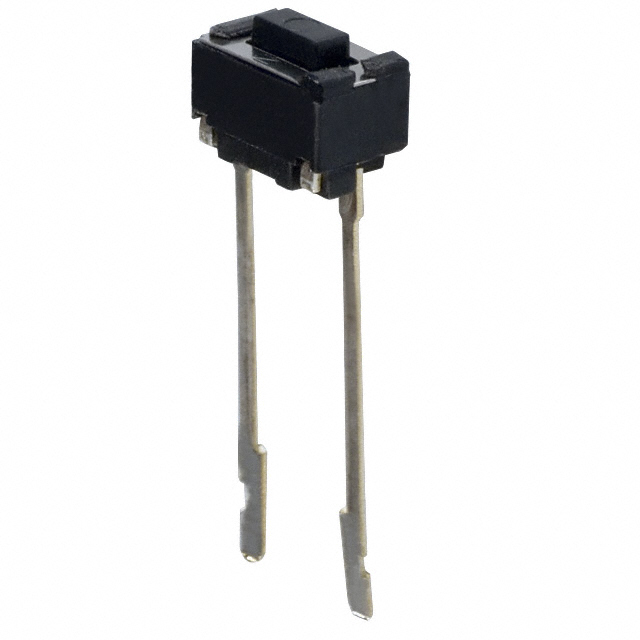

Panasonic Industrial Automation Sales EVQ-PJH04K		SPST-NO	4.3 mm	Non-Illuminated	Through Hole	Top Actuated	Standard	3.5 mm	6 mm	Tactile Feedback	0.05 A 12 VDC	Off-Mom	-30 ░C	85 °C	0.25 mm	PC Pin

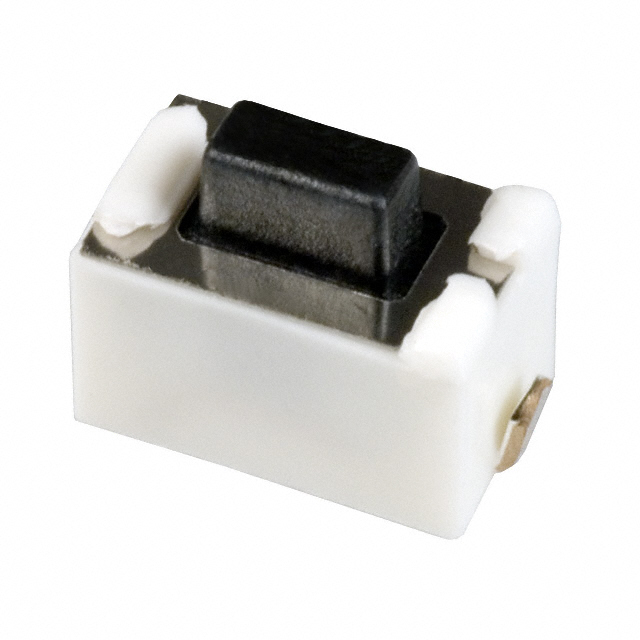

Panasonic Industrial Automation Sales EVQ-PJS05K	100 gf	SPST-NO		Non-Illuminated	Surface Mount	Top Actuated	Standard	3.5 mm	6 mm	Tactile Feedback	0.05 A 12 VDC	Off-Mom	-30 ░C	85 °C	0.25 mm	J Lead	5 mm

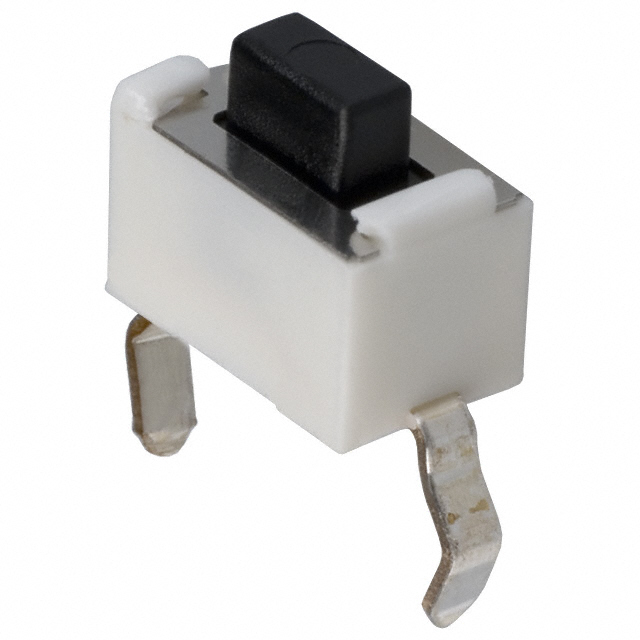

Panasonic Industrial Automation Sales EVQ-PJB05K		SPST-NO		Non-Illuminated	Through Hole	Top Actuated	Standard	3.5 mm	6 mm	Tactile Feedback	0.05 A 12 VDC	Off-Mom	-30 ░C	85 °C	0.25 mm	PC Pin	5 mm

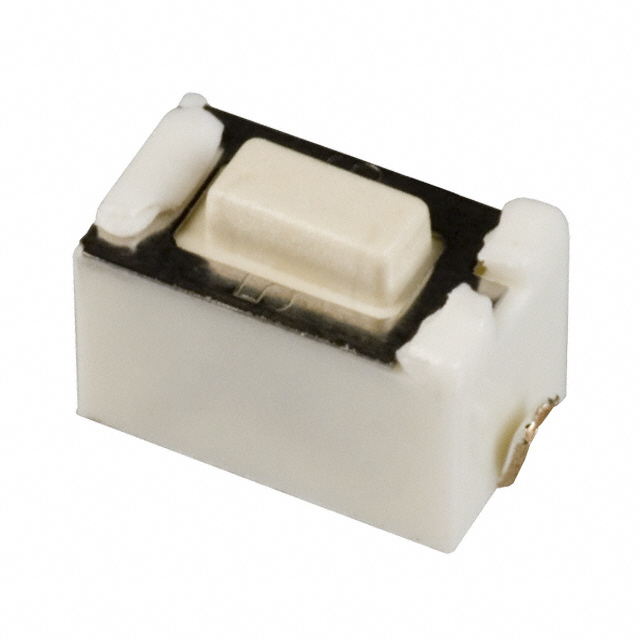

Panasonic Industrial Automation Sales EVQ-PJX04M		SPST-NO	4.3 mm	Non-Illuminated	Surface Mount	Top Actuated	Standard	3.5 mm	6 mm	Tactile Feedback	0.05 A 12 VDC	Off-Mom	-30 ░C	85 °C	0.25 mm	J Lead

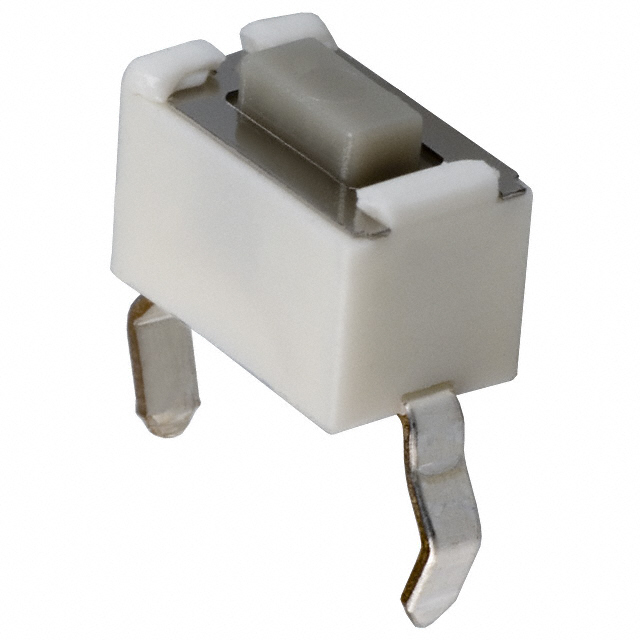

Panasonic Industrial Automation Sales EVQ-PJA04Q	100 gf	SPST-NO	4.3 mm	Non-Illuminated	Through Hole	Top Actuated	Standard	3.5 mm	6 mm	Tactile Feedback	0.05 A 12 VDC	Off-Mom	-30 ░C	85 °C	0.25 mm	PC Pin

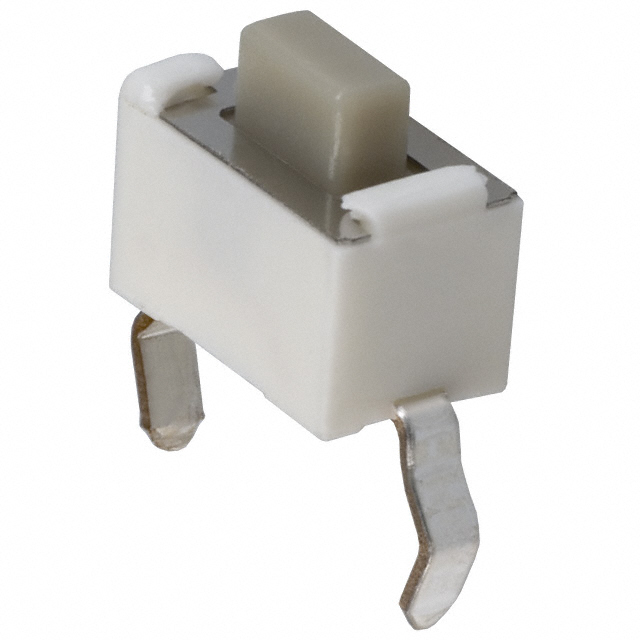

Panasonic Industrial Automation Sales EVQ-PJA05Q	100 gf	SPST-NO		Non-Illuminated	Through Hole	Top Actuated	Standard	3.5 mm	6 mm	Tactile Feedback	0.05 A 12 VDC	Off-Mom	-30 ░C	85 °C	0.25 mm	PC Pin	5 mm

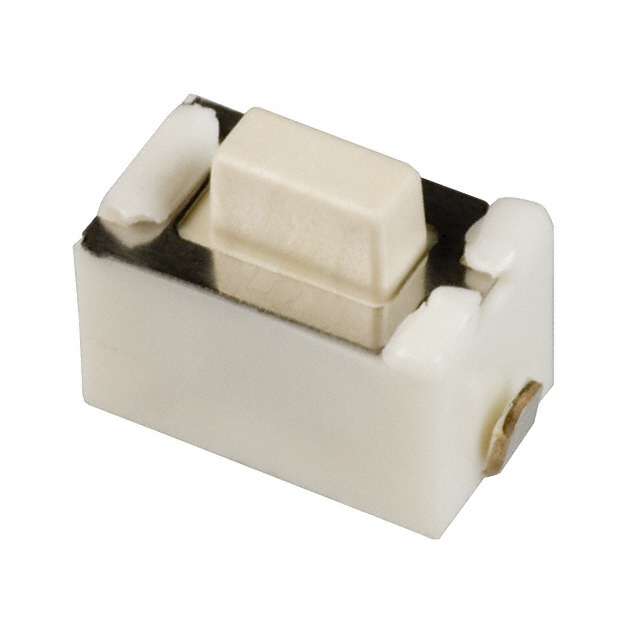

Panasonic Industrial Automation Sales EVQ-PJX05M		SPST-NO		Non-Illuminated	Surface Mount	Top Actuated	Standard	3.5 mm	6 mm	Tactile Feedback	0.05 A 12 VDC	Off-Mom	-30 ░C	85 °C	0.25 mm	J Lead	5 mm

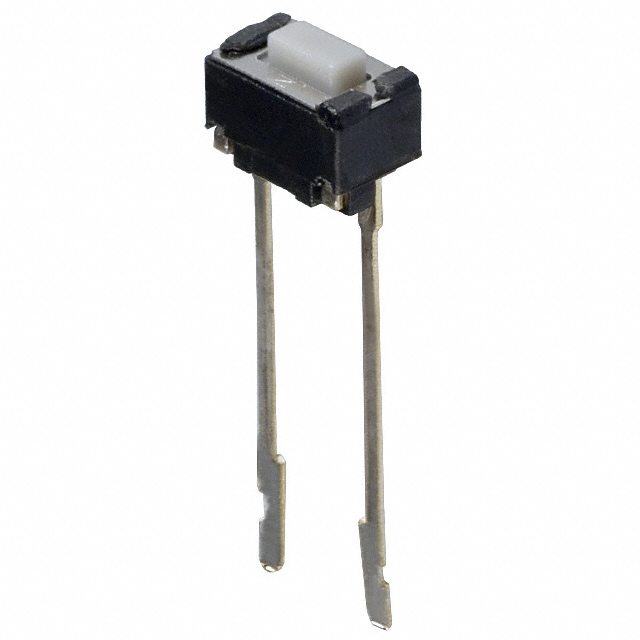

Panasonic Industrial Automation Sales EVQ-PJG04Q	100 gf	SPST-NO	4.3 mm	Non-Illuminated	Through Hole	Top Actuated	Standard	3.5 mm	6 mm	Tactile Feedback	0.05 A 12 VDC	Off-Mom	-30 ░C	85 °C	0.25 mm	PC Pin
Panasonic Industrial Automation Sales EVQ-PJJ05T	240 gf	SPST-NO		Non-Illuminated	Through Hole	Top Actuated	Standard	3.5 mm	6 mm	Tactile Feedback	0.05 A 12 VDC	Off-Mom	-30 ░C	85 °C	0.25 mm	PC Pin	5 mm	30000 Steps
