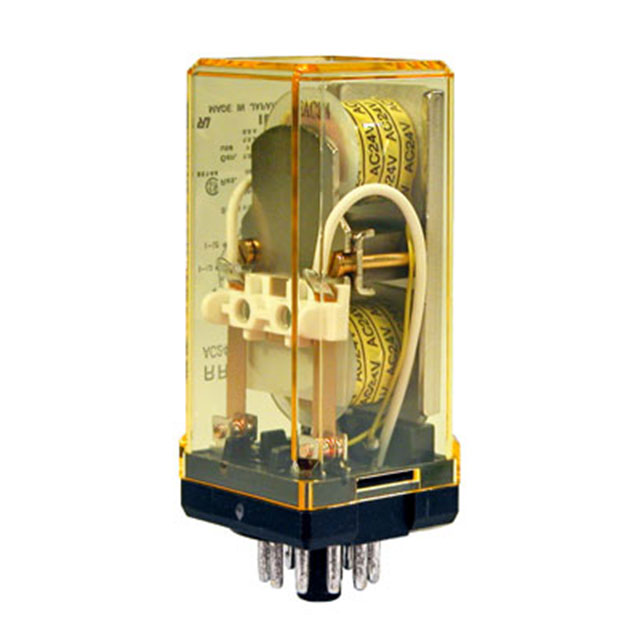

RR2KP-U Series
Manufacturer: IDEC
Beta
⌘K
RELAY PLUG-IN DPDT 10A 240VAC ROHS COMPLIANT: YES
| Part | Coil Resistance | Features | Operating Temperature [Max] | Operating Temperature [Min] | Coil Type | Termination Style | Termination Style | Mounting Type | Contact Material | Load - Max Switching | Contact Rating (Current) | Approval Agency | Coil Voltage | Coil Current | Switching Voltage | Contact Form | Operate Time | Relay Type | Must Operate Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 IDEC | 9.19 kOhms | Test Button | 40 °C | -5 °C | Dual Coil Latching | 11 Pin | Plug In | Socketable | Silver (Ag) | 300 W 2400 VA | 10 A | CSA UR | 240 VAC/DC | 10.6 mA | 30 VDC 240 VAC | DPDT (2 Form C) | 25 ms | General Purpose | 192 VAC |
IDEC | 7.74 kOhms | 40 °C | -5 °C | Dual Coil Latching | 11 Pin | Plug In | Socketable | Silver (Ag) | 300 W 2400 VA | 10 A | CSA UR | 220 VAC/DC | 10 mA | 30 VDC 240 VAC | DPDT (2 Form C) | 25 ms | General Purpose | 176 VAC | |
IDEC | 40 °C | -5 °C | Dual Coil Latching | 11 Pin | Plug In | Socketable | Silver (Ag) | 300 W 2400 VA | 10 A | CSA UR | 230 VAC | 30 VDC 240 VAC | DPDT (2 Form C) | 25 ms | General Purpose | 184 VAC | |||
 IDEC | 1.6 kOhms | 40 °C | -5 °C | Dual Coil Latching | 11 Pin | Plug In | Socketable | Silver (Ag) | 300 W 2400 VA | 10 A | CSA UR | 48 VDC | 0.03 A | 30 VDC 240 VAC | DPDT (2 Form C) | 25 ms | General Purpose | 38.4 VDC | |
IDEC | 3.5 Ohms | 40 °C | -5 °C | Dual Coil Latching | 11 Pin | Plug In | Socketable | Silver (Ag) | 300 W 2400 VA | 10 A | CSA UR | 6 VAC | 429 mA | 30 VDC 240 VAC | DPDT (2 Form C) | 25 ms | General Purpose | 4.8 VAC/DC | |
IDEC | 40 °C | -5 °C | Dual Coil Latching | 11 Pin | Plug In | Socketable | Silver (Ag) | 300 W 2400 VA | 10 A | CSA UR | 115 VAC | 30 VDC 240 VAC | DPDT (2 Form C) | 25 ms | General Purpose | 92 VAC/DC | |||
IDEC | 100 Ohms | Test Button | 40 °C | -5 °C | Dual Coil Latching | 11 Pin | Plug In | Socketable | Silver (Ag) | 300 W 2400 VA | 10 A | CSA UR | 12 VDC | 0.12 A | 30 VDC 240 VAC | DPDT (2 Form C) | 25 ms | General Purpose | 9.6 VDC |
IDEC | 7.96 kOhms | Test Button | 40 °C | -5 °C | Dual Coil Latching | 11 Pin | Plug In | Socketable | Silver (Ag) | 300 W 2400 VA | 10 A | CSA UR | 110 VDC | 13.8 mA | 30 VDC 240 VAC | DPDT (2 Form C) | 25 ms | General Purpose | 88 VDC |
 IDEC | 7.96 kOhms | 40 °C | -5 °C | Dual Coil Latching | 11 Pin | Plug In | Socketable | Silver (Ag) | 300 W 2400 VA | 10 A | CSA UR | 110 VDC | 13.8 mA | 30 VDC 240 VAC | DPDT (2 Form C) | 25 ms | General Purpose | 88 VDC | |
IDEC | 9.2 kOhms | 40 °C | -5 °C | Dual Coil Latching | 11 Pin | Plug In | Socketable | Silver (Ag) | 300 W 2400 VA | 10 A | CSA UR | 240 VAC/DC | 10.6 mA | 30 VDC 240 VAC | DPDT (2 Form C) | 25 ms | General Purpose | 192 VAC |
