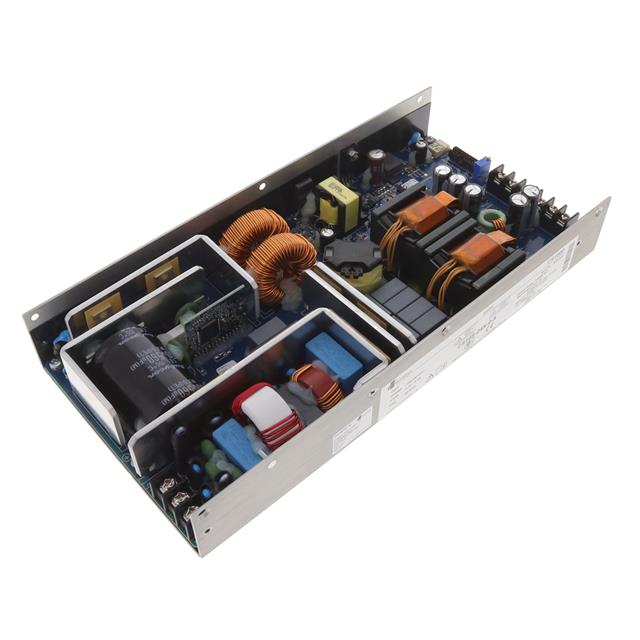

CS10S Series
Manufacturer: EXCELSYS / Advanced Energy
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K
AC/DC POWER SUPPLY SINGLE-OUT 24V 41.6A 1000W
| Part | Approval Agency | Applications | Type | Power (Watts) | Mounting Type | Standard Number | Efficiency | Voltage - Input (AC) Minimum | Voltage - Input (AC) Maximum | Features | Current - Output 1 | Voltage - Output 1 | Operating Temperature (Max) | Operating Temperature (Min) | Voltage - Isolation | Number of Outputs | Size / Dimension Length | Size / Dimension Height | Size / Dimension Width | Minimum Load Required |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EXCELSYS / Advanced Energy | CSA EN IEC UL | ITE (Commercial) Medical | Enclosed | 1 kW | Chassis Mount | 60601-1 62368-1 | 94 % | 85 VAC | 264 V | Adjustable Output PFC PMBus™ Remote Sense Universal Input | 41.6 A | 24 V | 85 °C | -40 °C | 4000 Vpk | 1 | 10.3 in | 1.54 in | 5 in | Yes |
 EXCELSYS / Advanced Energy | CSA EN IEC UL | ITE (Commercial) Medical | Enclosed | 1 kW | Chassis Mount | 60601-1 62368-1 | 95 % | 85 VAC | 264 V | Adjustable Output PFC PMBus™ Remote Sense Universal Input | 20.8 A | 48 V | 85 °C | -40 °C | 4000 Vpk | 1 | 10.3 in | 1.54 in | 5 in | Yes |
