0529-0 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN PIN RCPT .012-.017 SOLDER

Part	Operating Temperature [Min]	Operating Temperature [Max]	Tail Type	Flange Diameter [diameter]	Flange Diameter [diameter]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Contact Finish Thickness	Contact Finish Thickness	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Termination	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Length - Overall	Length - Overall	Contact Material	Socket Depth	Socket Depth	Contact Finish
Mill-Max Manufacturing Corp. 0529-0-15-01-10-02-10-0	-55 C	125 °C	No Tail	1.4 mm	0.055 in	0.017 "	0.012 "	0.3 mm	0.43 mm	2.54 µm	100 µin	1.02 mm	0.04 in	Solder	0.028 in	0.71 mm	0.16 in	4.06 mm	Beryllium Copper	0.14 in	3.56 mm	Tin-Lead
Mill-Max Manufacturing Corp. 0529-0-15-80-10-14-10-0	-55 C	125 °C	No Tail	1.4 mm	0.055 in	0.017 "	0.012 "	0.3 mm	0.43 mm	0.25 Ám	10 Áin	1.02 mm	0.04 in	Solder	0.028 in	0.71 mm	0.16 in	4.06 mm	Beryllium Copper	0.14 in	3.56 mm	Gold
Mill-Max Manufacturing Corp. 0529-0-15-01-10-27-10-0	-55 C	125 °C	No Tail	1.4 mm	0.055 in	0.017 "	0.012 "	0.3 mm	0.43 mm	0.76 Ám	30 Áin	1.02 mm	0.04 in	Solder	0.028 in	0.71 mm	0.16 in	4.06 mm	Beryllium Copper	0.14 in	3.56 mm	Gold

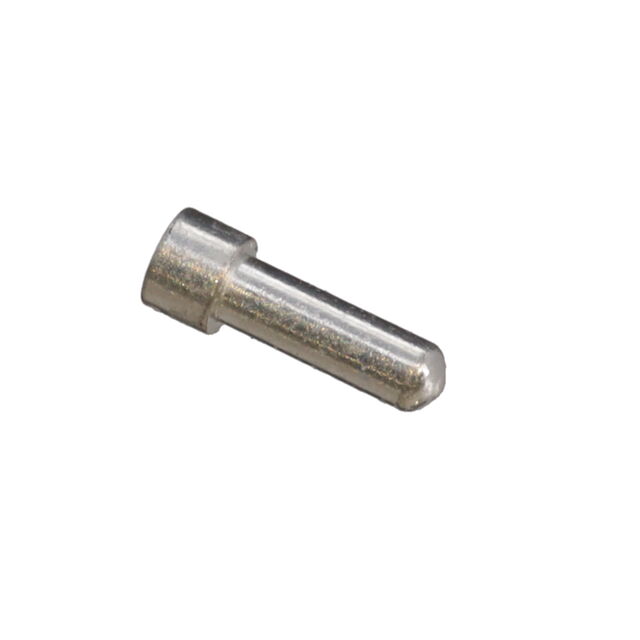

Mill-Max Manufacturing Corp. 0529-0-15-80-10-27-10-0	-55 C	125 °C	No Tail	1.4 mm	0.055 in	0.017 "	0.012 "	0.3 mm	0.43 mm	0.76 Ám	30 Áin	1.02 mm	0.04 in	Solder	0.028 in	0.71 mm	0.16 in	4.06 mm	Beryllium Copper	0.14 in	3.56 mm	Gold
Mill-Max Manufacturing Corp. 0529-0-15-01-10-14-10-0	-55 C	125 °C	No Tail	1.4 mm	0.055 in	0.017 "	0.012 "	0.3 mm	0.43 mm	0.25 Ám	10 Áin	1.02 mm	0.04 in	Solder	0.028 in	0.71 mm	0.16 in	4.06 mm	Beryllium Copper	0.14 in	3.56 mm	Gold
Mill-Max Manufacturing Corp. 0529-0-15-15-10-14-10-0	-55 C	125 °C	No Tail	1.4 mm	0.055 in	0.017 "	0.012 "	0.3 mm	0.43 mm	0.25 Ám	10 Áin	1.02 mm	0.04 in	Solder	0.028 in	0.71 mm	0.16 in	4.06 mm	Beryllium Copper	0.14 in	3.56 mm	Gold
