S2S3 Series

Catalog

OPTOISOLATOR 3.75KV TRIAC 4MFP

Part	Turn On Time (Max)	Current - On State (It (RMS)) (Max)	Zero Crossing Circuit	Current - LED Trigger (Ift) (Max)	Output Type	Mounting Type	Current - Hold (Ih)	Static dV/dt (Min)	Package / Case	Approval Agency	Voltage - Off State	Voltage - Isolation	Number of Channels	Operating Temperature (Max)	Operating Temperature (Min)	Voltage - Forward (Vf) (Typ)	Current - DC Forward (If) (Max)	Package Name
SHARP/Socle Technology S2S3000F	100 µs	50 mA	No	10 mA	Triac	Surface Mount	3.5 mA	100 V/µs	4-SMD Gull Wing	CSA UR	600 V	3750 VDC	1	100 °C	-30 °C	1.2 V	50 mA	4-Mini-Flat
SHARP/Socle Technology S2S3AD0F	100 µs	50 mA	No	10 mA	Triac	Surface Mount	3.5 mA	100 V/µs	4-SMD Gull Wing	CSA UL	600 V	3750 VDC	1	100 °C	-30 °C	1.2 V	50 mA	4-Mini-Flat

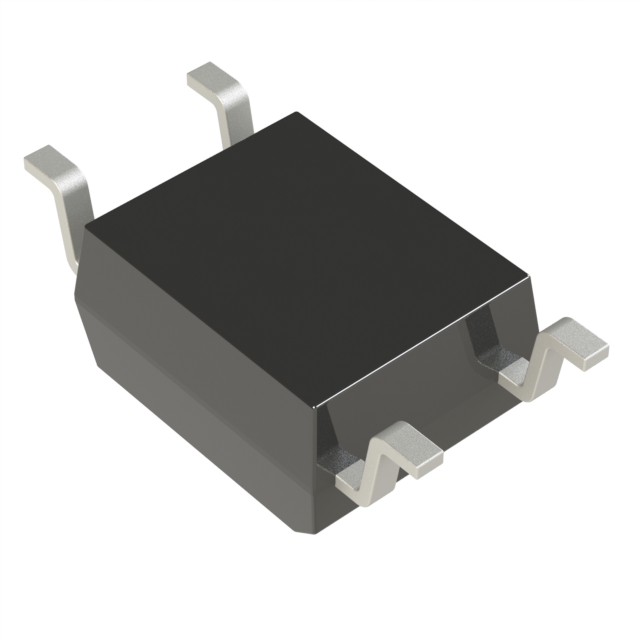

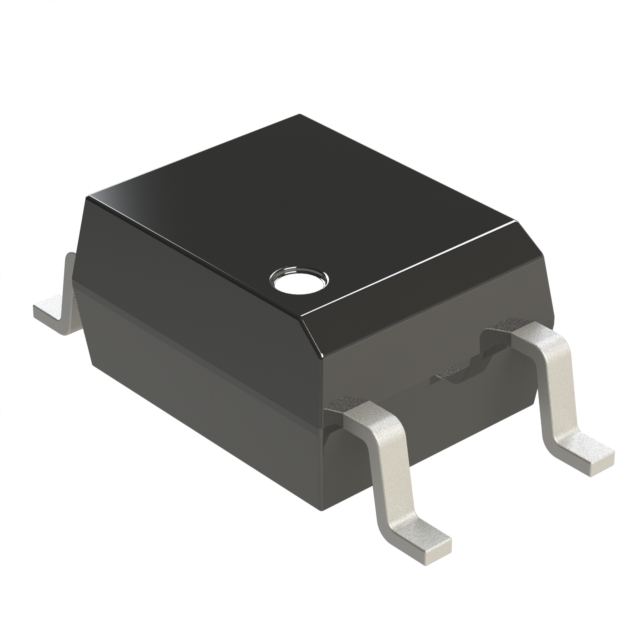

SHARP/Socle Technology S2S3A00F	100 µs	50 mA	No	10 mA	Triac	Surface Mount	3.5 mA	100 V/µs	4-SMD	CSA UR	600 V	3750 VDC	1	100 °C	-30 °C	1.2 V	50 mA	4-SMD
