HGP.1S Series

Manufacturer: LEMO

Catalog

CONN CIRC RCPT 2P GOLD SLDR CUP

Part	Shell Size - Insert	Shell Finish	Current Rating (Amps)	Primary Material	Mounting Feature	Features	Contact Finish - Mating	Material Flammability Rating	Mounting Type	Shielding	Contact Material	Orientation	Color	Ingress Protection	Operating Temperature [Min]	Operating Temperature [Max]	Shell Material	Insert Material	Number of Positions	Fastening Type	Applications	Connector Type	Body Material	Dielectric Material	Includes	Center Contact Plating	Body Finish	Mating Cycles	Contact Termination	Center Contact Material	Shield Termination	Housing Color	Impedance	Connector Style	Cable Group
LEMO HGP.1S.302.CLLPV	302	Chrome	15 A	Metal	Bulkhead - Rear Side Nut	Potted Vacuumtight	Gold	UL94 V-0	Panel Mount	Shielded	Brass Bronze	Keyed	Silver	IP68 - Dust Tight Waterproof	-20 ░C	100 °C	Brass	Polyetheretherketone (PEEK)	2	Push-Pull	Aviation Military	Receptacle Female Sockets and Male Pins
LEMO HGP.1S.304.CLLPV	304	Chrome	10 A	Metal	Bulkhead - Rear Side Nut	Potted Vacuumtight	Gold	UL94 V-0	Panel Mount	Shielded	Brass Bronze	Keyed	Silver	IP68 - Dust Tight Waterproof	-20 ░C	100 °C	Brass	Polyetheretherketone (PEEK)	4	Push-Pull	Aviation Military	Receptacle Female Sockets and Male Pins
LEMO HGP.1S.405.CTLPV	405	Chrome	4 A	Metal	Bulkhead - Rear Side Nut	Potted Vacuumtight	Gold		Panel Mount	Shielded	Bronze	Keyed	Silver	IP68 - Dust Tight Waterproof	-20 ░C	100 °C	Brass	Polytetrafluoroethylene (PTFE)	1	Push-Pull	Aviation Military	Receptacle Female Sockets

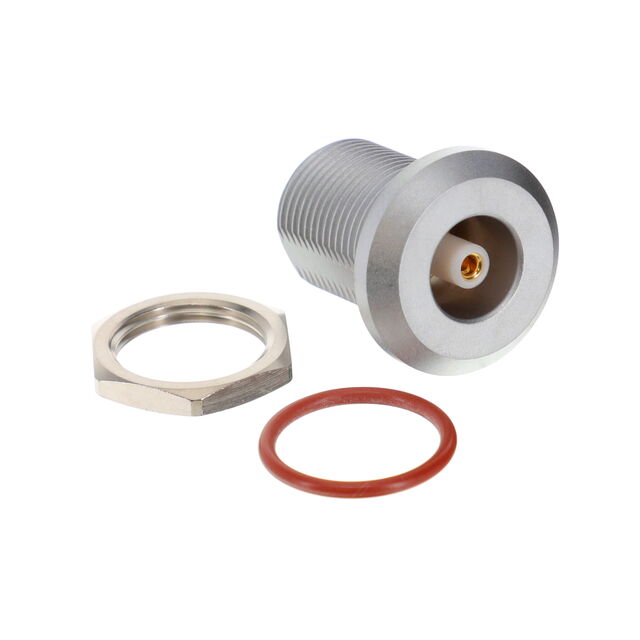

LEMO HGP.1S.250.CTLP					Bulkhead - Rear Side Nut				Panel Mount					IP68 - Dust Tight Waterproof	-20 ░C	100 °C				Push-Pull		Receptacle Female Socket	Brass	Polytetrafluoroethylene (PTFE)	1 Connector 1 Nut	Gold	Chrome	1000	Solder Cup	Beryllium Copper	Solder	Silver	50 Ohms	Coaxial	174 174A 178B 188A 196A 316B RG-122
LEMO HGP.1S.250.CTLPV					Bulkhead - Rear Side Nut	Vacuumtight			Panel Mount					IP68 - Dust Tight Waterproof	-20 ░C	100 °C				Push-Pull		Receptacle Female Socket	Brass	Polytetrafluoroethylene (PTFE)	1 Connector 1 Nut	Gold	Chrome	1000	Solder Cup	Beryllium Copper	Solder	Silver	50 Ohms	Coaxial	174 174A 178B 188A 196A 316B RG-122
LEMO HGP.1S.405.CTAPV	405	Chrome	8 A	Metal	Bulkhead - Rear Side Nut	Potted Vacuumtight	Gold		Panel Mount	Shielded	Brass	Keyed	Silver	IP68 - Dust Tight Waterproof	-20 ░C	100 °C	Brass	Polytetrafluoroethylene (PTFE)	1	Push-Pull	Aviation Military	Receptacle Male Pins

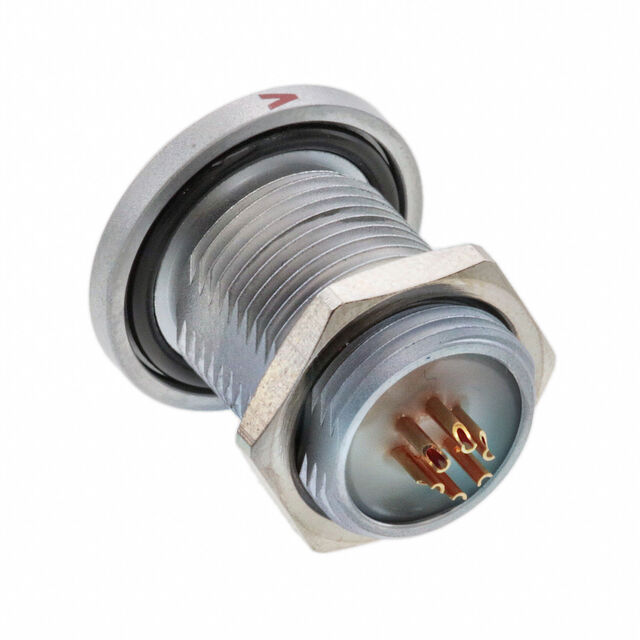

LEMO HGP.1S.306.CLLPV	306	Chrome	7 A	Metal	Bulkhead - Rear Side Nut	Potted Vacuumtight	Gold	UL94 V-0	Panel Mount	Shielded	Brass Bronze	Keyed	Silver	IP68 - Dust Tight Waterproof	-20 ░C	100 °C	Brass	Polyetheretherketone (PEEK)	6	Push-Pull	Aviation Military	Receptacle Female Sockets and Male Pins
LEMO HGP.1S.275.CTLP					Bulkhead - Rear Side Nut				Panel Mount					IP68 - Dust Tight Waterproof	-20 ░C	100 °C				Push-Pull		Receptacle Female Socket	Brass	Polytetrafluoroethylene (PTFE)	1 Connector 1 Nut	Gold	Chrome	1000	Solder Cup	Beryllium Copper	Solder	Silver	75 Ohms	Coaxial	179B 187A 223 302 400 59B RG-58C
LEMO HGP.1S.405.CLAP	405	Chrome	8 A	Metal	Bulkhead - Rear Side Nut	Potted	Gold	UL94 V-0	Panel Mount	Shielded	Brass	Keyed	Silver	IP68 - Dust Tight Waterproof	-20 ░C	100 °C	Brass	Polyetheretherketone (PEEK)	1	Push-Pull	Aviation Military	Receptacle Male Pins
