PBC32 Series

Manufacturer: Sullins Connector Solutions

Catalog

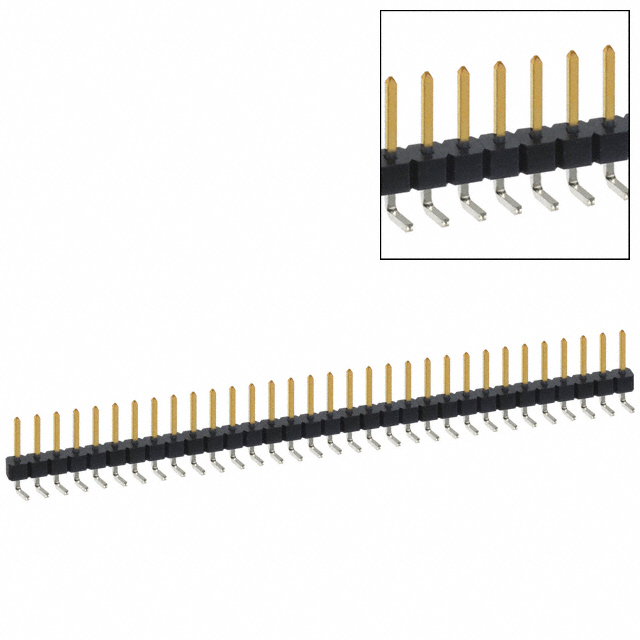

CONN HEADER R/A 32POS 2.54MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Termination	Connector Type	Insulation Height	Insulation Height	Contact Finish - Mating	Insulation Material	Material Flammability Rating	Insulation Color	Contact Type	Number of Positions Loaded	Mounting Type	Contact Material	Current Rating (Amps)	Contact Finish - Post	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows	Pitch - Mating	Pitch - Mating	Style	Shrouding	Contact Shape	Contact Length - Post [custom]	Contact Length - Post [custom]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Fastening Type	Contact Length - Mating	Contact Length - Mating	Overall Contact Length [x]	Overall Contact Length [x]	Contact Length - Post	Contact Length - Post	Number of Rows [custom]	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Positions	Overall Contact Length	Overall Contact Length	Insulation Height [z]	Insulation Height [z]

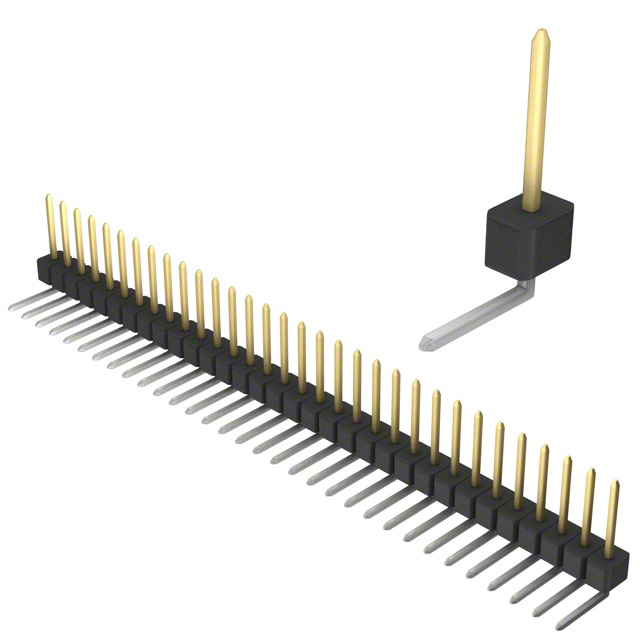

Sullins Connector Solutions PBC32SGBN	2.54 µm	100 µin	Solder	Header Breakaway	3.56 mm	0.14 in	Gold	Polybutylene Terephthalate (PBT)	UL94 V-0	Black	Male Pin	All	Right Angle Through Hole	Phosphor Bronze	3 A	Tin	-65 ░C	125 °C	1	0.1 "	2.54 mm	Board to Board Cable	Unshrouded	Square	5.08 mm	0.2 "	0.25 µm	10 µin	Push-Pull	8.08 mm	0.318 in
Sullins Connector Solutions PBC32SAAN	2.54 µm	100 µin	Solder	Header Breakaway	2.54 mm	0.1 in	Gold	Polybutylene Terephthalate (PBT)	UL94 V-0	Black	Male Pin	All	Through Hole	Phosphor Bronze	3 A	Tin	-65 ░C	125 °C	1	0.1 "	2.54 mm	Board to Board Cable	Unshrouded	Square			0.25 µm	10 µin	Push-Pull	5.84 mm	0.23 in	11.43 mm	0.45 in	3.05 mm	0.12 in
Sullins Connector Solutions PBC32DAAN	2.54 µm	100 µin	Solder	Header Breakaway	2.54 mm	0.1 in	Gold	Polybutylene Terephthalate (PBT)	UL94 V-0	Black	Male Pin	All	Through Hole	Phosphor Bronze	3 A	Tin	-65 ░C	125 °C		0.1 "	2.54 mm	Board to Board Cable	Unshrouded	Square			0.25 µm	10 µin	Push-Pull	5.84 mm	0.23 in	11.43 mm	0.45 in	3.05 mm	0.12 in	2	0.1 in	2.54 mm	64

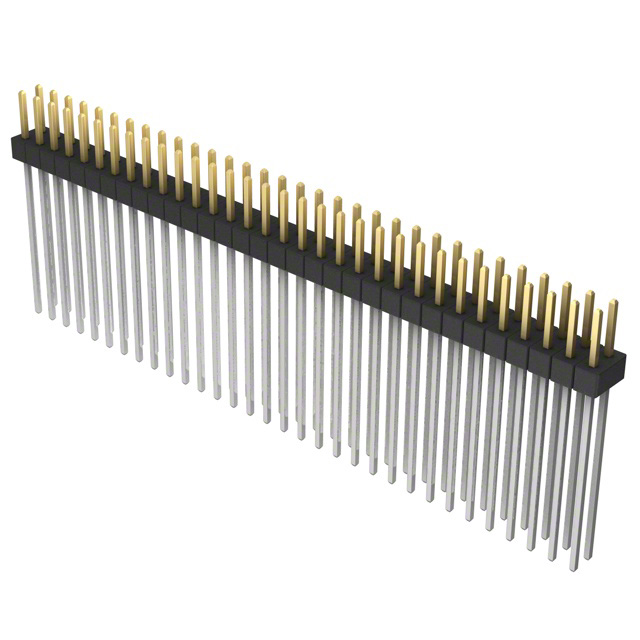

Sullins Connector Solutions PBC32DAHN	2.54 µm	100 µin	Solder	Header Breakaway	2.54 mm	0.1 in	Gold	Polybutylene Terephthalate (PBT)	UL94 V-0	Black	Male Pin	All	Through Hole	Phosphor Bronze	3 A	Tin	-65 ░C	125 °C		0.1 "	2.54 mm	Board to Board Cable	Unshrouded	Square			0.25 µm	10 µin	Push-Pull	5.84 mm	0.23 in			20.83 mm	0.82 in	2	0.1 in	2.54 mm	64	29.21 mm	1.15 in

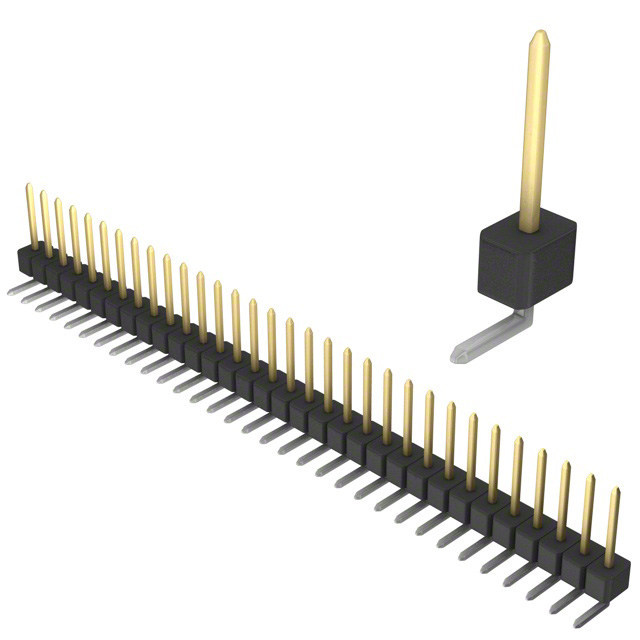

Sullins Connector Solutions PBC32SGAN	2.54 µm	100 µin	Solder	Header Breakaway	3.56 mm	0.14 in	Gold	Polybutylene Terephthalate (PBT)	UL94 V-0	Black	Male Pin	All	Right Angle Through Hole	Phosphor Bronze	3 A	Tin	-65 ░C	125 °C	1	0.1 "	2.54 mm	Board to Board Cable	Unshrouded	Square			0.25 µm	10 µin	Push-Pull	8.08 mm	0.318 in			2.54 mm	0.1 in
Sullins Connector Solutions PBC32SAGN	2.54 µm	100 µin	Solder	Header Breakaway	2.54 mm	0.1 in	Gold	Polybutylene Terephthalate (PBT)	UL94 V-0	Black	Male Pin	All	Through Hole	Phosphor Bronze	3 A	Tin	-65 ░C	125 °C	1	0.1 "	2.54 mm	Board to Board Cable	Unshrouded	Square			0.25 µm	10 µin	Push-Pull	5.84 mm	0.23 in			18.29 mm	0.72 "					26.67 mm	1.05 in
Sullins Connector Solutions PBC32DBAN	2.54 µm	100 µin	Solder	Header Breakaway			Gold	Polybutylene Terephthalate (PBT)	UL94 V-0	Black	Male Pin	All	Right Angle Through Hole	Phosphor Bronze	3 A	Tin	-65 ░C	125 °C		0.1 "	2.54 mm	Board to Board Cable	Unshrouded	Square			0.25 µm	10 µin	Push-Pull	5.84 mm	0.23 in			2.54 mm	0.1 in	2	0.1 in	2.54 mm	64			6.1 mm	0.24 in

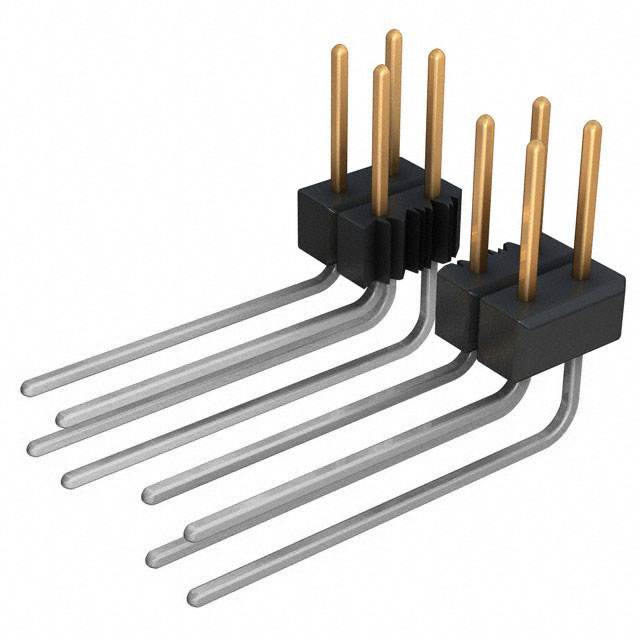

Sullins Connector Solutions PBC32DBEN	2.54 µm	100 µin	Solder	Header Breakaway			Gold	Polybutylene Terephthalate (PBT)	UL94 V-0	Black	Male Pin	All	Right Angle Through Hole	Phosphor Bronze	3 A	Tin	-65 ░C	125 °C		0.1 "	2.54 mm	Board to Board Cable	Unshrouded	Square			0.25 µm	10 µin	Push-Pull	5.84 mm	0.23 in			12.7 mm	0.5 "	2	0.1 in	2.54 mm	64			6.1 mm	0.24 in
Sullins Connector Solutions PBC32DBBN	2.54 µm	100 µin	Solder	Header Breakaway			Gold	Polybutylene Terephthalate (PBT)	UL94 V-0	Black	Male Pin	All	Right Angle Through Hole	Phosphor Bronze	3 A	Tin	-65 ░C	125 °C		0.1 "	2.54 mm	Board to Board Cable	Unshrouded	Square	5.08 mm	0.2 "	0.25 µm	10 µin	Push-Pull	5.84 mm	0.23 in					2	0.1 in	2.54 mm	64			6.1 mm	0.24 in
Sullins Connector Solutions PBC32SAHN	2.54 µm	100 µin	Solder	Header Breakaway	2.54 mm	0.1 in	Gold	Polybutylene Terephthalate (PBT)	UL94 V-0	Black	Male Pin	All	Through Hole	Phosphor Bronze	3 A	Tin	-65 ░C	125 °C	1	0.1 "	2.54 mm	Board to Board Cable	Unshrouded	Square			0.25 µm	10 µin	Push-Pull	5.84 mm	0.23 in			20.83 mm	0.82 in					29.21 mm	1.15 in
