395-022 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

.100" (2.54MM) PITCH CARD EDGE CONNECTOR ROHS COMPLIANT: YES

...

Part	Material - Insulation	Termination Rows [custom]	Contact Type	Contact Finish	Contact Material	Number of Rows [custom]	Gender	Contact Finish Thickness	Contact Finish Thickness	Card Type	Read Out	Number of Positions	Color	Flange Feature	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions/Bay/Row	Features	Termination	Card Thickness [Max]	Card Thickness [Min]	Pitch	Pitch	Mounting Type	Termination Rows	Flange Feature [diameter]	Flange Feature [diameter]	Number of Rows

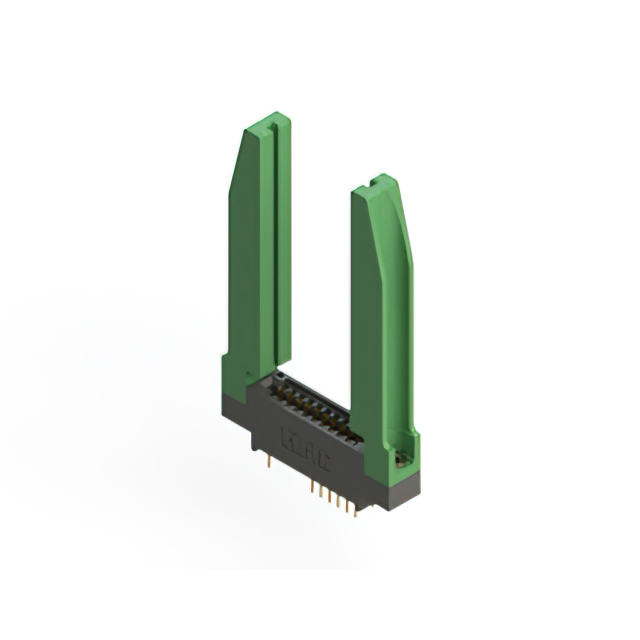

EDAC Inc. 395-022-524-878	Polyester Thermoplastic	2	Cantilever	Gold	Copper Alloy	2	Female	0.25 Ám	10 Áin	Non Specified - Dual Edge	Dual	22	Black	4-40 Threaded Insert Top Mount Opening	-40 C	105 ░C	11	Card Guides	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	Through Hole

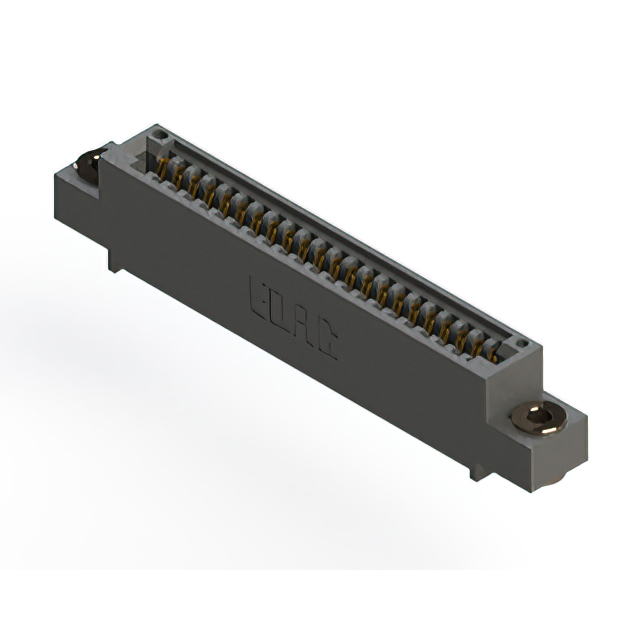

EDAC Inc. 395-022-520-403	Polyester Thermoplastic		Cantilever	Gold	Copper Alloy		Female	0.25 Ám	10 Áin	Non Specified - Single Edge	Single	22	Black	Floating Bobbin Top Mount Opening	-40 C	105 ░C	22		Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	Through Hole	1	0.116 "	2.95 mm	1

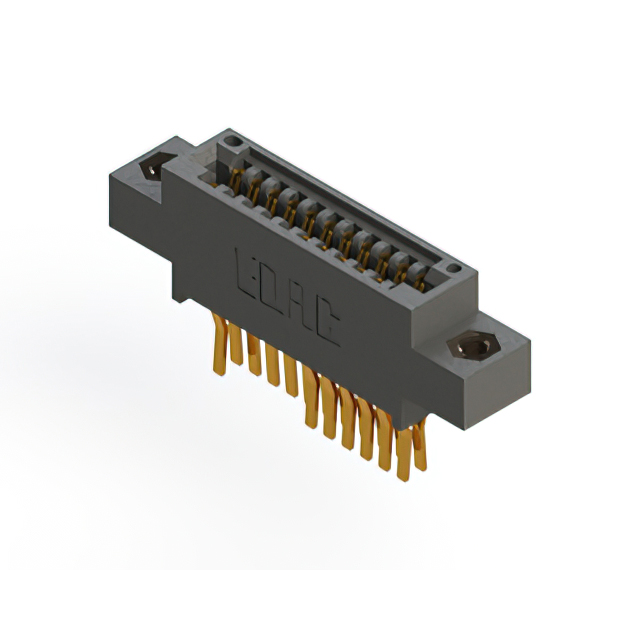

EDAC Inc. 395-022-560-807	Polyester Thermoplastic	2	Cantilever	Gold	Copper Alloy	2	Female	0.25 Ám	10 Áin	Non Specified - Dual Edge	Dual	22	Black	M3 Threaded Insert Top Mount Opening	-40 C	105 ░C	11	Card Extender	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	Board Edge Straddle Mount

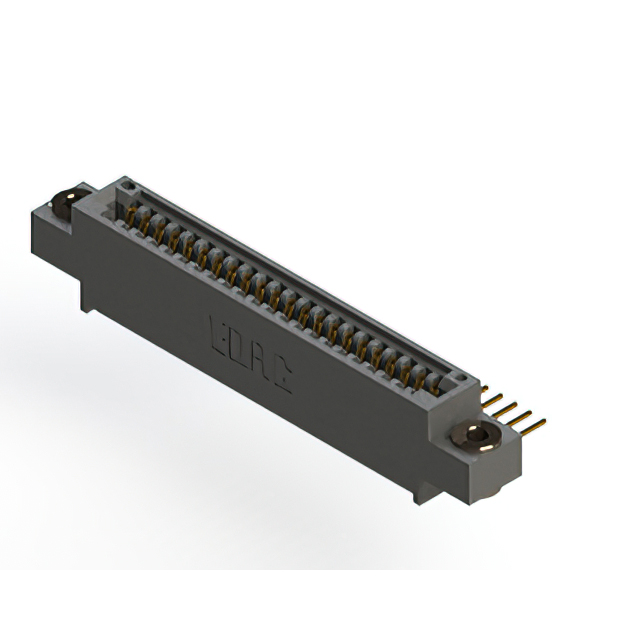

EDAC Inc. 395-022-559-603	Polyester Thermoplastic		Cantilever	Gold	Copper Alloy		Female	0.25 Ám	10 Áin	Non Specified - Single Edge	Single	22	Black	Floating Bobbin Top Mount Opening	-40 C	105 ░C	22		Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	Right Angle Through Hole	1	0.116 "	2.95 mm	1

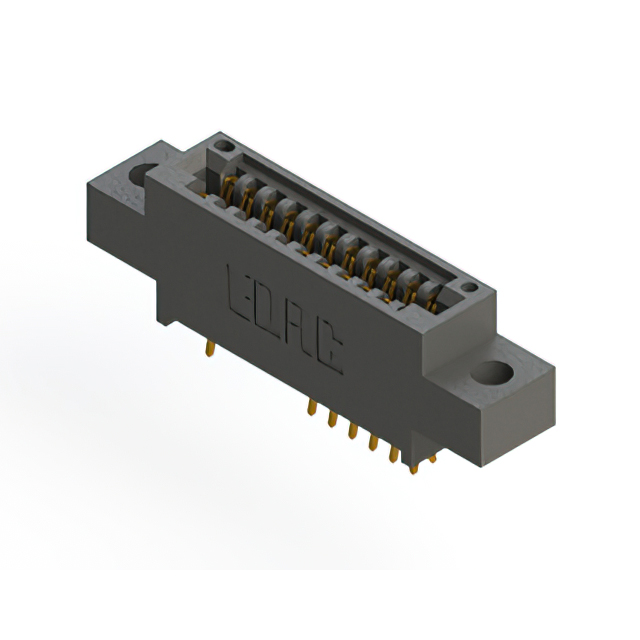

EDAC Inc. 395-022-556-804	Polyester Thermoplastic	2	Cantilever	Gold	Copper Alloy	2	Female	0.25 Ám	10 Áin	Non Specified - Dual Edge	Dual	22	Black		-40 C	105 ░C	11	Card Extender	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	Board Edge Straddle Mount		0.156 "	3.96 mm

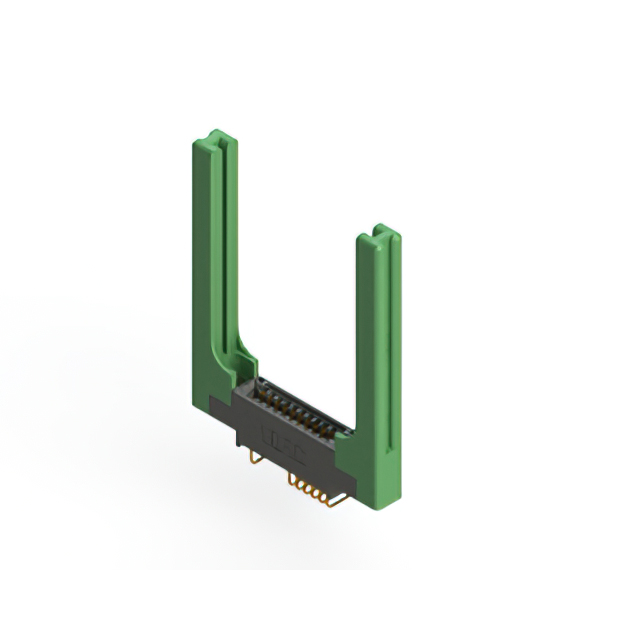

EDAC Inc. 395-022-559-858	Polyester Thermoplastic	2	Cantilever	Gold	Copper Alloy	2	Female	0.25 Ám	10 Áin	Non Specified - Dual Edge	Dual	22	Black	4-40 Threaded Insert Top Mount Opening	-40 C	105 ░C	11	Card Guides	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	Right Angle Through Hole
EDAC Inc. 395-022-555-507	Polyester Thermoplastic	2	Cantilever	Gold	Copper Alloy	2	Female	0.25 Ám	10 Áin	Non Specified - Dual Edge	Dual	22	Black	M3 Threaded Insert Top Mount Opening	-40 C	105 ░C	11	Card Extender	Solder Eyelet(s)	0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	Board Edge Straddle Mount

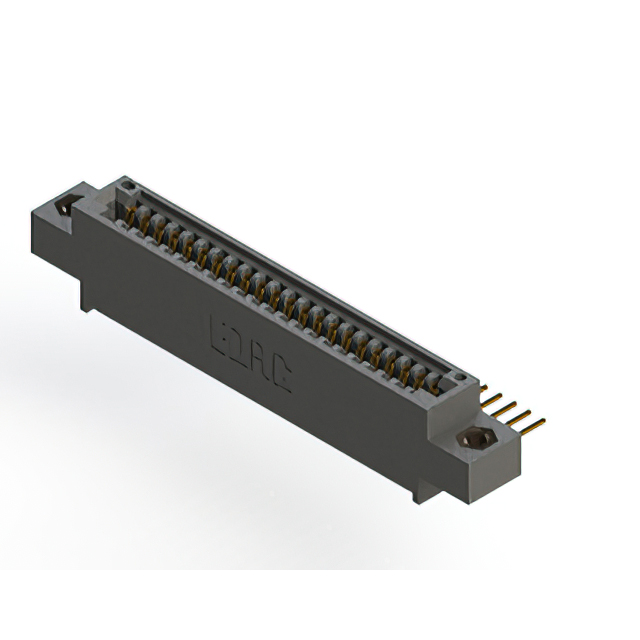

EDAC Inc. 395-022-559-607	Polyester Thermoplastic		Cantilever	Gold	Copper Alloy		Female	0.25 Ám	10 Áin	Non Specified - Single Edge	Single	22	Black	M3 Threaded Insert Top Mount Opening	-40 C	105 ░C	22		Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	Right Angle Through Hole	1			1

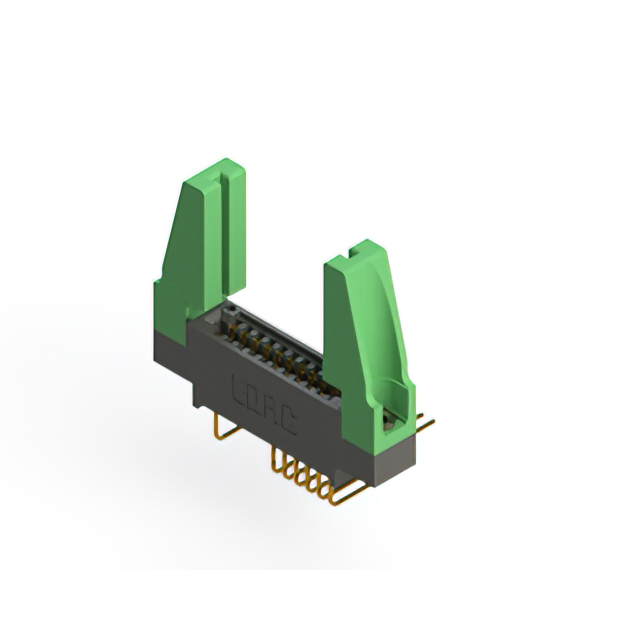

EDAC Inc. 395-022-558-888	Polyester Thermoplastic	2	Cantilever	Gold	Copper Alloy	2	Female	0.25 Ám	10 Áin	Non Specified - Dual Edge	Dual	22	Black	4-40 Threaded Insert Top Mount Opening	-40 C	105 ░C	11	Card Guides	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	Right Angle Through Hole

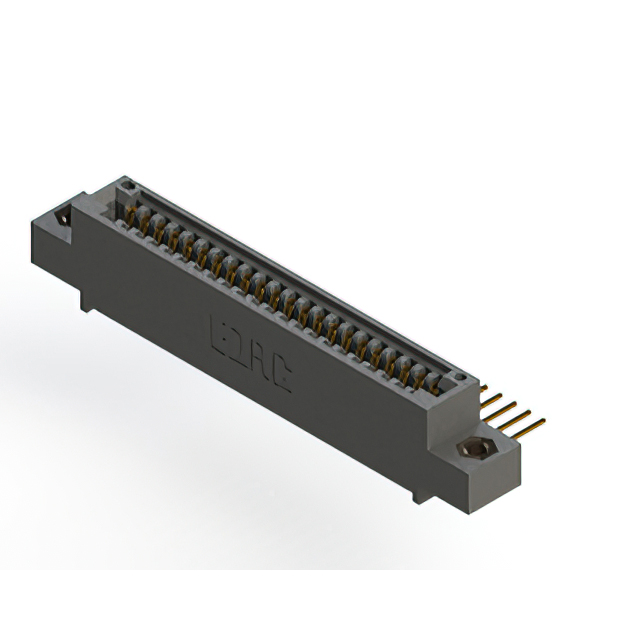

EDAC Inc. 395-022-559-407	Polyester Thermoplastic		Cantilever	Gold	Copper Alloy		Female	0.25 Ám	10 Áin	Non Specified - Single Edge	Single	22	Black	M3 Threaded Insert Top Mount Opening	-40 C	105 ░C	22		Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	Right Angle Through Hole	1			1
