OT Series

Catalog

THERMOELECTRIC PELTIER MODULES THERMOELECTRIC COOLER, MINIATURE GEOMETRIC, 1.3W

Part	Operating Temperature	Current - Max [Max]	Voltage - Max [Max]	Height [z]	Qmax @ Th	Features	Resistance	Size / Dimension [x]	Size / Dimension [y]	Delta Tmax @ Th	Number of Stages	Height

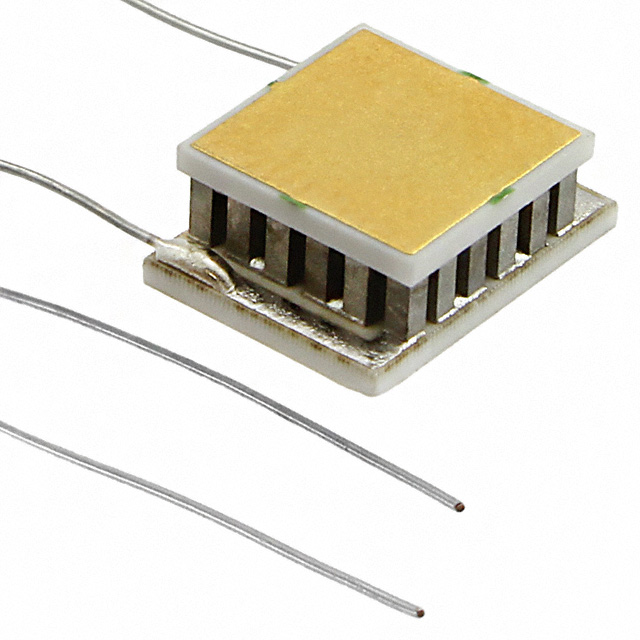

Laird Thermal Systems, Inc. 430003-501	80 °C	1.2 A	2.1 V	3.02 mm	1.5 W	Lead Wires Non-Sealed	1.57 Ohms	8.3 mm	6.2 mm	67 °C	1
Laird Thermal Systems, Inc. 430005-518	80 °C	800 mA	3.7 V		1.7 W	Lead Wires Sealed - Epoxy	4.17 Ohms	8.13 mm	6.5 mm	67 °C	1	2.44 mm

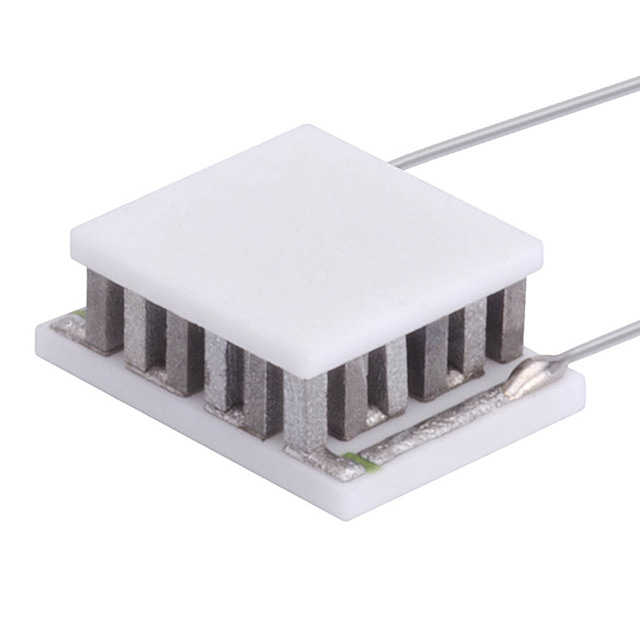

Laird Thermal Systems, Inc. 430002-501	80 °C	800 mA	2.1 V		1 W	Lead Wires Non-Sealed	2.35 Ohms	6.5 mm	4.9 mm	67 °C	1	2.44 mm
