MP2145 Series
Manufacturer: Monolithic Power Systems Inc.
Beta
⌘K

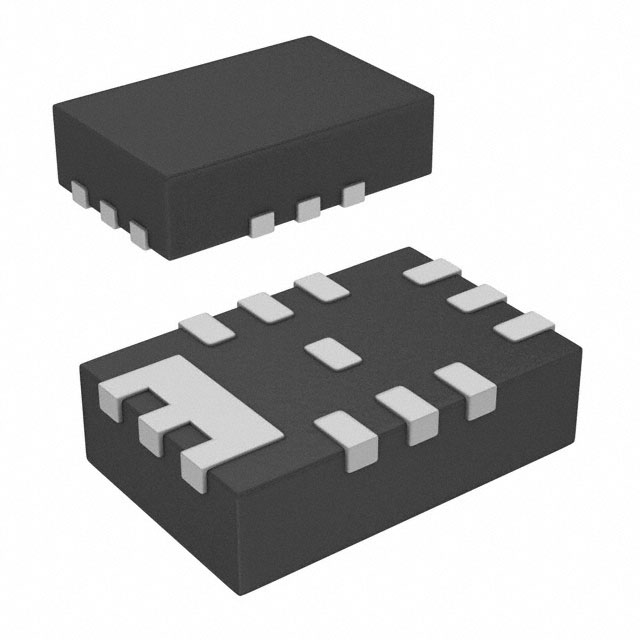

DC-DC SWITCHING SYNCHRONOUS BUCK REGULATOR, 2.8V-5.5V IN, 600MV TO 5.5V OUT, 6A, 1.2MHZ, QFN-12
| Part | Voltage - Input (Min) [Min] | Mounting Type | Topology | Voltage - Input (Max) [Max] | Package / Case | Supplier Device Package | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Output (Max) [Max] | Output Configuration | Voltage - Output (Min/Fixed) | Output Type | Frequency - Switching | Number of Outputs | Synchronous Rectifier | Function | Current - Output | Voltage - Output | Outputs and Type | Main Purpose | Voltage - Input [Min] | Voltage - Input [Max] | Regulator Topology | Contents | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Monolithic Power Systems Inc. | 2.8 V | Surface Mount | Buck | 5.5 V | 12-PowerVFQFN | 12-QFN (2x3) | -40 C | 125 °C | 5.5 V | Positive | 0.6 V | Adjustable | 1.2 MHz | 1 | Step-Down | 6 A | |||||||||
 Monolithic Power Systems Inc. | 1.2 MHz | 6 A | 1.2 V | 1 Non-Isolated Output | DC/DC Step Down | 2.8 V | 5.5 V | Buck | Board(s) | MP2145 |
