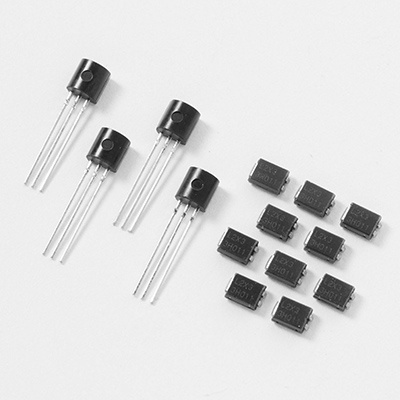

S6N1 Series

SCR 600V 1A DO214 3L

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

SCR 600V 1A DO214 3L

Part	Mounting Type	Current - Off State (Max) [Max]	SCR Type	Current - On State (It (AV)) (Max) [Max]	Current - Non Rep. Surge 50, 60Hz (Itsm)	Voltage - Gate Trigger (Vgt) (Max) [Max]	Voltage - On State (Vtm) (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Current - Hold (Ih) (Max) [Max]	Package / Case	Supplier Device Package	Voltage - Off State	Current - Gate Trigger (Igt) (Max) [Max]
Littelfuse/Commercial Vehicle Products S6N1RP	Surface Mount	10 µA	Standard Recovery	640 mA	25 A 30 A	1.5 V	1.6 V	125 °C	-40 °C	30 mA	DO-214AA SMB (3 Leads) Compak	Compak	600 V	10 mA

Catalog

SCR 600V 1A DO214 3L

Key Features

• RoHS compliant

• Glass-passivated junctions

• Voltage capability up to 600 V

• Surge capability up to 30 A

Description

Excellent for lower current heat, lamp, and audible alarm controls for home goods. Standard phase control SCRs are triggered with few milliamperes of current at less than 1.5V potential.
