PRG15BC Series
Manufacturer: Murata Power Solutions Inc.
Beta
⌘K

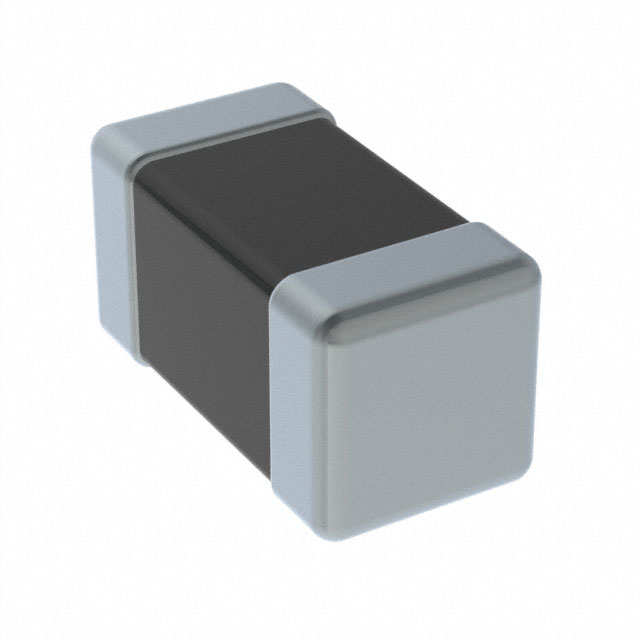

PTC RESET FUSE 24V 47MA 0402
| Part | Resistance - 25°C (Typ) | Mounting Type | Thickness (Max) [Max] [custom] | Thickness (Max) [Max] [custom] | Package / Case | Type | Current - Max [Max] | Voltage - Max [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Current - Trip (It) | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Current - Hold (Ih) (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Murata Power Solutions Inc. | 18 Ohms | Surface Mount | 0.043 " | 1.1 mm | 0402 (1005 Metric) | Ceramic | 1.2 A | 24 V | 85 °C | -20 C | 98 mA | 1 mm | 0.02 in | 0.5 mm | 0.039 in | 47 mA |
Murata Power Solutions Inc. |
