AE40-EW Series

Manufacturer: CUI Inc.

Catalog

DC/DC DIN RAIL SUPPLY 15V 40W

Part	Efficiency	Input Type	Operating Temperature [Max]	Operating Temperature [Min]	DC Voltage - Input (Max) [Max]	Current - Output (Max) [Max]	Number of Outputs	Voltage - Isolation	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Power (Watts)	DC Voltage - Input (Min) [Min]	Voltage - Output 1	Voltage - Input (Min) [Min]	Features	Package / Case	Voltage - Input (Max) [Max]	Applications	Type	Mounting Type

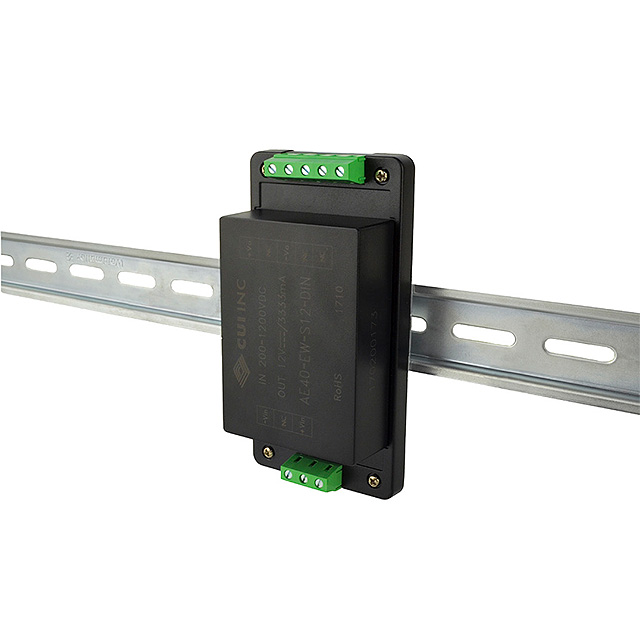

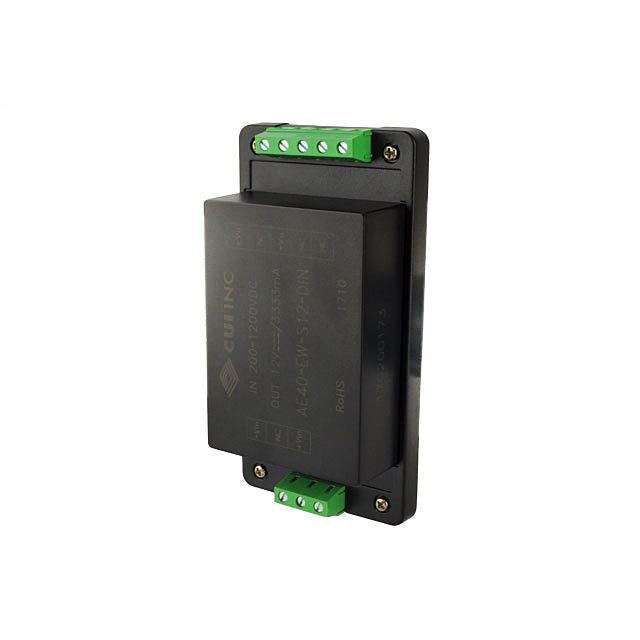

CUI Inc. AE40-EW-S15-DIN	84 %	DC	70 °C	-25 °C	1200 V	2.67 A	1	4000 V	135 mm	39 mm	1.54 in	2.76 "	70 mm	5.32 "	40 W	200 V	15 V

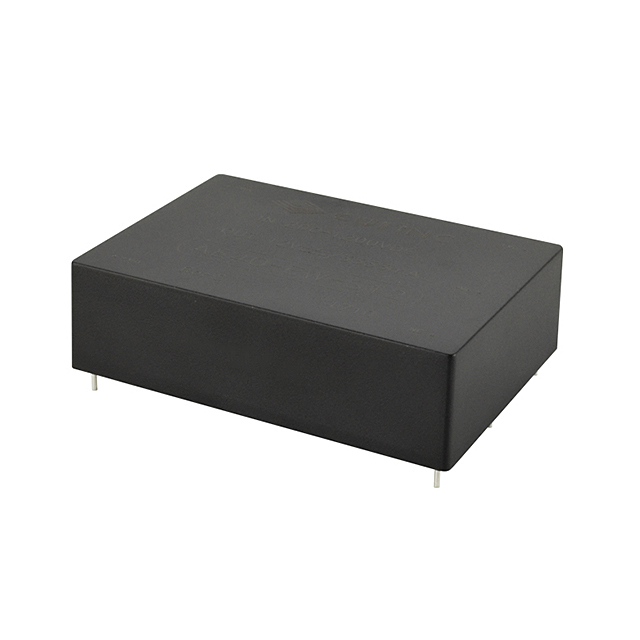

CUI Inc. AE40-EW-S24	84 %		70 °C	-25 °C		1.67 A	1	4000 V	89 mm	25 mm	0.98 in	2.5 "	63.5 mm	3.5 "	40 W		24 V	200 V	OCP OVP SCP	7-DIP Module	1200 V	ITE (Commercial)	Isolated Module	Through Hole
CUI Inc. AE40-EW-S15	84 %		70 °C	-25 °C		2.67 A	1	4000 V	89 mm	25 mm	0.98 in	2.5 "	63.5 mm	3.5 "	40 W		15 V	200 V	OCP OVP SCP	7-DIP Module	1200 V	ITE (Commercial)	Isolated Module	Through Hole
CUI Inc. AE40-EW-S24-DIN	84 %	DC	70 °C	-25 °C	1200 V	1.67 A	1	4000 V	135 mm	39 mm	1.54 in	2.76 "	70 mm	5.32 "	40 W	200 V	24 V

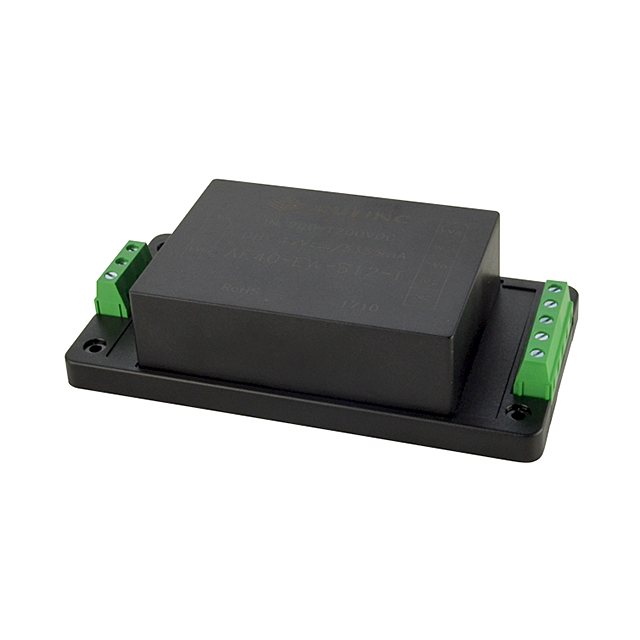

CUI Inc. AE40-EW-S12-T	83 %		70 °C	-25 °C		3.33 A	1	4000 V	135 mm	33.5 mm	1.32 in	2.76 "	70 mm	5.32 "	40 W		12 V	200 V			1200 V		Enclosed	Chassis Mount
