MS9238 Series

Catalog

FAN AXIAL 92X38MM 24VDC WIRE

Part	Current Rating (Amps)	Material - Frame	Material - Blade	Width [y]	Voltage - Rated	Fan Type	Weight [custom]	Weight [custom]	Features	Termination	Bearing Type	Static Pressure	Static Pressure	Noise	RPM	Size / Dimension [y]	Size / Dimension [x]	Air Flow	Air Flow	Ingress Protection
Mechatronics Fan Group MS9238M24B1+6-FHR	480 mA	Plastic	Plastic	38 mm	24 VDC	Tubeaxial	0.446 lb	202.3 g	Auto Restart PWM Control Speed Sensor (Tach)	4 Wire Leads	Ball	216.7 Pa	0.87 in H2O	56 dB	6000 RPM	92 mm	92 mm	3.51 m³/min	125.3 CFM
Mechatronics Fan Group MS9238M24B-FHR	480 mA	Plastic	Plastic	38 mm	24 VDC	Tubeaxial	0.446 lb	202.3 g	Auto Restart	2 Wire Leads	Ball	216.7 Pa	0.87 in H2O	56 dB	6000 RPM	92 mm	92 mm	3.51 m³/min	125.3 CFM
Mechatronics Fan Group MS9238M12B1+6-FHR-2EM	1.01 A	Plastic	Plastic	38 mm	12 VDC	Tubeaxial	0.446 lb	202.3 g	Auto Restart PWM Control Speed Sensor (Tach)	4 Wire Leads	Ball	216.7 Pa	0.87 in H2O	56 dB	6000 RPM	92 mm	92 mm	3.51 m³/min	125.3 CFM	IP68 - Dust Tight Waterproof

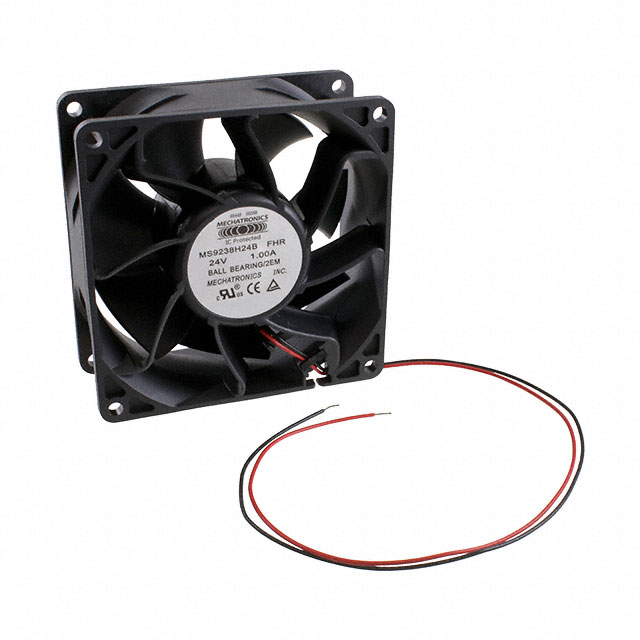

Mechatronics Fan Group MS9238H24B-FHR-2EM	1.1 A	Plastic	Plastic	38 mm	24 VDC	Tubeaxial	0.446 lb	202.3 g	Auto Restart	2 Wire Leads	Ball	361.2 Pa	1.45 in H2O	65 dB	8000 RPM	92 mm	92 mm	4.67 m³/min	166.7 CFM	IP68 - Dust Tight Waterproof
Mechatronics Fan Group MS9238L24B1+6-FHR		Plastic	Plastic	38 mm	24 VDC	Tubeaxial	0.446 lb	202.3 g	Auto Restart PWM Control Speed Sensor (Tach)	4 Wire Leads	Ball	99.6 Pa	0.4 in H2O	37 dB	4000 RPM	92 mm	92 mm	2.26 m³/min	80.7 CFM
Mechatronics Fan Group MS9238L24B-FHR-2EM		Plastic	Plastic	38 mm	24 VDC	Tubeaxial	0.446 lb	202.3 g	Auto Restart	2 Wire Leads	Ball	99.6 Pa	0.4 in H2O	37 dB	4000 RPM	92 mm	92 mm	2.26 m³/min	80.7 CFM	IP68 - Dust Tight Waterproof
Mechatronics Fan Group MS9238L24B-FHR		Plastic	Plastic	38 mm	24 VDC	Tubeaxial	0.446 lb	202.3 g	Auto Restart	2 Wire Leads	Ball	99.6 Pa	0.4 in H2O	37 dB	4000 RPM	92 mm	92 mm	2.26 m³/min	80.7 CFM
Mechatronics Fan Group MS9238L48B-FHR-2EM		Plastic	Plastic	38 mm	48 VDC	Tubeaxial	0.446 lb	202.3 g	Auto Restart	2 Wire Leads	Ball	99.6 Pa	0.4 in H2O	37 dB	4000 RPM	92 mm	92 mm	2.26 m³/min	80.7 CFM	IP68 - Dust Tight Waterproof
Mechatronics Fan Group MS9238H48B1+6-FHR-2EM	0.47 A	Plastic	Plastic	38 mm	48 VDC	Tubeaxial	0.446 lb	202.3 g	Auto Restart PWM Control Speed Sensor (Tach)	4 Wire Leads	Ball	361.2 Pa	1.45 in H2O	65 dB	8000 RPM	92 mm	92 mm	4.67 m³/min	166.7 CFM	IP68 - Dust Tight Waterproof

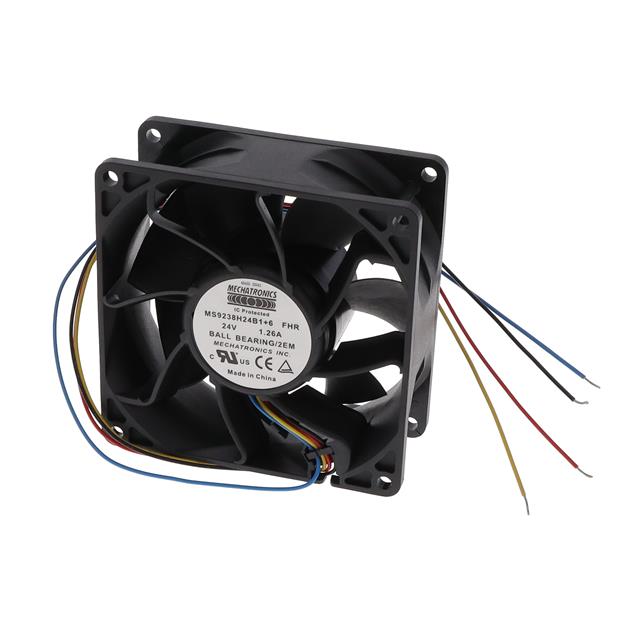

Mechatronics Fan Group MS9238H24B1+6-FHR-2EM	1.1 A	Plastic	Plastic	38 mm	24 VDC	Tubeaxial	0.446 lb	202.3 g	Auto Restart PWM Control Speed Sensor (Tach)	4 Wire Leads	Ball	361.2 Pa	1.45 in H2O	65 dB	8000 RPM	92 mm	92 mm	4.67 m³/min	166.7 CFM	IP68 - Dust Tight Waterproof
