337-031 Series
Manufacturer: EDAC Inc.
Beta
⌘K

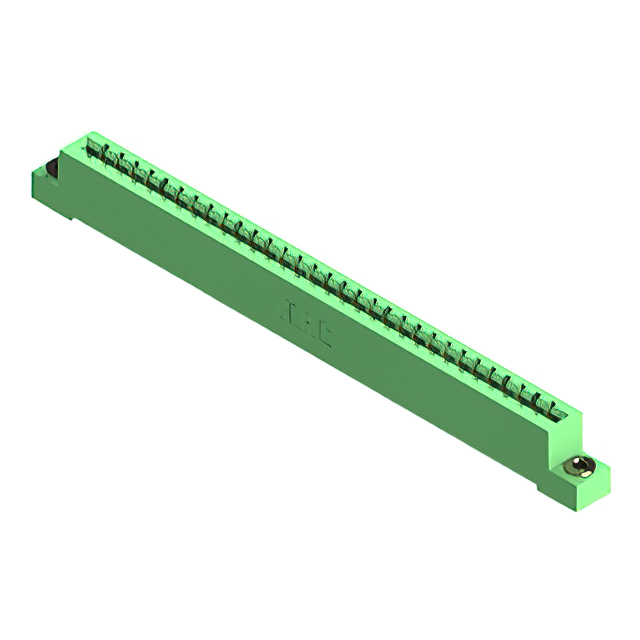

CONN EDGE SGL FMALE 31POS 0.156
| Part | Material - Insulation | Termination Rows | Number of Rows | Number of Positions/Bay/Row [custom] | Color | Contact Finish Thickness | Contact Finish Thickness | Read Out | Gender | Mounting Type | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Pitch | Pitch | Contact Material | Contact Type | Card Thickness [Max] | Card Thickness [Min] | Card Type | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions [custom] | Termination | Contact Finish | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Polyester Thermoplastic | 1 | 1 | 31 | Green | 0.25 Ám | 10 Áin | Single | Female | Through Hole | Flush Mount Top Opening Unthreaded | 3.25 mm | 0.128 " | 3.96 mm | 0.156 in | Copper Alloy | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Single Edge | -40 C | 105 ░C | 31 | Wire Wrap | Gold | |
 EDAC Inc. | Polyester Thermoplastic | 1 | 1 | 31 | Green | 0.25 Ám | 10 Áin | Single | Female | Through Hole | Floating Bobbin Top Mount Opening | 2.95 mm | 0.116 " | 3.96 mm | 0.156 in | Copper Alloy | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Single Edge | -40 C | 105 ░C | 31 | Solder | Gold | |
 EDAC Inc. | Polyester Thermoplastic | 1 | 1 | 31 | Green | 0.25 Ám | 10 Áin | Single | Female | Through Hole | 4-40 Flush Mount Threaded Insert Top Opening | 3.96 mm | 0.156 in | Copper Alloy | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Single Edge | -40 C | 105 ░C | 31 | Wire Wrap | Gold | Card Guides | ||
 EDAC Inc. | Polyester Thermoplastic | 1 | 1 | 31 | Green | 0.25 Ám | 10 Áin | Single | Female | Through Hole | Floating Bobbin Flush Mount | 2.95 mm | 0.116 " | 3.96 mm | 0.156 in | Copper Alloy | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Single Edge | -40 C | 105 ░C | 31 | Solder | Gold | |
 EDAC Inc. | Polyester Thermoplastic | 1 | 1 | 31 | Green | 0.25 Ám | 10 Áin | Single | Female | Through Hole | Side Mount Opening Unthreaded | 3.25 mm | 0.128 " | 3.96 mm | 0.156 in | Copper Alloy | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Single Edge | -40 C | 105 ░C | 31 | Wire Wrap | Gold | |
 EDAC Inc. | Polyester Thermoplastic | 1 | 1 | 31 | Green | 0.25 Ám | 10 Áin | Single | Female | Through Hole | 3.25 mm | 0.128 " | 3.96 mm | 0.156 in | Copper Alloy | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Single Edge | -40 C | 105 ░C | 31 | Wire Wrap | Gold | ||
 EDAC Inc. | Polyester Thermoplastic | 1 | 1 | 31 | Green | 0.25 Ám | 10 Áin | Single | Female | Through Hole | M3 Threaded Insert Top Mount Opening | 3.96 mm | 0.156 in | Copper Alloy | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Single Edge | -40 C | 105 ░C | 31 | Solder Eyelet(s) | Gold | |||
 EDAC Inc. | Polyester Thermoplastic | 1 | 1 | 31 | Green | 0.25 Ám | 10 Áin | Single | Female | Through Hole | Flush Mount Side Opening Unthreaded | 3.25 mm | 0.128 " | 3.96 mm | 0.156 in | Copper Alloy | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Single Edge | -40 C | 105 ░C | 31 | Solder Eyelet(s) | Gold | |
 EDAC Inc. | Polyester Thermoplastic | 1 | 1 | 31 | Green | 0.25 Ám | 10 Áin | Single | Female | Through Hole | 4-40 Threaded Insert Top Mount Opening | 3.96 mm | 0.156 in | Copper Alloy | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Single Edge | -40 C | 105 ░C | 31 | Wire Wrap | Gold | Card Guides | ||
 EDAC Inc. | Polyester Thermoplastic | 1 | 1 | 31 | Green | 0.25 Ám | 10 Áin | Single | Female | Through Hole | Flush Mount Side Opening Unthreaded | 3.25 mm | 0.128 " | 3.96 mm | 0.156 in | Copper Alloy | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Single Edge | -40 C | 105 ░C | 31 | Wire Wrap | Gold |
