3907-0 Series

Catalog

CONN PIN RCPT .015-.025 SMD

Part	Operating Temperature [Min]	Operating Temperature [Max]	Tail Type	Length - Overall	Length - Overall	Contact Material	Contact Finish	Termination	Contact Finish Thickness	Contact Finish Thickness	Socket Depth	Socket Depth	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Flange Diameter [diameter]	Flange Diameter [diameter]

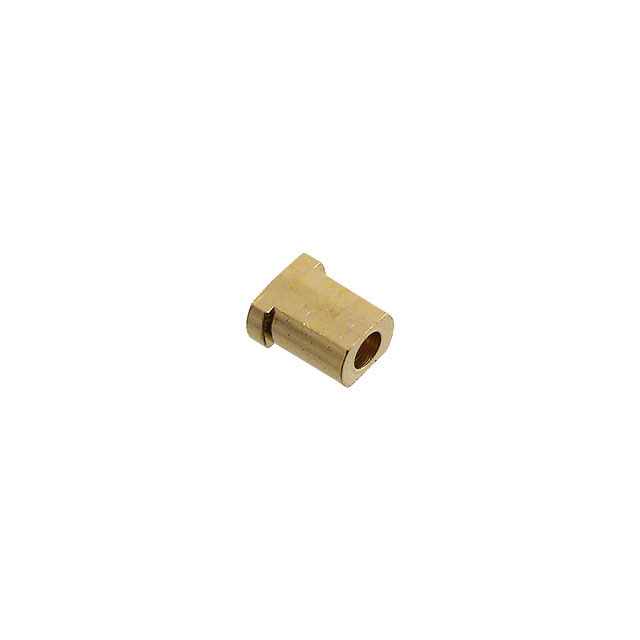

Mill-Max Manufacturing Corp. 3907-0-18-15-30-27-10-0	-55 C	125 °C	No Tail	2.92 mm	0.115 in	Beryllium Copper	Gold	Surface Mount	0.25 Ám	10 Áin	2.92 mm	0.115 in	0.64 mm	0.015 "	0.025 in	0.38 mm	2.54 mm	0.1 in
Mill-Max Manufacturing Corp. 3907-0-18-15-30-14-10-0	-55 C	125 °C	No Tail	2.92 mm	0.115 in	Beryllium Copper	Gold	Surface Mount	0.25 Ám	10 Áin	2.92 mm	0.115 in	0.64 mm	0.015 "	0.025 in	0.38 mm	2.54 mm	0.1 in
