RT6219 Series
Manufacturer: Richtek USA Inc.
Beta
⌘K

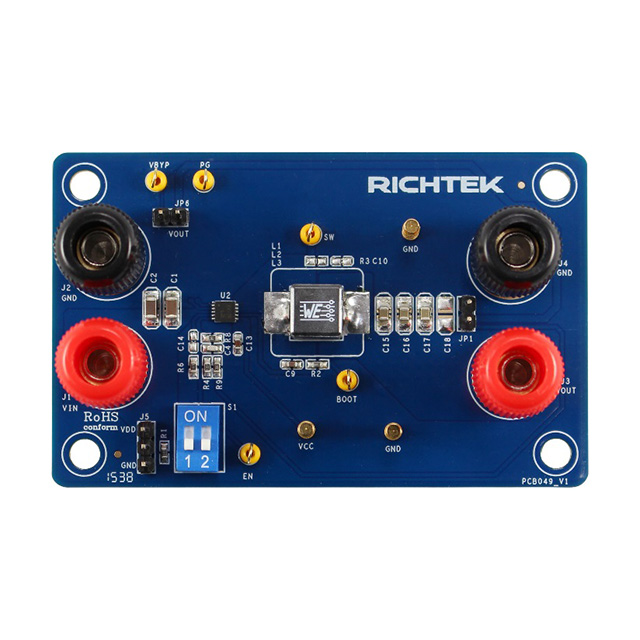

EVAL MODULE FOR RT6219AGQW
| Part | Board Type | Supplied Contents | Outputs and Type | Outputs and Type | Voltage - Output | Utilized IC / Part | Contents | Current - Output | Regulator Topology | Voltage - Input [Min] | Voltage - Input [Max] | Main Purpose | Frequency - Switching | Package / Case | Function | Topology | Mounting Type | Output Configuration | Number of Outputs | Voltage - Output (Max) [Max] | Supplier Device Package | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Output (Min/Fixed) | Output Type | Synchronous Rectifier | Voltage - Input (Max) [Max] | Voltage - Input (Min) [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Richtek USA Inc. | Fully Populated | Board(s) | 1 | 1 Non-Isolated Output Non-Isolated | 5 V | RT6219 | Board(s) | 4 A | Buck | 5 V | 23 V | DC/DC Step Down | 500 kHz | |||||||||||||||
 Richtek USA Inc. | 4 A | 500 kHz | 10-WFDFN Exposed Pad | Step-Down | Buck | Surface Mount | Positive | 1 | 5 V | 10-WDFN (3x3) | 85 C | -40 ¯C | 0.6 V | Adjustable | 23 V | 5 V |
