UB15RKG Series

Catalog

SWITCH PUSH SPDT 0.4VA 28V

Part	Mechanical Life	Electrical Life	Circuit	Voltage Rating - DC	Illumination Voltage (Nominal)	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Switch Function	Type	Illumination Type, Color	Current Rating (Amps)	Voltage Rating - AC	Actuator Type	Termination Style	Actuator Marking	Color - Actuator/Cap	Features

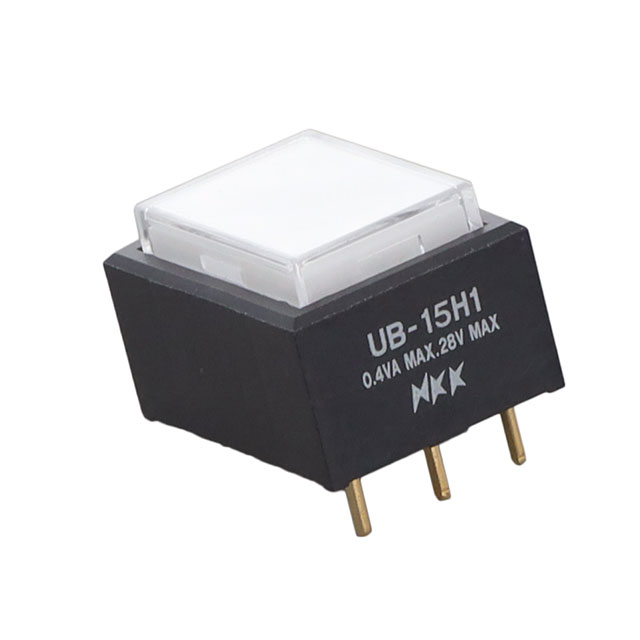

NKK Switches UB15RKG035D-JB	1000000 Cycles	200000 Cycles	SPDT	28 V	2 VDC	Through Hole	50 °C	-25 °C	On-Mom	Illuminated Standard	Amber LED	0.4 VA	28 V	Button Rectangular	PC Pin	No Marking	Clear	Process Sealed

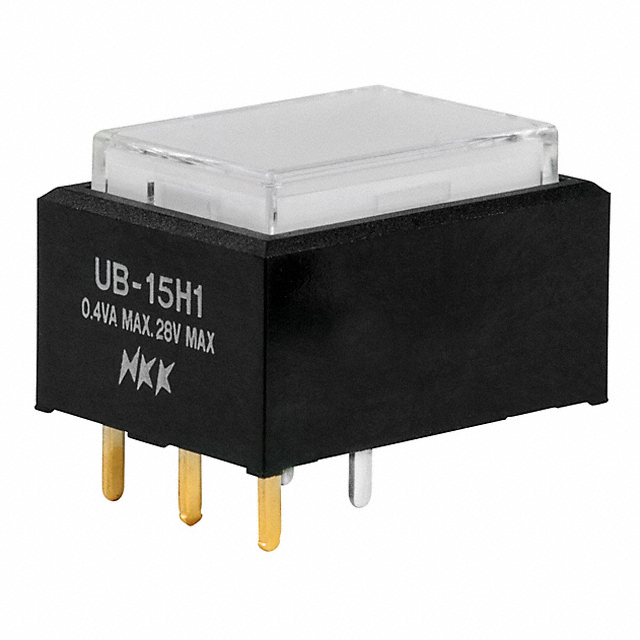

NKK Switches UB15RKG035F-JB	1000000 Cycles	200000 Cycles	SPDT	28 V	2.1 VDC	Through Hole	50 °C	-25 °C	On-Mom	Illuminated Standard	Green LED	0.4 VA	28 V	Button Rectangular	PC Pin	No Marking	Clear	Process Sealed
NKK Switches UB15RKG035F-FF	1000000 Cycles	200000 Cycles	SPDT	28 V	2.1 VDC	Through Hole	50 °C	-25 °C	On-Mom	Illuminated Standard	Green LED	0.4 VA	28 V	Button Rectangular	PC Pin	No Marking	Green	Process Sealed
NKK Switches UB15RKG035F	1000000 Cycles	200000 Cycles	SPDT	28 V	2.1 VDC	Through Hole	50 °C	-25 °C	On-Mom	Illuminated Standard	Green LED	0.4 VA	28 V	Plunger for Cap	PC Pin	No Marking		Process Sealed

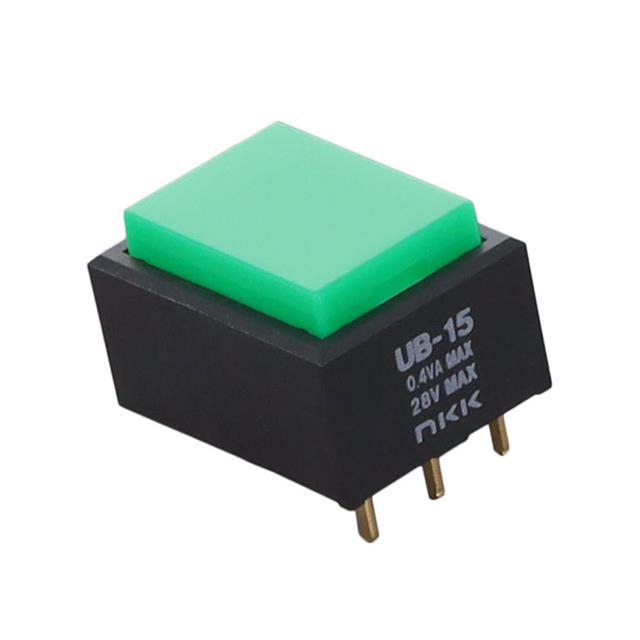

NKK Switches UB15RKG03N-F	1000000 Cycles	200000 Cycles	SPDT	28 V		Through Hole	70 °C	-20 ░C	On-Mom	Standard		0.4 VA	28 V	Button Rectangular	PC Pin	No Marking	Green	Process Sealed
NKK Switches UB15RKG035F-JF	1000000 Cycles	200000 Cycles	SPDT	28 V	2.1 VDC	Through Hole	50 °C	-25 °C	On-Mom	Illuminated Standard	Green LED	0.4 VA	28 V	Button Rectangular	PC Pin	No Marking	Clear	Process Sealed
NKK Switches UB15RKG03N-B	1000000 Cycles	200000 Cycles	SPDT	28 V		Through Hole	70 °C	-20 ░C	On-Mom	Standard		0.4 VA	28 V	Button Rectangular	PC Pin	No Marking	White	Process Sealed

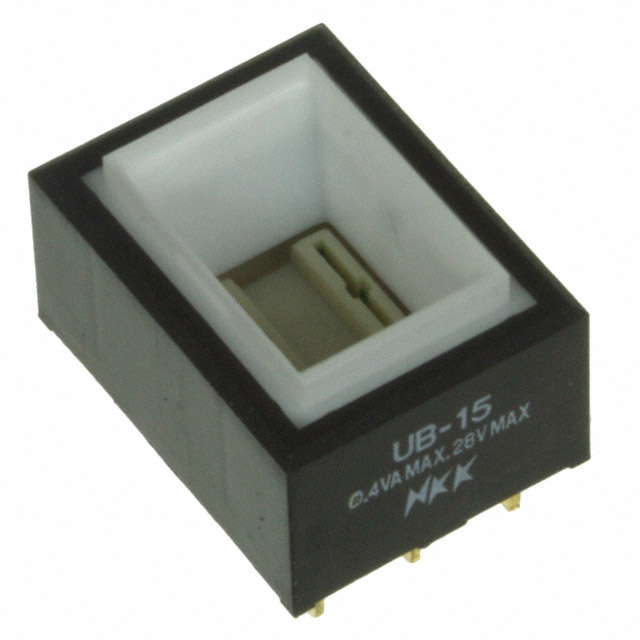

NKK Switches UB15RKG03N	1000000 Cycles	200000 Cycles	SPDT	28 V		Through Hole	70 °C	-20 ░C	On-Mom	Standard		0.4 VA	28 V	Plunger for Cap	PC Pin	No Marking		Process Sealed
