TCG101 Series
Manufacturer: Cornell Dubilier Knowles
Beta
⌘K

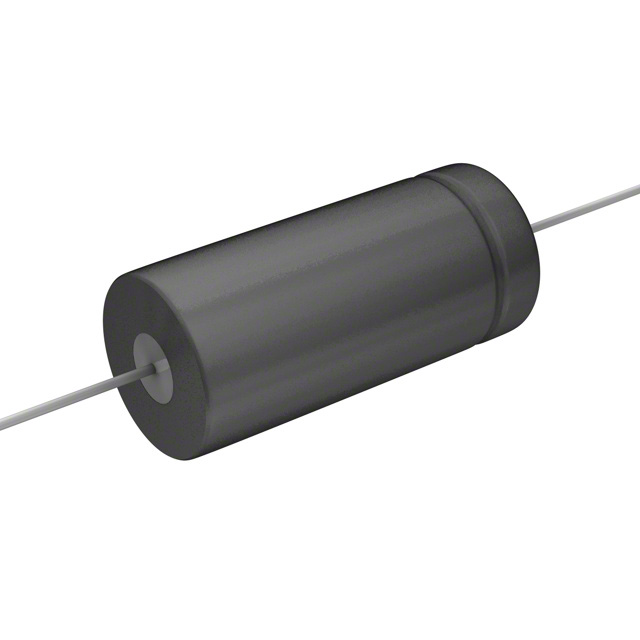

CAP ALUM 100UF 150V AXIAL TH
| Part | Tolerance [Max] | Tolerance [Min] | Mounting Type | Polarization | Ripple Current @ High Frequency | Package / Case | Capacitance | Ripple Current @ Low Frequency | Lifetime @ Temp. | Voltage - Rated | Size / Dimension [x] | Size / Dimension [diameter] | Size / Dimension [diameter] | Size / Dimension [x] | ESR (Equivalent Series Resistance) | Operating Temperature [Max] | Operating Temperature [Min] | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Cornell Dubilier Knowles | 50 % | -10 % | Through Hole | Polar | 867.68 mA | Axial Can | 100 µF | 748 mA | 1000 Hrs | 150 V | 1.625 in | 19.05 mm | 0.75 in | 41.28 mm | 696 mOhm | 85 °C | -40 C | General Purpose |
