H3DWH-10 Series

Catalog

IDC CBL - HHKR10H/AE10M/HHPL10H

Part	Pitch - Connector	Pitch - Connector	Number of Positions	Connector Type	Number of Rows [custom]	Color	Features	Pitch - Cable	Pitch - Cable	Cable Termination	Contact Finish Thickness	Contact Finish Thickness	Length [x]	Length [x]	Contact Finish	Shielding	Length	Length	Length

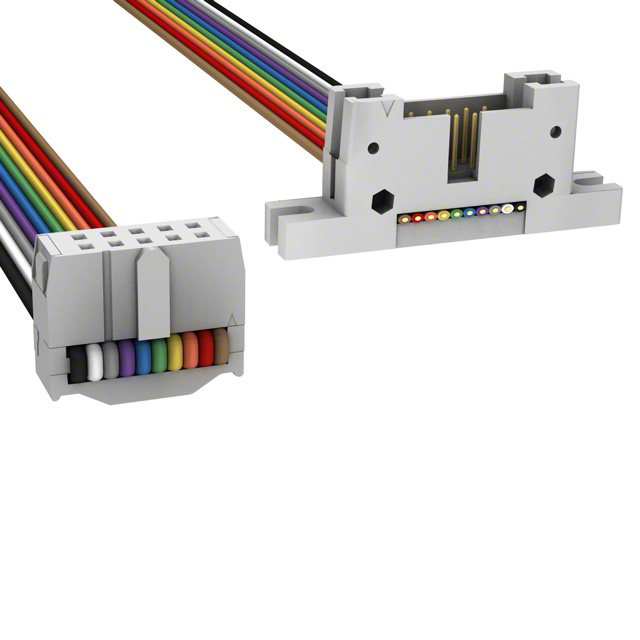

Assmann WSW Components H3DWH-1018M	0.1 in	2.54 mm	10	Socket to Plug	2	Multiple Ribbon	Flange Polarizing Key Polarizing Key (Plug) Strain Relief (Socket)	0.05 in	1.27 mm	IDC	0.38 µm	15 µin	457.2 mm	1.5 ft	Gold	Unshielded

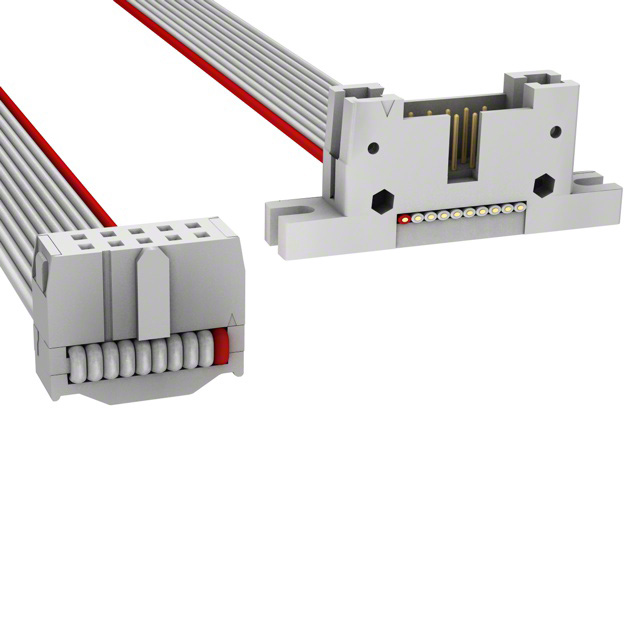

Assmann WSW Components H3DWH-1018G	0.1 in	2.54 mm	10	Socket to Plug	2		Flange Polarizing Key Polarizing Key (Plug) Strain Relief (Socket)	0.05 in	1.27 mm	IDC	0.38 µm	15 µin	457.2 mm	1.5 ft	Gold	Unshielded
Assmann WSW Components H3DWH-1006G	0.1 in	2.54 mm	10	Socket to Plug	2		Flange Polarizing Key Polarizing Key (Plug) Strain Relief (Socket)	0.05 in	1.27 mm	IDC	0.38 µm	15 µin			Gold	Unshielded	152.4 mm	0.5 '	6 "
Assmann WSW Components H3DWH-1036G	0.1 in	2.54 mm	10	Socket to Plug	2		Flange Polarizing Key Polarizing Key (Plug) Strain Relief (Socket)	0.05 in	1.27 mm	IDC	0.38 µm	15 µin			Gold	Unshielded	91.44 cm	3 ft
