CT8150 Series

Catalog

OMNIPOLAR MAGNETIC ANALOG SENSOR

Part	Supplier Device Package	Current - Supply (Max) [Max]	Function	Voltage - Supply [Min]	Voltage - Supply [Max]	Package / Case	Mounting Type	Output Type	Sensing Range	Test Condition [Max]	Test Condition [Min]	Polarization	Operating Temperature [Max]	Operating Temperature [Min]	Technology	Current - Output (Max) [Max]

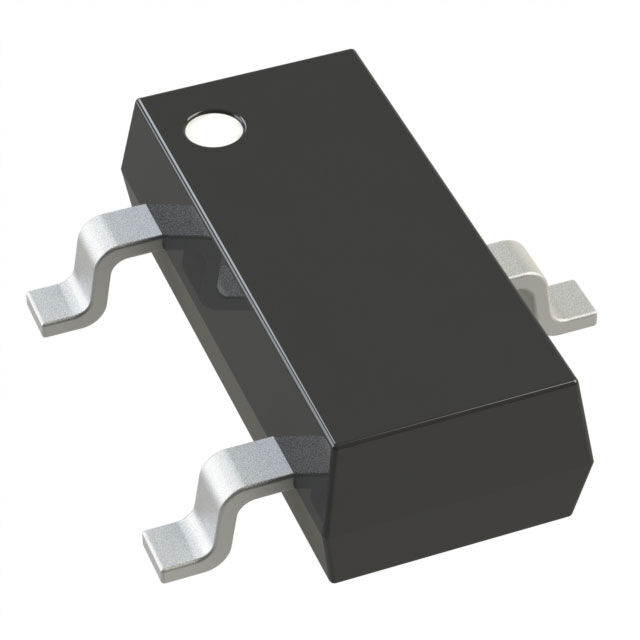

Allegro MicroSystems CT8150PC-IS3	SOT-23-3	1.3 µA	Omnipolar Switch	1.7 V	5.5 V	SC-59 SOT-23-3 TO-236-3	Surface Mount	Analog Voltage	-8 mT 8 mT	125 °C	-40 °C	North Pole South Pole	85 C	-40 ¯C	Magnetoresistive	20 mA
Allegro MicroSystems CT8150PC-IL4	4-LGA (1.45x1.45)	5 µA	Omnipolar Switch	1.7 V	5.5 V	4-XFLGA	Surface Mount	Analog Voltage	-8 mT 8 mT	125 °C	-40 °C	North Pole South Pole	85 C	-40 ¯C	Magnetoresistive	20 mA
Allegro MicroSystems CT8150PC-HS3	SOT-23-3	5 µA	Omnipolar Switch	1.7 V	5.5 V	SC-59 SOT-23-3 TO-236-3	Surface Mount	Analog Voltage	-8 mT 8 mT	125 °C	-40 °C	North Pole South Pole	125 °C	-40 °C	Magnetoresistive	20 mA
