0900-4 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

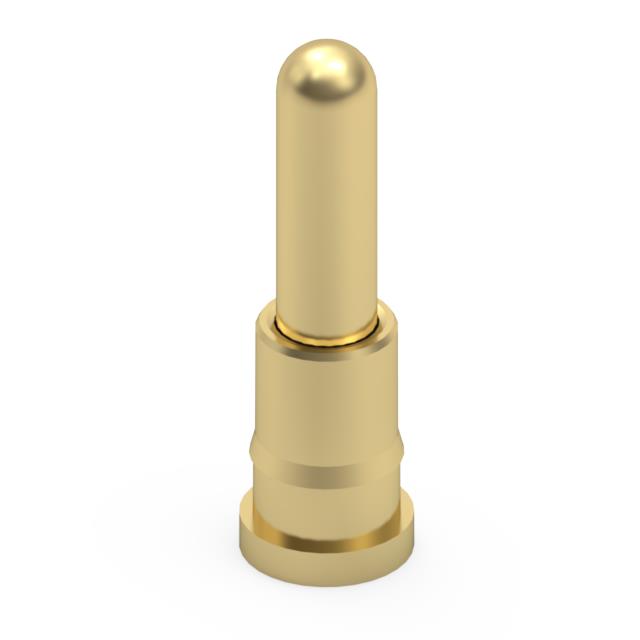

CONTACT SPRING LOADED SMD GOLD
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Contact Type | Minimum Working Height [z] | Minimum Working Height [z] | Maximum Working Height [Max] | Maximum Working Height | Contact Material | Current Rating (Amps) | Mounting Type | Pad Layout Dimension | Pad Layout Dimension | Mating Cycles | Recommended Working Height | Recommended Working Height | Plunger Size [diameter] | Plunger Size [diameter] | Operating Force - Initial | Operating Force - Mid Compression |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | -55 C | 125 °C | Gold | 20 µin | 0.51 µm | Sleeve & Plunger (Pogo Pins) | 0.181 in | 4.6 mm | 0.236 in | 6 mm | Copper Alloy | 2 A | Surface Mount | 0.072 in | 1.83 mm | 1000000 | 5.29 mm | 0.208 in | 0.042 in | 1.07 mm | ||
 Mill-Max Manufacturing Corp. | -55 C | 125 °C | Gold | 20 µin | 0.51 µm | Sleeve & Plunger (Pogo Pins) | 0.181 in | 4.6 mm | 0.236 in | 6 mm | Brass Alloy | 5.2 A | Surface Mount | 0.072 in | 1.83 mm | 1000000 | 5.29 mm | 0.208 in | 0.042 in | 1.07 mm | 10 gf | 60 gf |
