FA5S020H Series
Manufacturer: JAE Electronics
Beta
⌘K

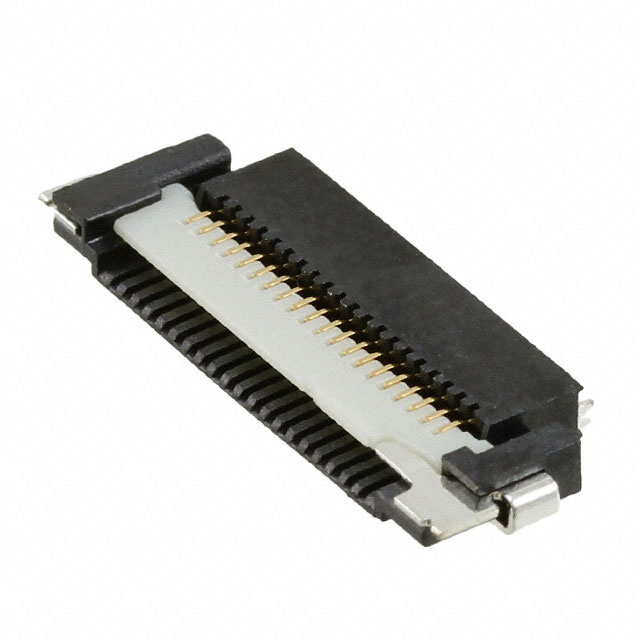

CONN FPC BOTTOM 20POS 0.5MM R/A
| Part | Actuator Color | Housing Color | Mating Cycles | Current Rating (Amps) | Housing Material | Locking Feature | Pitch | Pitch | Mounting Type | Termination | Flat Flex Type | Height Above Board [z] | Height Above Board [z] | Material Flammability Rating | Number of Positions | Features | Operating Temperature [Max] | Operating Temperature [Min] | Cable End Type | Actuator Material | Voltage Rating | Connector/Contact Type | Contact Finish | Contact Material | FFC, FCB Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JAE Electronics | White | Black | 20 | 0.8 A | Glass Filled Liquid Crystal Polymer (LCP) | Flip Lock | 0.02 " | 0.5 mm | Right Angle Surface Mount | Solder | FPC | 1.45 mm | 0.057 in | UL94 V-0 | 20 | Solder Retention Zero Insertion Force (ZIF) | 85 °C | -40 C | Tapered | Glass Filled Nylon Polyamide (PA) | 50 V | Contacts Bottom | Gold | Copper Alloy | 0.3 mm |
 JAE Electronics | White | Black | 20 | 0.8 A | Glass Filled Liquid Crystal Polymer (LCP) | Flip Lock | 0.02 " | 0.5 mm | Right Angle Surface Mount | Solder | FPC | 1.45 mm | 0.057 in | UL94 V-0 | 20 | Solder Retention Zero Insertion Force (ZIF) | 85 °C | -40 C | Tapered | Glass Filled Nylon Polyamide (PA) | 50 V | Contacts Bottom | Gold | Copper Alloy | 0.3 mm |
