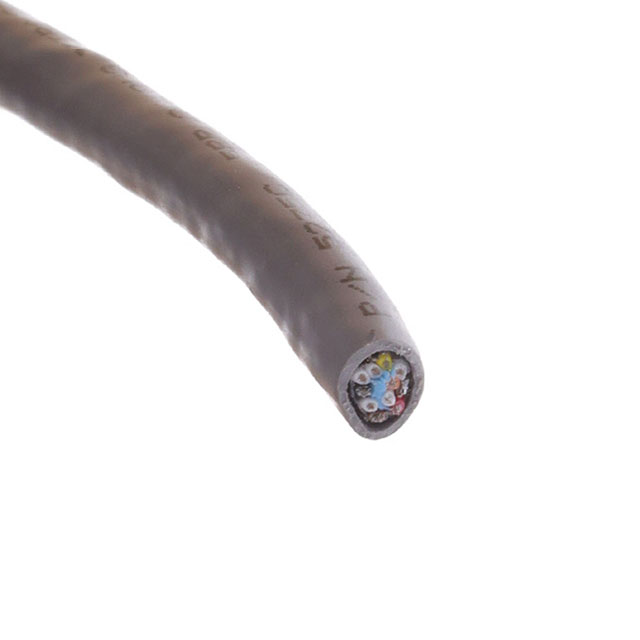

5275C Series
Manufacturer: ALPHA WIRE
Beta
⌘K
MULTI-PAIR 10COND 24AWG 100'
| Part | Shield Coverage | Shield Material | Jacket Color | Jacket (Insulation) Material | Conductor Strand [custom] | Conductor Strand [custom] | Operating Temperature [Min] | Operating Temperature [Max] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Cable Type | Voltage | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Shield Type | Conductor Insulation | Length [x] | Length [x] | Features | Number of Conductors | Wire Gauge | Ratings | Usage | Conductor Material | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 70 % 100 % | Copper Tinned Suprashield® | Slate | Poly-Vinyl Chloride (PVC) | 7 | 32 AWG | -35 °C | 105 ░C | 0.813 mm | 0.032 in | Multi-Pair | 300 VDC | 7.42 mm | 0.292 in | Braid Foil | Poly-Vinyl Chloride (PVC) | 100 ft | 30.5 m | Biological Compatibility Rip Cord | 10 | 24 AWG | ISO 10993 | Communication Control | Copper Tinned | ||
 ALPHA WIRE | 70 % 100 % | Copper Tinned Suprashield® | Slate | Poly-Vinyl Chloride (PVC) | 7 | 32 AWG | -35 °C | 105 ░C | 0.813 mm | 0.032 in | Multi-Pair | 300 VDC | 7.42 mm | 0.292 in | Braid Foil | Poly-Vinyl Chloride (PVC) | Biological Compatibility Rip Cord | 10 | 24 AWG | ISO 10993 | Communication Control | Copper Tinned | ||||
ALPHA WIRE | 70 % 100 % | Copper Tinned Suprashield® | Black | Poly-Vinyl Chloride (PVC) | 7 | 32 AWG | -35 °C | 105 ░C | 0.813 mm | 0.032 in | Multi-Pair | 300 VDC | 7.42 mm | 0.292 in | Braid Foil | Poly-Vinyl Chloride (PVC) | Biological Compatibility Rip Cord | 10 | 24 AWG | ISO 10993 | Communication Control | Copper Tinned | 304.8 m | 1000 ft | ||
 ALPHA WIRE | 70 % 100 % | Copper Tinned Suprashield® | Slate | Poly-Vinyl Chloride (PVC) | 7 | 32 AWG | -35 °C | 105 ░C | 0.813 mm | 0.032 in | Multi-Pair | 300 VDC | 7.42 mm | 0.292 in | Braid Foil | Poly-Vinyl Chloride (PVC) | Biological Compatibility Rip Cord | 10 | 24 AWG | ISO 10993 | Communication Control | Copper Tinned | 152.4 m | 500 ft | ||
ALPHA WIRE | 70 % 100 % | Copper Tinned Suprashield® | Slate | Poly-Vinyl Chloride (PVC) | 7 | 32 AWG | -35 °C | 105 ░C | 0.813 mm | 0.032 in | Multi-Pair | 300 VDC | 7.42 mm | 0.292 in | Braid Foil | Poly-Vinyl Chloride (PVC) | Biological Compatibility Rip Cord | 10 | 24 AWG | ISO 10993 | Communication Control | Copper Tinned | 304.8 m | 1000 ft |
