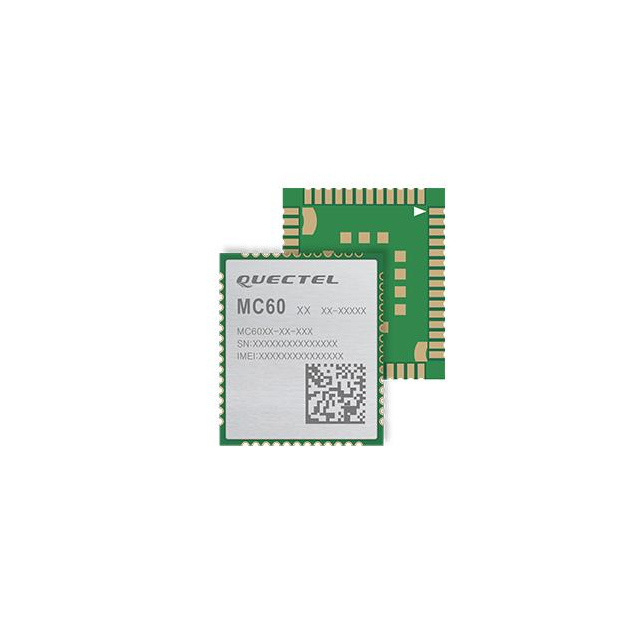

MC60 Series
Manufacturer: Quectel
Beta
⌘K
RF TXRX MOD CELL NAV SMD
| Part | Sensitivity | RF Family/Standard | Voltage - Supply [Min] | Voltage - Supply [Max] | Serial Interfaces | Current - Receiving | Package / Case | Data Rate | Mounting Type | Protocol | Operating Temperature [Max] | Operating Temperature [Min] | Frequency | Utilized IC / Part | Antenna Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Quectel | -167 dBm | Cellular Navigation | 3.3 V | 4.6 V | ADC GPIO PCM UART | 1.2 mA | Module | 85.6 kbps | Surface Mount | BeiDou Galileo GLONASS GNSS GPRS GPS GSM | 75 ░C | -35 °C | 1.561 GHz 1.575 GHz 1.602 GHz 1.8 GHz 1.9 GHz 850 MHz 900 MHz | MT2503DV/B | Antenna Not Included |
Quectel | -167 dBm | Cellular Navigation | 3.3 V | 4.6 V | ADC GPIO PCM UART | 1.2 mA | Module | 85.6 kbps | Surface Mount | BeiDou Galileo GLONASS GNSS GPRS GPS GSM | 75 ░C | -35 °C | 1.561 GHz 1.575 GHz 1.602 GHz 1.8 GHz 1.9 GHz 850 MHz 900 MHz | MT2503DV/E | Antenna Not Included |
