TPS78233 Series
Manufacturer: Texas Instruments
Beta
⌘K

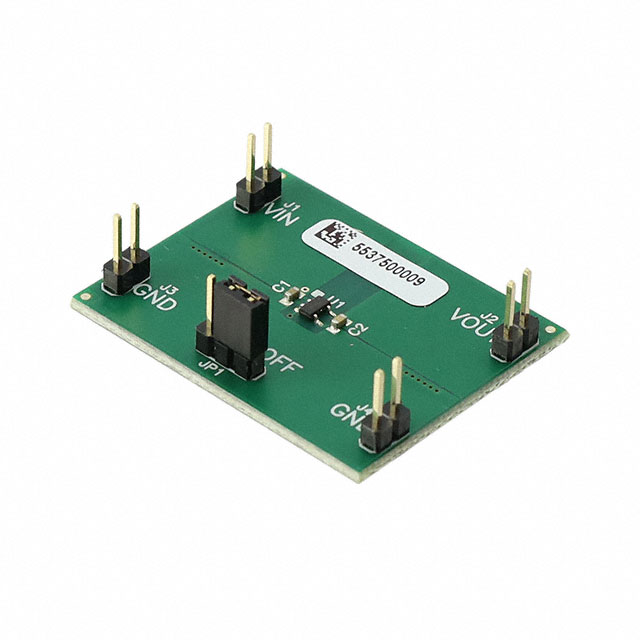

TPS78233 LINEAR REGULATOR EVALUATION BOARD
| Part | Board Type | Supplied Contents | Voltage - Output | Regulator Type | Channels per IC | Voltage - Input [Min] | Voltage - Input [Max] | Utilized IC / Part | Current - Output | Voltage - Input (Max) [Max] | Current - Supply (Max) [Max] | Mounting Type | Output Type | Protection Features | Supplier Device Package | Package / Case | Number of Regulators | Control Features | Voltage Dropout (Max) [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Current - Quiescent (Iq) | Voltage - Output (Min/Fixed) | Output Configuration | PSRR [Min] | PSRR [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | Fully Populated | Board(s) | 3.3 V | Positive Fixed | 1 - Single | 2.2 V | 5.5 V | TPS78233 | 150 mA | |||||||||||||||||
 Texas Instruments | 150 mA | 5.5 V | 8 µA | Surface Mount | 1.81 mOhm | Over Current Over Temperature Reverse Polarity | SOT-23-THIN | SOT-23-5 Thin TSOT-23-5 | 1 | Enable | 0.25 V | 125 °C | -40 °C | 1.3 µA | 3.3 V | Positive | 15 dB | 40 dB |
