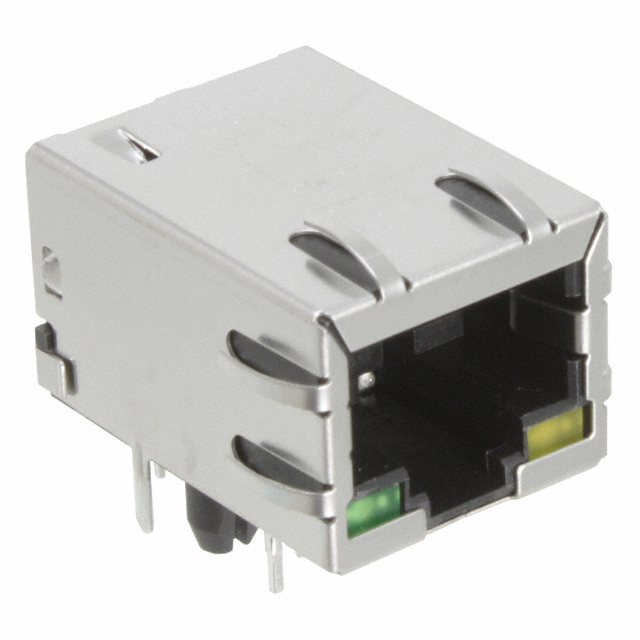

RB1-125 Series
Manufacturer: WIZnet
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K
CONN JACK 1PORT 100 BASE-T PCB
| Part | Height Above Board | Contact Finish | Connector Type | Termination | Features | Contact Material | Number of Ports | LED Color | Orientation Angle | Orientation Direction | Tab Direction | Operating Temperature (Max) | Operating Temperature (Min) | Shielding | Number of Cores per Jack | Applications | Number of Rows | Mounting Type | Shield Material | Housing Material | Contact Finish Thickness | Contact Finish Thickness (string set options) | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 WIZnet | 0.525 in | Gold | RJ45 | Solder | Board Lock | Phosphor Bronze | 1 | Green - Yellow | 90 ° | Right | Down | 70 °C | 0 °C | EMI Finger Shielded | 4 | 10/100 Base-T AutoMDIX | 1 | Through Hole | Stainless Steel | Thermoplastic | 0 | Flash | Flash |
