D01-997 Series

Catalog

IC & COMPONENT SOCKET, 9 CONTACTS, SIP SOCKET, 2.54 MM, D01 SERIES, BERYLLIUM COPPER

Part	Termination Post Length	Termination Post Length	Material Flammability Rating	Contact Resistance	Current Rating (Amps)	Mounting Type	Contact Material - Post [custom]	Contact Finish Thickness - Mating	Housing Material	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Operating Temperature [Min]	Operating Temperature [Max]	Pitch - Post	Pitch - Post	Number of Positions or Pins (Grid)	Type	Pitch - Mating	Pitch - Mating	Contact Finish - Mating	Contact Material - Mating	Termination	Contact Finish - Post	Number of Positions or Pins (Grid) [x]	Number of Positions or Pins (Grid) [y]	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]

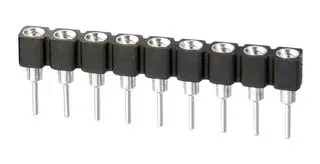

Harwin Inc. D01-9970942	0.125 in	3.18 mm	UL94 V-0	10 mOhm	1 A	Through Hole	Brass	Flash	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	5 µm	196.9 µin	-55 C	125 °C	0.1 in	2.54 mm	9	SIP	0.1 "	2.54 mm	Gold	Beryllium Copper	Solder	Tin
Harwin Inc. D01-9971042	0.125 in	3.18 mm	UL94 V-0	10 mOhm	1 A	Through Hole	Brass	Flash	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	5 µm	196.9 µin	-55 C	125 °C	0.1 in	2.54 mm	10	SIP	0.1 "	2.54 mm	Gold	Beryllium Copper	Solder	Tin	1	10

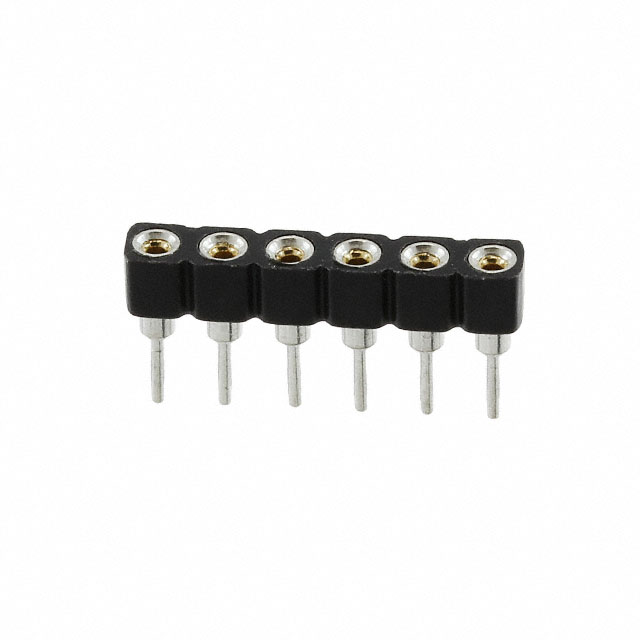

Harwin Inc. D01-9970642	0.125 in	3.18 mm	UL94 V-0	10 mOhm	1 A	Through Hole	Brass	Flash	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	5 µm	196.9 µin	-55 C	125 °C	0.1 in	2.54 mm		SIP	0.1 "	2.54 mm	Gold	Beryllium Copper	Solder	Tin
Harwin Inc. D01-9971142	0.125 in	3.18 mm	UL94 V-0	10 mOhm	1 A	Through Hole	Brass	Flash	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	5 µm	196.9 µin	-55 C	125 °C	0.1 in	2.54 mm	11	SIP	0.1 "	2.54 mm	Gold	Beryllium Copper	Solder	Tin			1	11
Harwin Inc. D01-9971242	0.125 in	3.18 mm	UL94 V-0	10 mOhm	1 A	Through Hole	Brass	Flash	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	5 µm	196.9 µin	-55 C	125 °C	0.1 in	2.54 mm		SIP	0.1 "	2.54 mm	Gold	Beryllium Copper	Solder	Tin	1	12			12

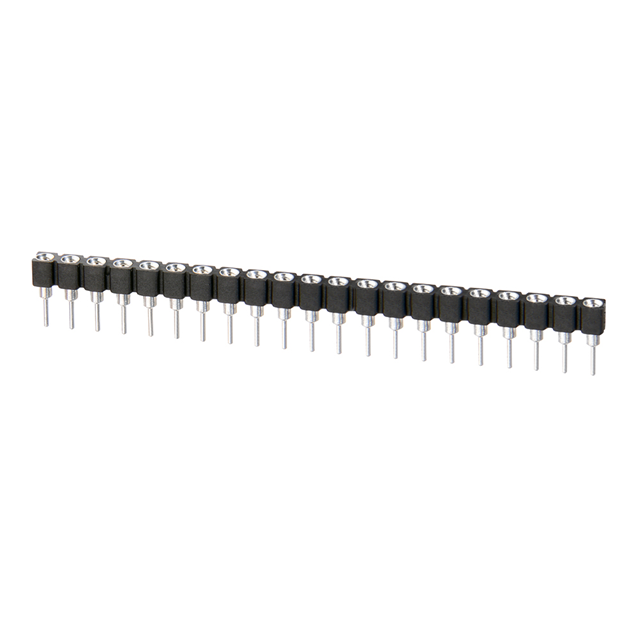

Harwin Inc. D01-9972142	0.125 in	3.18 mm	UL94 V-0	10 mOhm	1 A	Through Hole	Brass	Flash	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	5 µm	196.9 µin	-55 C	125 °C	0.1 in	2.54 mm	21	SIP	0.1 "	2.54 mm	Gold	Beryllium Copper	Solder	Tin

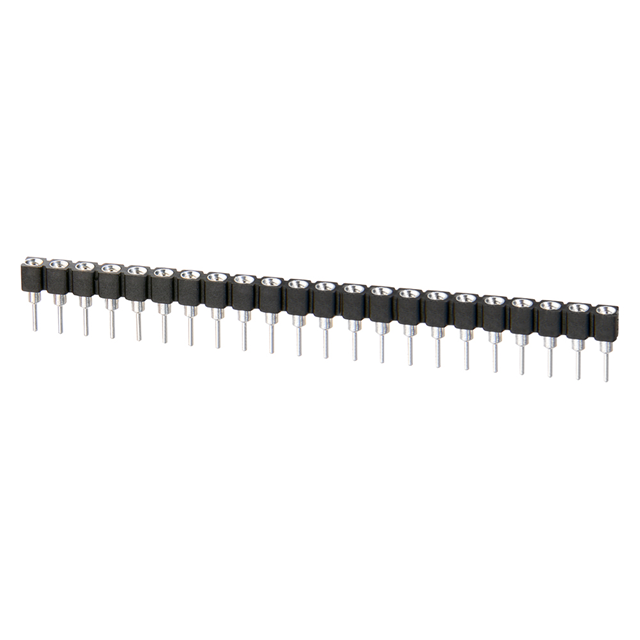

Harwin Inc. D01-9972242	0.125 in	3.18 mm	UL94 V-0	10 mOhm	1 A	Through Hole	Brass	Flash	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	5 µm	196.9 µin	-55 C	125 °C	0.1 in	2.54 mm	22	SIP	0.1 "	2.54 mm	Gold	Beryllium Copper	Solder	Tin

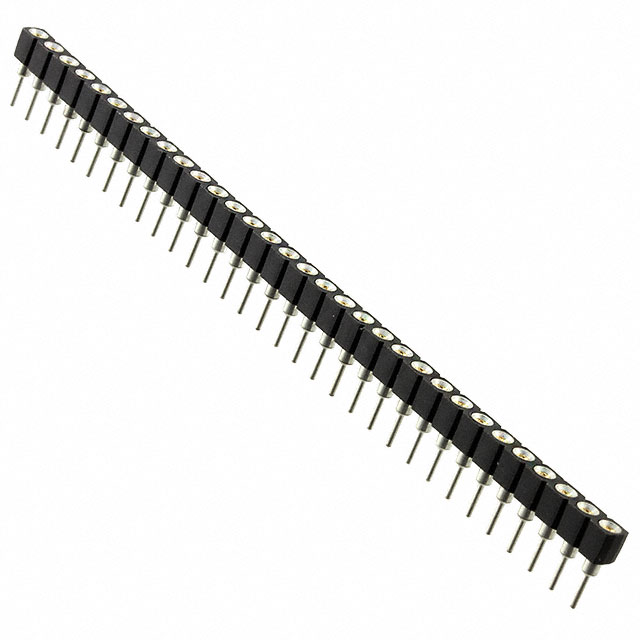

Harwin Inc. D01-9973242	0.125 in	3.18 mm	UL94 V-0	10 mOhm	1 A	Through Hole	Brass	Flash	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	5 µm	196.9 µin	-55 C	125 °C	0.1 in	2.54 mm	32	SIP	0.1 "	2.54 mm	Gold	Beryllium Copper	Solder	Tin						1 x 32

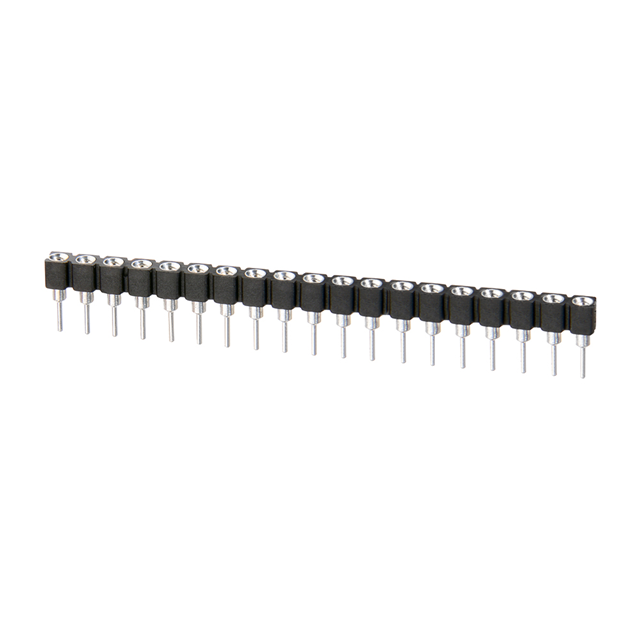

Harwin Inc. D01-9971942	0.125 in	3.18 mm	UL94 V-0	10 mOhm	1 A	Through Hole	Brass	Flash	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	5 µm	196.9 µin	-55 C	125 °C	0.1 in	2.54 mm	19	SIP	0.1 "	2.54 mm	Gold	Beryllium Copper	Solder	Tin

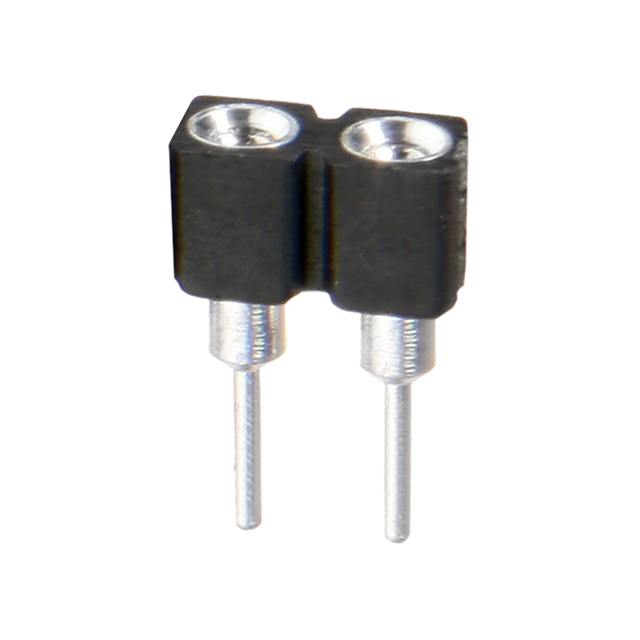

Harwin Inc. D01-9970242	0.125 in	3.18 mm	UL94 V-0	10 mOhm	1 A	Threaded	Brass	Flash	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	5 µm	196.9 µin	-55 C	125 °C	0.1 in	2.54 mm	2	SIP	0.1 "	2.54 mm	Gold	Beryllium Copper	Solder	Tin							1 x 2
